EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM1416-03CPDATA LINE FILTER, 2 FUNCTION(S) |
2,000 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

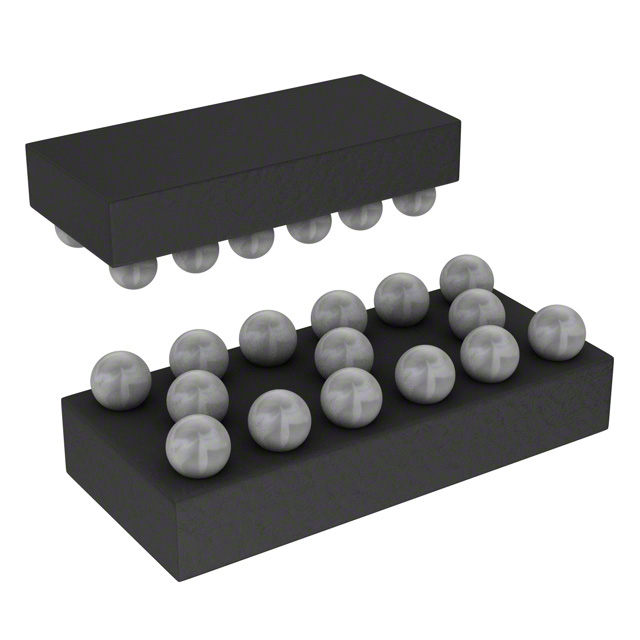

PCMF3HDMI14SZCMC |
4,500 |
|
- |
PCMFXHDMI14S | 15-UFBGA, WLCSP | Bulk | Active | Low Pass | 2nd | LC | 3 | 6GHz (Cutoff) | 0.3dB @ 1MHz | 3 | - | R = 3Ohm, C = 0.25pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.093" L x 0.046" W (2.37mm x 1.17mm) | 0.024" (0.60mm) |
 Exposed Pad.jpg)
|
NUF8410MNT4GFILTER RC(PI) 100 OHM/8.5PF SMD |
596 |
|
- |
- | 16-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 8 | 250MHz (Cutoff) | -20dB @ 800MHz ~ 3GHz | 100 | - | R = 100Ohms, C = 8.5pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.039" (1.00mm) |
|
PMR209MC6100M220R30FILTER RC 220 OHM/0.1UF TH |
99 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 220 | - | R = 220Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
P409EL474M275AH221FILTER RC 220 OHM/0.47UF TH |
77 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 220 | - | R = 220Ohms, C = 0.47µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) |
|
|
P409CP224M275AH220FILTER RC 22 OHM/0.22UF TH |
48 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 22 | - | R = 22Ohms, C = 0.22µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) |
|
|
P409EL474M275AH151FILTER RC 150 OHM/0.47UF TH |
58 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 150 | - | R = 150Ohms, C = 0.47µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) |
|
EMIF04-1K030F3FILTER RC(PI) 1KOHM/24PF ESD SMD |
355 |
|
- |
IPAD™ | 9-WFBGA, FCBGA | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | - | - | 1k | - | R = 1kOhm, C = 24pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.046" L x 0.046" W (1.17mm x 1.17mm) | 0.028" (0.70mm) |
|
EMIF06-USD14F3FILTER RC(PI) 40 OHM/7.5PF SMD |
669 |
|
- |
IPAD™ | 15-UFBGA, FCBGA | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | - | - | 40 | - | R = 40Ohms, C = 7.5pF | Yes | -30°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.061" L x 0.061" W (1.54mm x 1.54mm) | 0.217" (5.50mm) |
|
EMIF02-USB03F2FILTER RC(PI) 33 OHM/20PF SMD |
495 |
|
- |
IPAD™ | 11-WFBGA, FCBGA | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | - | - | 33 | - | R = 33Ohms, C = 20pF | Yes | -40°C ~ 85°C | USB | - | - | - | Surface Mount | 0.076" L x 0.057" W (1.94mm x 1.44mm) | 0.028" (0.70mm) |
|
CM1451-06CPFILTER LC(PI) 34NH/28.5PF SMD |
288 |
|
- |
- | 15-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 5th | LC (Pi) | 6 | 260MHz (Cutoff) | 35dB @ 800MHz ~ 2.7GHz | 18 | 30 mA | L = 34nH (Total), C = 28.5pF (Total) | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.119" L x 0.054" W (3.01mm x 1.38mm) | 0.028" (0.70mm) |
|
EMIF02-MIC07F3FILTER RC ESD SMD |
81 |
|
- |
EMIF | 8-WFBGA, FCBGA | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | RC | 2 | - | - | 25, 2.2k | - | R = 25Ohms, 2.2kOhms, C = 830pF, 1250pF | Yes | -40°C ~ 85°C | Audio | - | - | - | Surface Mount | 0.046" L x 0.046" W (1.17mm x 1.17mm) | 0.026" (0.65mm) |
|
|
PMR209MC6220M220R30FILTER RC 220 OHM/0.22UF TH |
23 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 220 | - | R = 220Ohms, C = 0.22µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
FLLDU200A945I0FILTER LC (PI) 4.7UF |
0 |
|
- |
FLLDU | Axial - Threaded Terminals | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 100dB @ 100MHz ~ 1GHz | - | 200 A | C = 4.7µF | No | -40°C ~ 85°C | General Purpose | 350V | - | - | Bolt Mount | 2.165" Dia x 4.606" L (55.00mm x 117.00mm) | - |
|
P410CP683M300AH101FILTER RC 100 OHM/68UF TH |
0 |
|
- |
P410 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 68nF | No | -40°C ~ 85°C | General Purpose | 300VAC | - | - | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) |
|
|
P409EL474M275AH101FILTER RC 100 OHM/0.47UF TH |
0 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.47µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) |
|
SP6150-01HTGTVS DIODE ARRAY EMI 5V SOT23-3L |
0 |
|
- |
SP6150 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 1 | 60MHz (Cutoff) | - | - | 10 mA | - | Yes | -40°C ~ 125°C | General Purpose | - | - | - | Surface Mount | 0.115" L x 0.051" W (2.92mm x 1.30mm) | - |
|
IP4264CZ8-20,118FILTER RC(PI) ESD SMD |
0 |
|
- |
- | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 3 | - | 45dB @ 800MHz ~ 6GHz | 47, 100 | - | R = 47Ohms, 100Ohms, C = 11pF (Total) | Yes | -35°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.067" L x 0.053" W (1.70mm x 1.35mm) | 0.020" (0.50mm) |
|
|
IP4264CZ8-40,118FILTER RC(PI) ESD SMD |
0 |
|
- |
- | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 3 | - | 50dB @ 800MHz ~ 6GHz | 47, 100 | - | R = 47Ohms, 100Ohms, C = 23pF (Total) | Yes | -35°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.067" L x 0.053" W (1.70mm x 1.35mm) | 0.020" (0.50mm) |
.jpg)
|
CM6305FILTER RC(PI) ESD SMD |
0 |
|
- |
- | 8-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 3 | - | - | 47, 100 | - | R = 47Ohms, 100Ohms, C = 10pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.046" L x 0.046" W (1.16mm x 1.16mm) | 0.025" (0.64mm) |
