Microprocessors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Core Processor | Number of Cores/Bus Width | Speed | Co-Processors/DSP | RAM Controllers | Graphics Acceleration | Display & Interface Controllers | Ethernet | SATA | USB | Voltage - I/O | Operating Temperature | Grade | Qualification | Security Features | Mounting Type | Supplier Device Package | Additional Interfaces |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T1023NSE7MQAIC MPU QORIQ T1 1.2GHZ 525FCPBGA |
0 |
|
Datasheet | 525-FBGA, FCBGA | QorIQ T1 | Tray | Active | PowerPC e5500 | 2 Core, 64-Bit | 1.2GHz | - | DDR3L, DDR4 | No | - | GbE (8) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | 0°C ~ 105°C (TA) | - | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Surface Mount | 525-FCPBGA (19x19) | I2C, MMC/SD, PCIe, SPI, UART |
|
|
KC80526LY400128IC MPU MOBIL PENT 400MHZ 495BGA |
15,264 |
|
Datasheet | 495-BGA | Mobile Pentium III | Bulk | Active | Mobile Intel® Celeron® | 1 Core, 32-Bit | 400MHz | - | - | - | - | - | - | - | 1.35V | - | - | - | - | Surface Mount | 495-BGA (31x27) | - |
|
|
RJ80530VY650256IC MPU INTEL CEL 650MHZ 479BGA |
94 |
|
Datasheet | 479-BBGA, FCBGA | Intel® Celeron® | Bulk | Active | Mobile Intel® Celeron® | 1 Core, 32-Bit | 650MHz | - | - | - | - | - | - | - | 1.1V | 100°C (TJ) | - | - | - | Surface Mount | 479-FCBGA (35x35) | - |
|

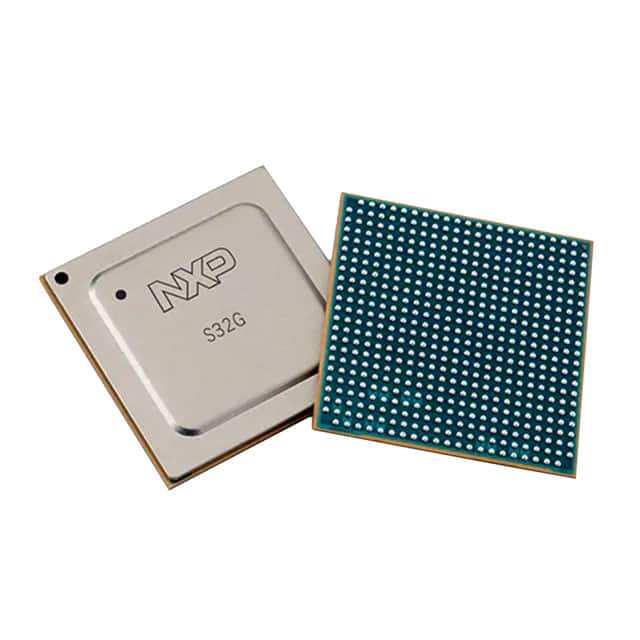

S32G274AABK0VUCTIC MPU 400MHZ/1GHZ 525FCPBGA |
0 |
|
Datasheet | 525-FBGA, FCBGA | - | Tray | Obsolete | ARM® Cortex®-A53, ARM® Cortex®-M7 | 4 Core, 64-Bit/3 Core, 32-Bit | 400MHz, 1GHz | - | DDR3L SDRAM, LPDDR4 DRAM | - | - | MII, RGMII, RMII, SGMII | - | USB OTG (1) | - | -40°C ~ 105°C (TA) | - | - | HSE-H | Surface Mount | 525-FCPBGA (19x19) | CAN, FlexRay, I2C, SPI, UART |
|
|
MPC8343EVRAGDBIC MPU MPC83XX 400MHZ 620HBGA |
0 |
|
- |
620-BBGA Exposed Pad | MPC83xx | Tray | Active | PowerPC e300 | 1 Core, 32-Bit | 400MHz | Security; SEC | DDR, DDR2 | No | - | 10/100/1000Mbps (3) | - | USB 2.0 + PHY (2) | 1.8V, 2.5V, 3.3V | 0°C ~ 105°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 620-HBGA (29x29) | DUART, I2C, PCI, SPI |
|
LS1023AXE7MQAIC MPU QORIQ 1.2GHZ 621FCPBGA |
0 |
|
Datasheet | 621-FBGA, FCBGA | QorIQ® Layerscape | Tray | Active | ARM® Cortex®-A53 | 2 Core, 64-Bit | 1.2GHz | - | DDR3L, DDR4 | - | - | 1GbE (7) or 10GbE (1) & 1GbE (5) | SATA 6Gbps (1) | USB 3.0 (2) + PHY | - | -40°C ~ 105°C | - | - | Secure Boot, TrustZone® | Surface Mount | 621-FCPBGA (21x21) | - |
|
|
LS1043ASN7PQBIC MPU QORIQ 1.4GHZ 621FCPBGA |
58 |
|
Datasheet | 621-FBGA, FCBGA | QorIQ® Layerscape | Tray | Active | ARM® Cortex®-A53 | 4 Core, 64-Bit | 1.4GHz | - | DDR3L, DDR4 | - | - | 1GbE (7) or 10GbE (1) & 1GbE (5) | SATA 6Gbps (1) | USB 3.0 (3) + PHY | - | 0°C ~ 105°C | - | - | Secure Boot, TrustZone® | Surface Mount | 621-FCPBGA (21x21) | - |
|
MCIMX6D4AVT08ADRIC MPU I.MX6D 852MHZ 624FCBGA |
68 |
|
Datasheet | 624-FBGA, FCBGA | i.MX6D | Tape & Reel (TR) | Not For New Designs | ARM® Cortex®-A9 | 2 Core, 32-Bit | 852MHz | Multimedia; NEON™ SIMD | LPDDR2, LVDDR3, DDR3 | Yes | Keypad, LCD | 10/100/1000Mbps (1) | SATA 3Gbps (1) | USB 2.0 + PHY (4) | 1.8V, 2.5V, 2.8V, 3.3V | -40°C ~ 125°C (TJ) | - | - | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection | Surface Mount | 624-FCBGA (21x21) | CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
|
|
MCIMX6Q4AVT10ACIC MPU I.MX6 1GHZ 624FCBGA |
184 |
|
Datasheet | 624-FBGA, FCBGA | i.MX6 | Bulk | Obsolete | ARM® Cortex®-A9 | 4 Core, 32-Bit | 1GHz | Multimedia; NEON™ SIMD | DDR3, DDR3L, LPDDR2 | Yes | HDMI, Keypad, LCD, LVDS, MIPI/CSI, MIPI/DSI | 10/100/1000Mbps (1) | SATA 3Gbps (1) | USB 2.0 + PHY (3), USB 2.0 OTG + PHY (1) | 1.8V, 2.5V, 2.8V, 3.3V | -40°C ~ 125°C (TJ) | - | - | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection | Surface Mount | 624-FCBGA (21x21) | CANbus, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
|
SCP2207VMUIC MPU 236MAPBGA |
36 |
|
Datasheet | 236-LFBGA | - | Tray | Active | ARM926EJ-S | 1 Core, 32-Bit | - | - | DDR, SDRAM | No | LCD | - | - | USB 2.0 OTG (1) | 1.8V, 2.5V, 3.3V | -40°C ~ 105°C (TA) | - | - | Cryptography | Surface Mount | 236-MAPBGA (9x9) | AC’97, I2C, I2S, SPI, UART |
|
|
MCIMX6QP6AVT8ABIC MPU I.MX6QP 852MHZ 624FCBGA |
0 |
|
Datasheet | 624-FBGA, FCBGA | i.MX6QP | Tray | Active | ARM® Cortex®-A9 | 4 Core, 32-Bit | 852MHz | Multimedia; NEON™ SIMD | LPDDR2, DDR3L, DDR3 | Yes | HDMI, Keypad, LCD, LVDS, MIPI/DSI, Parallel | 10/100/1000Mbps (1) | SATA 3Gbps (1) | USB 2.0 + PHY (3), USB 2.0 OTG + PHY (1) | 1.8V, 2.5V, 2.8V, 3.3V | -40°C ~ 125°C (TJ) | - | - | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS | Surface Mount | 624-FCBGA (21x21) | CAN, EBI/EMI, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, S/PDIF, UART |
|
MPC8377EVRAGDAIC MPU MPC83XX 400MHZ PBGA689 |
27 |
|
Datasheet | 689-BBGA Exposed Pad | MPC83xx | Tray | Obsolete | PowerPC e300c4s | 1 Core, 32-Bit | 400MHz | Security; SEC 3.0 | DDR, DDR2 | No | - | 10/100/1000Mbps (2) | SATA 3Gbps (2) | USB 2.0 + PHY (1) | 1.8V, 2.5V, 3.3V | 0°C ~ 125°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 689-TEPBGA II (31x31) | DUART, I2C, MMC/SD, PCI, SPI |
|
MPC859TVR133AIC MPU MPC8XX 133MHZ 357BGA |
88 |
|
Datasheet | 357-BBGA | MPC8xx | Tray | Obsolete | MPC8xx | 1 Core, 32-Bit | 133MHz | Communications; CPM | DRAM | No | - | 10Mbps (1), 10/100Mbps (1) | - | - | 3.3V | 0°C ~ 95°C (TA) | - | - | - | Surface Mount | 357-PBGA (25x25) | HDLC/SDLC, I2C, IrDA, PCMCIA, SPI, TDM, UART/USART |
|
|
LS1043ASE7PQBIC MPU QORIQ 1.4GHZ 621FCPBGA |
56 |
|
Datasheet | 621-FBGA, FCBGA | QorIQ® Layerscape | Tray | Active | ARM® Cortex®-A53 | 4 Core, 64-Bit | 1.4GHz | - | DDR3L, DDR4 | - | - | 1GbE (7) or 10GbE (1) & 1GbE (5) | SATA 6Gbps (1) | USB 3.0 (3) + PHY | - | 0°C ~ 105°C | - | - | Secure Boot, TrustZone® | Surface Mount | 621-FCPBGA (21x21) | - |
|
OMAP3530DZCBBIC MPU OMAP-35XX 600MHZ 515FCBGA |
0 |
|
Datasheet | 515-VFBGA, FCBGA | OMAP-35xx | Tray | Obsolete | ARM® Cortex®-A8 | 1 Core, 32-Bit | 600MHz | Signal Processing; C64x+, Multimedia; NEON™ SIMD | LPDDR | Yes | LCD | - | - | USB 1.x (3), USB 2.0 (1) | 1.8V, 3.0V | 0°C ~ 90°C (TJ) | - | - | - | Surface Mount | 515-POP-FCBGA (12x12) | HDQ/1-Wire, I2C, McBSP, McSPI, MMC/SD/SDIO, UART |
|
|
P1022NSE2HFBIC MPU QORIQ P1 1.055GHZ PBGA689 |
0 |
|
Datasheet | 689-BBGA Exposed Pad | QorIQ P1 | Bulk | Obsolete | PowerPC e500v2 | 2 Core, 32-Bit | 1.055GHz | Security; SEC | DDR2, DDR3 | No | LCD | 10/100/1000Mbps (2) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | 0°C ~ 105°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 689-TEPBGA II (31x31) | DUART, I2C, I2S, MMC/SD, SPI |
|
|
KC80526GY6504JYRISC MPU, 32-BIT, 600MHZ |
5,005 |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LS1026AXE8Q1AIC MPU QORIQ 1.6GHZ 780FCPBGA |
0 |
|
Datasheet | 780-FBGA, FCBGA | QorIQ® Layerscape | Tray | Active | ARM® Cortex®-A72 | 2 Core, 64-Bit | 1.6GHz | - | DDR4 | - | - | 10GbE (2), 2.5GbE (1), 1GbE (4) | SATA 6Gbps (1) | USB 3.0 (3) + PHY | - | -40°C ~ 105°C | - | - | Secure Boot, TrustZone® | Surface Mount | 780-FCPBGA (23x23) | - |
|
|
LS1043ASN8KQBIC MPU QORIQ 1.0GHZ 780FCPBGA |
55 |
|
Datasheet | 780-FBGA, FCBGA | QorIQ® Layerscape | Tray | Active | ARM® Cortex®-A53 | 4 Core, 64-Bit | 1.0GHz | - | DDR3L, DDR4 | - | - | 1GbE (7) or 10GbE (1) & 1GbE (5) | SATA 6Gbps (1) | USB 3.0 (3) + PHY | - | 0°C ~ 105°C | - | - | Secure Boot, TrustZone® | Surface Mount | 780-FCPBGA (23x23) | - |
|
MC68302AG33CIC MPU M683XX 33MHZ 144LQFP |
66 |
|
Datasheet | 144-LQFP | M683xx | Tray | Obsolete | M68000 | 1 Core, 8/16-Bit | 33MHz | Communications; RISC CPM | DRAM | No | - | - | - | - | 5.0V | 0°C ~ 70°C (TA) | - | - | - | Surface Mount | 144-LQFP (20x20) | GCI, IDL, ISDN, NMSI, PCM, SCPI |
