FPGAs (Field Programmable Gate Array)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of LABs/CLBs | Number of Logic Elements/Cells | Total RAM Bits | Number of I/O | Number of Gates | Voltage - Supply | Mounting Type | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2GL150-FCS536IC FPGA 293 I/O 536CSPBGA |
90 |
|
Datasheet | IGLOO2 | 536-LFBGA, CSPBGA | Tray | Active | Not Verified | - | 146124 | 5120000 | 293 | - | 1.14V ~ 2.625V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 536-CSPBGA (16x16) |
|
5CGXFC7C6F23C7NIC FPGA 240 I/O 484FBGA |
60 |
|
Datasheet | Cyclone® V GX | 484-BGA | Tray | Active | Not Verified | 56480 | 149500 | 7880704 | 240 | - | 1.07V ~ 1.13V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 484-FBGA (23x23) |
|
XC4052XLA-08BG432CFPGA, 1936 CLBS, 33000 GATES |
38 |
|
Datasheet | XC4000XLA | 432-LBGA Exposed Pad | Bulk | Active | Not Verified | 1936 | 4598 | 61952 | 352 | 52000 | 3V ~ 3.6V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 432-MBGA (40x40) |
|
XC3S500E-4PQG208IIC FPGA 158 I/O 208QFP |
4,531 |
|
Datasheet | Spartan®-3E | 208-BFQFP | Tray | Obsolete | Not Verified | 1164 | 10476 | 368640 | 158 | 500000 | 1.14V ~ 1.26V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 208-PQFP (28x28) |
|
XC6SLX150T-3FGG484CIC FPGA 296 I/O 484FBGA |
151 |
|
Datasheet | Spartan®-6 LXT | 484-BBGA | Tray | Active | Not Verified | 11519 | 147443 | 4939776 | 296 | - | 1.14V ~ 1.26V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 484-FBGA (23x23) |
|
|
XC4062XL-1BG432CIC FPGA 352 I/O 432MBGA |
0 |
|
- |
XC4000E/X | 432-LBGA Exposed Pad, Metal | Bulk | Obsolete | Not Verified | 2304 | 5472 | 73728 | 352 | 62000 | 3V ~ 3.6V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 432-MBGA (40x40) |
|
EP1SGX10CF672C7NIC FPGA 362 I/O 672FBGA |
0 |
|
Datasheet | Stratix® GX | 672-BBGA | Tray | Obsolete | Not Verified | 1057 | 10570 | 920448 | 362 | - | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 672-FBGA (27x27) |
|
|
5CGXFC7C6F23C6NIC FPGA 240 I/O 484FBGA |
49 |
|
Datasheet | Cyclone® V GX | 484-BGA | Tray | Active | Not Verified | 56480 | 149500 | 7880704 | 240 | - | 1.07V ~ 1.13V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 484-FBGA (23x23) |
|
EP1S20F780C5NIC FPGA 586 I/O 780FBGA |
0 |
|
Datasheet | Stratix® | 780-BBGA, FCBGA | Tray | Obsolete | Not Verified | 1846 | 18460 | 1669248 | 586 | - | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 780-FBGA (29x29) |
|
|
XC4062XL-1BG560CIC FPGA 384 I/O 560MBGA |
0 |
|
- |
XC4000E/X | 560-LBGA Exposed Pad, Metal | Bulk | Obsolete | Not Verified | 2304 | 5472 | 73728 | 384 | 62000 | 3V ~ 3.6V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 560-MBGA (42.5x42.5) |
|
|
XCV400E-7BG432C0773FPGA, 2400 CLBS, 468252 GATES, 2 |
70 |
|
Datasheet | Virtex®-E | 432-LBGA Exposed Pad | Bulk | Active | - | 2400 | 10800 | 163840 | 316 | 569952 | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 432-MBGA (40x40) |
|
EP4CE115F23C8NIC FPGA 280 I/O 484FBGA |
60 |
|
Datasheet | Cyclone® IV E | 484-BGA | Tray | Active | Not Verified | 7155 | 114480 | 3981312 | 280 | - | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 484-FBGA (23x23) |
|

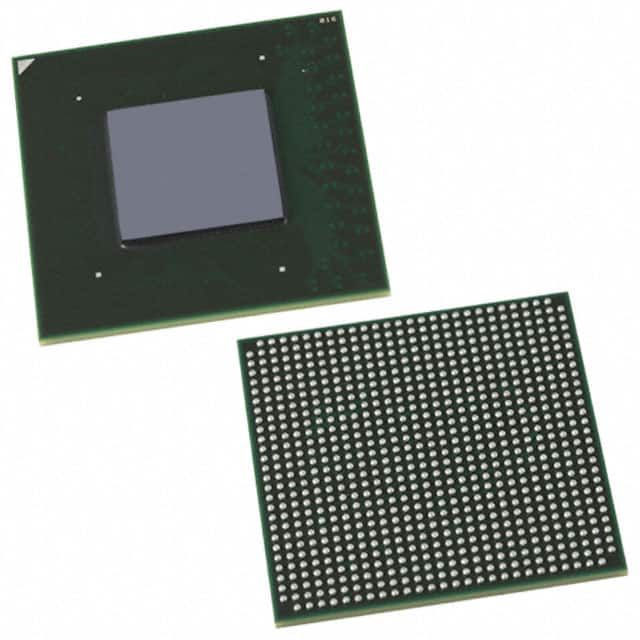

EP2AGX190EF29C5NIC FPGA 372 I/O 780FBGA |
0 |
|
Datasheet | Arria II GX | 780-BBGA, FCBGA | Tray | Obsolete | Not Verified | 7612 | 181165 | 10177536 | 372 | - | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 780-FBGA (29x29) |
|
|
XC4085XLA-09BG432CFPGA, 3136 CLBS, 55000 GATES |
30 |
|
Datasheet | XC4000XLA/XV | 432-LBGA Exposed Pad, Metal | Bulk | Active | Not Verified | 3136 | - | - | - | 55000 | - | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 432-MBGA (40x40) |
|

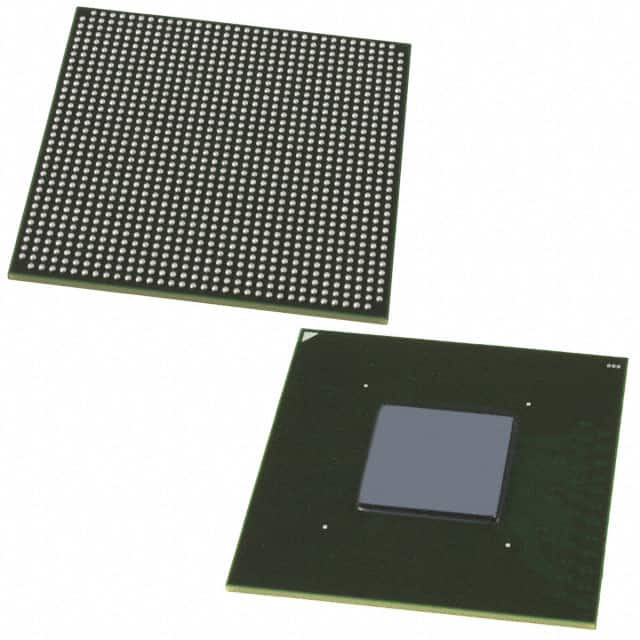

EP2AGX95EF35C4NIC FPGA 452 I/O 1152FBGA |
0 |
|
Datasheet | Arria II GX | 1152-BBGA, FCBGA | Tray | Obsolete | Not Verified | 3747 | 89178 | 6839296 | 452 | - | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 1152-FBGA (35x35) |
|
|
XC4062XL-1BG432IIC FPGA 352 I/O 432MBGA |
0 |
|
- |
XC4000E/X | 432-LBGA Exposed Pad, Metal | Bulk | Obsolete | Not Verified | 2304 | 5472 | 73728 | 352 | 62000 | 3V ~ 3.6V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 432-MBGA (40x40) |
|

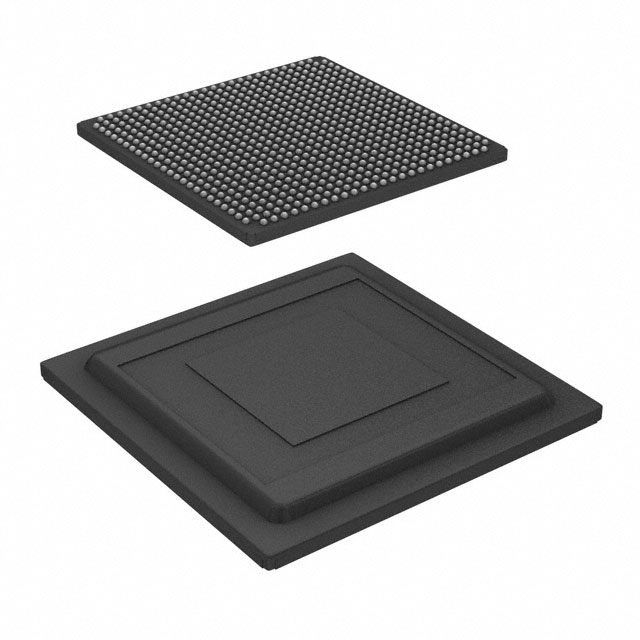

5AGXBA1D4F27I5IC FPGA 336 I/O 672FBGA |
0 |
|
Datasheet | Arria V GX | 672-BBGA, FCBGA | Tray | Obsolete | Not Verified | 3537 | 75000 | 8666112 | 336 | - | 1.07V ~ 1.13V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 672-FBGA (27x27) |
|
|
XCV400-5BG560CIC FPGA 404 I/O 560MBGA |
0 |
|
Datasheet | Virtex® | 560-LBGA Exposed Pad, Metal | Bulk | Obsolete | Not Verified | 2400 | 10800 | 81920 | 404 | 468252 | 2.375V ~ 2.625V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 560-MBGA (42.5x42.5) |
|
EP1S40F780C6NIC FPGA 615 I/O 780FBGA |
0 |
|
Datasheet | Stratix® | 780-BBGA, FCBGA | Tray | Obsolete | Not Verified | 4125 | 41250 | 3423744 | 615 | - | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 780-FBGA (29x29) |
|
XC4085XLA-09BG352IFPGA, 3136 CLBS, 55000 GATES |
132 |
|
Datasheet | XC4000XLA/XV | - | Bulk | Active | Not Verified | 3136 | - | - | - | 55000 | - | Surface Mount | -40°C ~ 100°C (TJ) | - | - | - |
