CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5M160ZM100I5NIC CPLD 128MC 7.5NS 100MBGA |
361 |
|
Datasheet | MAX® V | 100-TFBGA | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.71V ~ 1.89V | 160 | 128 | - | 79 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-MBGA (6x6) |
|
|
5M240ZM100I5NIC CPLD 192MC 7.5NS 100MBGA |
327 |
|
Datasheet | MAX® V | 100-TFBGA | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.71V ~ 1.89V | 240 | 192 | - | 79 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-MBGA (6x6) |
|
|
5M570ZM100C5NIC CPLD 440MC 9NS 100MBGA |
244 |
|
Datasheet | MAX® V | 100-TFBGA | Tray | Active | Not Verified | In System Programmable | 9 ns | 1.71V ~ 1.89V | 570 | 440 | - | 74 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-MBGA (6x6) |
|
EPM240GF100C5NIC CPLD 192MC 4.7NS 100FBGA |
111 |
|
Datasheet | MAX® II | 100-LBGA | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 1.71V ~ 1.89V | 240 | 192 | - | 80 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-FBGA (11x11) |
|
EPM570GT100C5NIC CPLD 440MC 5.4NS 100TQFP |
170 |
|
Datasheet | MAX® II | 100-TQFP | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 1.71V ~ 1.89V | 570 | 440 | - | 76 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
5M2210ZF256C4NIC CPLD 1700MC 7NS 256FBGA |
619 |
|
Datasheet | MAX® V | 256-LBGA | Tray | Active | Not Verified | In System Programmable | 7 ns | 1.71V ~ 1.89V | 2210 | 1700 | - | 203 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 256-FBGA (17x17) |
|
|
EPM570F100I5IC CPLD 440MC 5.4NS 100FBGA |
237 |
|
Datasheet | MAX® II | 100-LBGA | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 2.5V, 3.3V | 570 | 440 | - | 76 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-FBGA (11x11) |
|
|
EPM570T100A5NIC CPLD 440MC 5.4NS 100TQFP |
260 |
|
Datasheet | MAX® II | 100-TQFP | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 2.5V, 3.3V | 570 | 440 | - | 76 | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
EPM1270GT144C5NIC CPLD 980MC 6.2NS 144TQFP |
161 |
|
Datasheet | MAX® II | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 1.71V ~ 1.89V | 1270 | 980 | - | 116 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM570T144C4NIC CPLD 440MC 5.4NS 144TQFP |
166 |
|
Datasheet | MAX® II | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 2.5V, 3.3V | 570 | 440 | - | 116 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM2210GF256C5NIC CPLD 1700MC 7NS 256FBGA |
1,256 |
|
Datasheet | MAX® II | 256-BGA | Tray | Active | Not Verified | In System Programmable | 7 ns | 1.71V ~ 1.89V | 2210 | 1700 | - | 204 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 256-FBGA (17x17) |
|

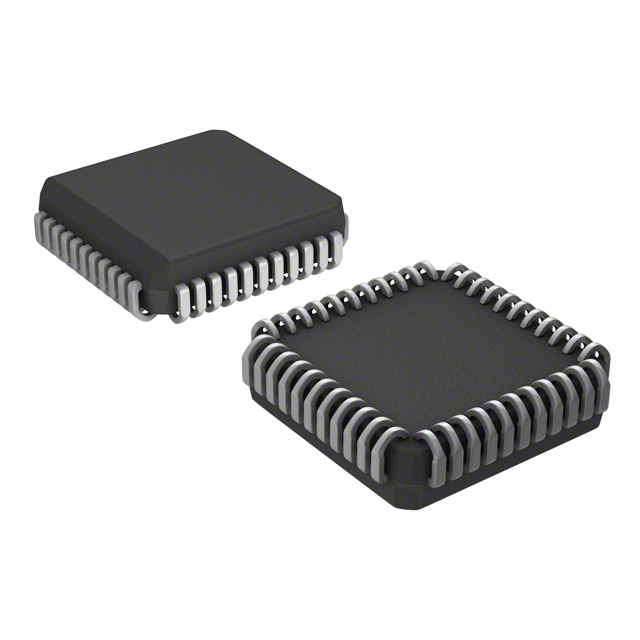

ATF2500C-20KMIC CPLD 24MC 20NS 44JLCC |
27 |
|
Datasheet | ATF2500C(L) | 44-CLCC (J-Lead) | Tube | Active | Verified | In System Programmable | 20 ns | 4.5V ~ 5.5V | - | 24 | - | 24 | -55°C ~ 125°C (TC) | - | - | Surface Mount | 44-JLCC (16.63x16.63) |
|
|
EPM570T144C3NIC CPLD 440MC 5.4NS 144TQFP |
177 |
|
Datasheet | MAX® II | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 2.5V, 3.3V | 570 | 440 | - | 116 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM1270F256C4NIC CPLD 980MC 6.2NS 256FBGA |
185 |
|
Datasheet | MAX® II | 256-BGA | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 2.5V, 3.3V | 1270 | 980 | - | 212 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 256-FBGA (17x17) |
|
ATF1500AL-20AUIC CPLD 32MC 20NS 44TQFP |
437 |
|
Datasheet | ATF15xx | 44-TQFP | Tray | Active | Verified | In System Programmable (min 100 program/erase cycles) | 20 ns | 4.5V ~ 5.5V | - | 32 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
.jpg)
|
ATF750C-7JXIC CPLD 10MC 7.5NS 28PLCC |
112 |
|
Datasheet | ATF750C(L) | 28-LCC (J-Lead) | Tube | Active | Verified | EE PLD | 7.5 ns | 4.75V ~ 5.25V | - | 10 | - | 10 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
5M240ZM100C5NIC CPLD 192MC 7.5NS 100MBGA |
419 |
|
- |
MAX® V | 100-TFBGA | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.71V ~ 1.89V | 240 | 192 | - | 79 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-MBGA (6x6) |
|
ATF1504AS-7AX100IC CPLD 64MC 7.5NS 100TQFP |
178 |
|
Datasheet | ATF15xx | 100-TQFP | Tray | Active | Not Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 4.75V ~ 5.25V | - | 64 | - | 64 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPM240GT100I5NIC CPLD 192MC 4.7NS 100TQFP |
412 |
|
Datasheet | MAX® II | 100-TQFP | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 1.71V ~ 1.89V | 240 | 192 | - | 80 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPM240GT100C3NIC CPLD 192MC 4.7NS 100TQFP |
266 |
|
Datasheet | MAX® II | 100-TQFP | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 1.71V ~ 1.89V | 240 | 192 | - | 80 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
