CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPM7128SQCI100-10IC CPLD 128MC 10NS 100QFP |
0 |
|
Datasheet | MAX® 7000S | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 84 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
|
EPM7128STI100-10NGIC CPLD 128MC 10NS 100TQFP |
0 |
|
Datasheet | MAX® 7000S | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 4.5V ~ 5.5V | 8 | 128 | 2500 | 84 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPM7160EQC100-10YYIC CPLD 160MC 10NS 100QFP |
0 |
|
Datasheet | MAX® 7000 | 100-BQFP | Tray | Obsolete | Not Verified | EE PLD | 10 ns | 4.75V ~ 5.25V | 10 | 160 | 3200 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
|

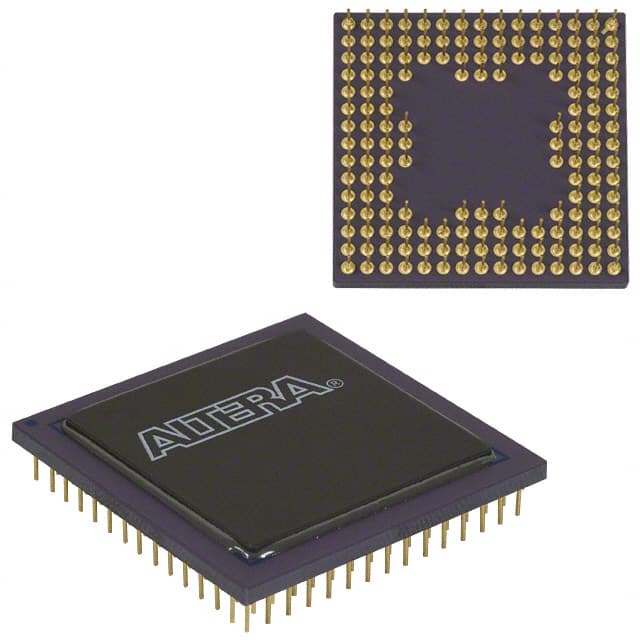

EPM7192EGI160-15IC CPLD 192MC 15NS 160PGA |
0 |
|
Datasheet | MAX® 7000 | 160-BPGA | Tray | Obsolete | Not Verified | EE PLD | 15 ns | 4.5V ~ 5.5V | 12 | 192 | 3750 | 124 | -40°C ~ 85°C (TA) | - | - | Through Hole | 160-PGA (39.62x39.62) |
|
EPM7192EQC160-15YYIC CPLD 192MC 15NS 160QFP |
0 |
|
Datasheet | MAX® 7000 | 160-BQFP | Tray | Obsolete | Not Verified | EE PLD | 15 ns | 4.75V ~ 5.25V | 12 | 192 | 3750 | 124 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 160-PQFP (28x28) |
|
|
EPM7192SQC160-15ABIC CPLD 192MC 15NS 160QFP |
0 |
|
Datasheet | MAX® 7000S | 160-BQFP | Tray | Obsolete | Not Verified | In System Programmable | 15 ns | 4.75V ~ 5.25V | 12 | 192 | 3750 | 124 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 160-PQFP (28x28) |
|
|
EPM7256BFC100-10IC CPLD 256MC 10NS 100FBGA |
0 |
|
Datasheet | MAX® 7000B | 100-LBGA | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-FBGA (11x11) |
|
|
EPM7256BFC100-5IC CPLD 256MC 5.5NS 100FBGA |
0 |
|
Datasheet | MAX® 7000B | 100-LBGA | Tray | Obsolete | Not Verified | In System Programmable | 5.5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-FBGA (11x11) |
|
|
EPM7256EGI192-15IC CPLD 256MC 15NS 192PGA |
0 |
|
Datasheet | MAX® 7000 | 192-BPGA | Tray | Obsolete | Not Verified | EE PLD | 15 ns | 4.5V ~ 5.5V | 16 | 256 | 5000 | 164 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 192-PGA (44.7x44.7) |
|
EPM9560RC240-15YYIC CPLD 560MC 15NS 240RQFP |
0 |
|
Datasheet | MAX® 9000 | 240-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 15 ns | 4.75V ~ 5.25V | 35 | 560 | 12000 | 191 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 240-RQFP (32x32) |
|
|
EPM7KAEFC256ABIC CPLE 256FBGA |
0 |
|
- |
* | - | Tray | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | Surface Mount | - |
|
EPM3032ATC44-10AAIC CPLD 32MC 10NS 44TQFP |
0 |
|
Datasheet | MAX® 3000A | 44-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 2 | 32 | 600 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
EPM3032ATC44-10NAAIC CPLD 32MC 10NS 44TQFP |
0 |
|
Datasheet | MAX® 3000A | 44-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 2 | 32 | 600 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
EPM3032ATC44-10NABIC CPLD 32MC 10NS 44TQFP |
0 |
|
Datasheet | MAX® 3000A | 44-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 2 | 32 | 600 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
EPM3064ATC100-10NAIC CPLD 64MC 10NS 100TQFP |
0 |
|
Datasheet | MAX® 3000A | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 4 | 64 | 1250 | 66 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPM3064ATC44-10NAFIC CPLD 64MC 10NS 44TQFP |
0 |
|
Datasheet | MAX® 3000A | 44-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 4 | 64 | 1250 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
EPM3064ATC44-4NAGIC CPLD 64MC 4.5NS 44TQFP |
0 |
|
Datasheet | MAX® 3000A | 44-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 4.5 ns | 3V ~ 3.6V | 4 | 64 | 1250 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
EPM3064ATI44-10NADIC CPLD 64MC 10NS 44TQFP |
0 |
|
Datasheet | MAX® 3000A | 44-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 4 | 64 | 1250 | 34 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
EPM3064ATI44-10NAEIC CPLD 64MC 10NS 44TQFP |
0 |
|
Datasheet | MAX® 3000A | 44-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 4 | 64 | 1250 | 34 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
EPM3128ATI144-10AAIC CPLD 128MC 10NS 144TQFP |
0 |
|
Datasheet | MAX® 3000A | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 8 | 128 | 2500 | 96 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
