Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCMR005.TXPFUSE CARTRIDGE 5A 600VAC/250VDC |
114 |
|
Datasheet | POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 5A | 600 VAC | 250 VDC | Slow Blow | Motor Protection | - | CC | CE, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
CCMR006.TXPFUSE CARTRIDGE 6A 600VAC/250VDC |
62 |
|
Datasheet | POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 6A | 600 VAC | 250 VDC | Slow Blow | Motor Protection | - | CC | CE, UL | - | 300kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
CCMR008.TXPFUSE CARTRIDGE 8A 600VAC/250VDC |
50 |
|
Datasheet | POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 8A | 600 VAC | 250 VDC | Slow Blow | Motor Protection | - | CC | CE, UL | - | 300kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
0TLS100.TFUSE CARTRIDGE 100A 170VDC |
44 |
|
Datasheet | POWR-GARD® TLS | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 100A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, cURus, TUV | - | 100kA | 0.563" Dia x 0.880" L (14.30mm x 22.35mm) | - | - |
|
0FLQ025.TFUSE CARTRIDGE 25A 500VAC/300VDC |
27 |
|
Datasheet | POWR-GARD® FLQ | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 25A | 500 VAC | 300 VDC | Slow Blow | Transformer Protection | - | - | CSA, UL | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0SPF004.HXRFUSE CARTRIDGE 4A 1KVDC 5AG |
584 |
|
Datasheet | POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Through Hole | Cartridge | 4A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0SPF030.HXRFUSE CARTRIDGE 30A 1KVDC 5AG |
184 |
|
Datasheet | POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Through Hole | Cartridge | 30A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0SPF005.HXRFUSE CARTRIDGE 5A 1KVDC 5AG |
80 |
|
Datasheet | POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Through Hole | Cartridge | 5A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
KLDR001.TXPFUSE CARTRIDGE 1A 600VAC/300VDC |
129 |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
KLDR025.TXPFUSE CARTRIDGE 25A 600VAC/300VDC |
81 |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 25A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
KLDR003.TXPFUSE CARTRIDGE 3A 600VAC/300VDC |
63 |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 3A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|

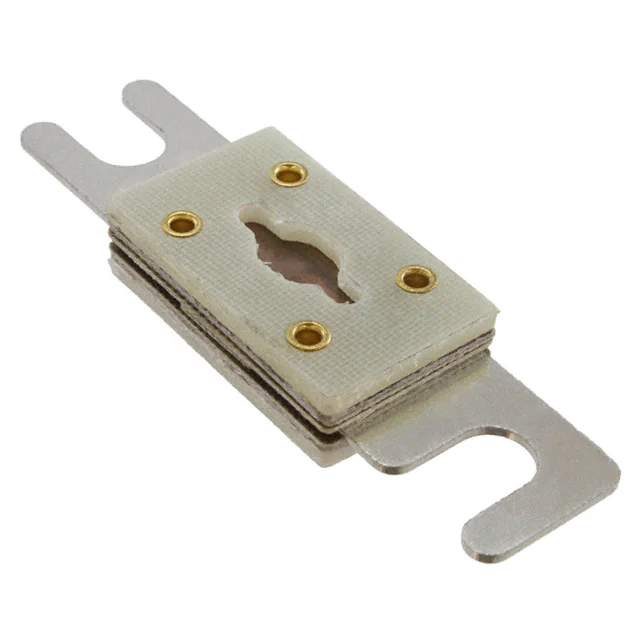

0CNN800E.VFUSE STRP 800A 125VAC/80VDC BOLT |
61 |
|
Datasheet | POWR-GARD® CNN_E | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 800A | 125 VAC | 80 VDC | Fast Blow | Lift Trucks | Indicating | - | cURus | - | 2.5kA | - | - | - |
|
JLLN300.XFUSE CRTRDGE 300A 300VAC/125VDC |
58 |
|
Datasheet | POWR-GARD® JLLN | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 300A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.311" Dia x 0.827" L (33.30mm x 21.00mm) | - | - |
|
0JTD080.VXIDFUSE CARTRIDGE 80A 600VAC/300VDC |
56 |
|
Datasheet | POWR-GARD®, POWR-PRO® JTD_ID | Cylindrical, Alarm Indicator, Blade Terminal | Bulk | Active | Requires Holder | Cartridge | 80A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | Indicating | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.126" Dia x 2.626" L (28.60mm x 66.70mm) | - | - |
|
SPFJ125.XFUSE CARTRIDGE 125A 600VAC/1KVDC |
26 |
|
Datasheet | POWR-GARD® SPFJ | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 125A | 600 VAC | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | J | CE, cULus, UL, VDE | - | 200kA AC, 20kA DC | 1.500" Dia x 5.670" L (38.10mm x 144.02mm) | - | - |
|

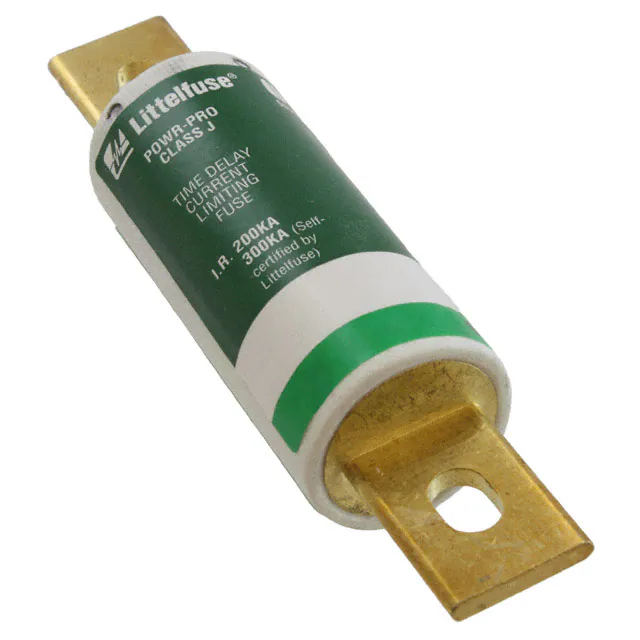

0JTD400.XFUSE CRTRDGE 400A 600VAC/500VDC |
72 |
|
Datasheet | POWR-GARD®, POWR-PRO® JTD | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 400A | 600 VAC | 500 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 2.000" Dia x 3.374" L (50.80mm x 85.70mm) | - | - |
|
156.5677.5802FUSE STRIP 80A 32VDC BOLT 5K PC |
3,663 |
|
Datasheet | HSB | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 80A | - | 32 VDC | - | Automotive | - | - | - | -40°C ~ 125°C | 1kA | 1.654" L x 0.472" W x 0.031" H (42.00mm x 12.00mm x 0.80mm) | - | - |
|
156.5677.6152FUSE STRIP 150A 32VDC BOLT 5K PC |
3,719 |
|
Datasheet | HSB | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 150A | - | 32 VDC | - | Automotive | - | - | - | -40°C ~ 125°C | 1kA | 1.654" L x 0.472" W x 0.031" H (42.00mm x 12.00mm x 0.80mm) | - | - |
|
156.5677.5402FUSE STRIP 40A 32VDC BOLT MOUNT |
3,675 |
|
Datasheet | HSB | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 40A | - | 32 VDC | - | Automotive | - | - | - | -40°C ~ 125°C | 1kA | 1.654" L x 0.472" W x 0.031" H (42.00mm x 12.00mm x 0.80mm) | - | - |
|
156.5610.5502FUSE STRIP 50A 36VDC BOLT MOUNT |
3,023 |
|
Datasheet | - | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 50A | - | 36 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | - | 1.614" L x 0.433" W x 0.043" H (41.00mm x 11.00mm x 1.08mm) | - | - |
