Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

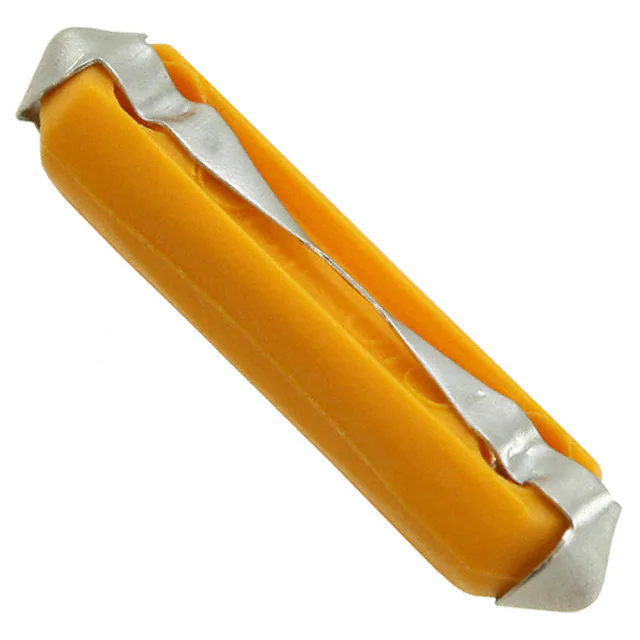

0214005.LXNFUSE CARTRIDGE 5A 36VDC TORPEDO |
8,230 |
|
Datasheet | 214 | Torpedo | Bulk | Discontinued at Digi-Key | Requires Holder | Cartridge | 5A | - | 36 VDC | - | Automotive | - | - | - | - | - | 0.236" Dia x 0.984" L (6.00mm x 25.00mm) | - | - |
|
LA15QS1500128FUSE CARTRIDGE 1.5KA 150VAC/VDC |
7,612 |
|
Datasheet | POWR-GARD® LA15QS | Hockey Puck | Box | Active | Bolt Mount | Cartridge | 1.5kA | 150 VAC | 150 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.000" Dia x 1.886" L (50.80mm x 47.90mm) | - | - |
|
|
LA15QS1000128FUSE CRTRDGE 1KA 150VAC/VDC PUCK |
3,372 |
|
Datasheet | POWR-GARD® LA15QS | Hockey Puck | Box | Active | Bolt Mount | Cartridge | 1kA | 150 VAC | 150 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.000" Dia x 1.886" L (50.80mm x 47.90mm) | - | - |
|
|
LA30QS1004TIFUSE CARTRIDGE 100A 300VAC/VDC |
8,023 |
|
Datasheet | POWR-GARD® LA30QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 100A | 300 VAC | 300 VDC | Fast Blow | Semiconductors | Indicating | - | UR | - | 200kA | 1.220" Dia x 1.630" L (31.00mm x 41.40mm) | - | - |
|
|
LA70QS10022FIFUSE CRTRDGE 100A 690VAC/700VDC |
3,998 |
|
Datasheet | POWR-GARD® LA70QSF | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 100A | 690 VAC | 700 VDC | Fast Blow | Electrical, Industrial | Indicating | - | CSA, UR | - | 200kA AC, 100kA DC | 0.866" Dia x 2.283" L (22.00mm x 58.00mm) | - | - |
|
|
LA100P504FUSE CARTRIDGE 50A 1KVAC/750VDC |
9,924 |
|
Datasheet | POWR-GARD® LA100P | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 50A | 1 kVAC | 750 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.500" Dia x 3.469" L (63.50mm x 88.10mm) | - | - |
|
|
LA100P3504FUSE CARTRIDGE 350A 1KVAC/750VDC |
3,624 |
|
Datasheet | POWR-GARD® LA100P | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 350A | 1 kVAC | 750 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.000" Dia x 5.709" L (50.80mm x 145.00mm) | - | - |
|
|
LA100P4004FUSE CARTRIDGE 400A 1KVAC/750VDC |
2,352 |
|
Datasheet | POWR-GARD® LA100P | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 400A | 1 kVAC | 750 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.000" Dia x 5.709" L (50.80mm x 145.00mm) | - | - |
|
LFCL0500ZC3FUSE CARTRIDGE 600VAC |
6,885 |
|
Datasheet | POWR-GARD® LFCL | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | - | 600 VAC | - | - | Cable Protection | - | - | - | - | 200kA | - | - | - |
|
|
LA100P2254FUSE CARTRIDGE 225A 1KVAC/750VDC |
9,371 |
|
Datasheet | POWR-GARD® LA100P | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 225A | 1 kVAC | 750 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.000" Dia x 5.709" L (50.80mm x 145.00mm) | - | - |
|
|
1E5PT4.8FUSE CARTRIDGE 1A 4.8KVAC |
8,200 |
|
Datasheet | POWR-GARD® | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 1A | 4.8 kVAC | - | - | Transformer Protection | Indicating | E | - | - | 50kA | 0.813" Dia x 5.600" L (20.64mm x 142.24mm) | - | - |
|
|
LA100P2504FUSE CARTRIDGE 250A 1KVAC/750VDC |
2,887 |
|
Datasheet | POWR-GARD® LA100P | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 250A | 1 kVAC | 750 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.000" Dia x 5.709" L (50.80mm x 145.00mm) | - | - |
|
|
LFCL0350ZC3FUSE CARTRIDGE 600VAC |
3,837 |
|
Datasheet | POWR-GARD® LFCL | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | - | 600 VAC | - | - | Cable Protection | - | - | - | - | 200kA | - | - | - |
|
|
LFCL0500ZC1FUSE CARTRIDGE 600VAC |
8,526 |
|
Datasheet | POWR-GARD® LFCL | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | - | 600 VAC | - | - | Cable Protection | - | - | - | - | 200kA | - | - | - |
|
|
LA15QS10004TIFUSE CARTRIDGE 1KA 150VAC/VDC |
5,116 |
|
Datasheet | POWR-GARD® LA15QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 1kA | 150 VAC | 150 VDC | Fast Blow | Electrical, Industrial | Indicating | - | UR | - | 100kA | 1.500" Dia x 1.252" L (38.10mm x 31.80mm) | - | - |
|
|
LA100P1004TIFUSE CARTRIDGE 100A 1KVAC/750VDC |
6,005 |
|
Datasheet | POWR-GARD® LA100P | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 100A | 1 kVAC | 750 VDC | Fast Blow | Electrical, Industrial | Indicating | - | UR | - | 100kA | 1.220" Dia x 5.000" L (31.00mm x 127.00mm) | - | - |
|
|
LA100P504TIFUSE CARTRIDGE 50A 1KVAC/750VDC |
4,677 |
|
Datasheet | POWR-GARD® LA100P | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 50A | 1 kVAC | 750 VDC | Fast Blow | Electrical, Industrial | Indicating | - | UR | - | 100kA | 2.500" Dia x 3.469" L (63.50mm x 88.10mm) | - | - |
|
|
LA100P604TIFUSE CARTRIDGE 60A 1KVAC/750VDC |
3,369 |
|
Datasheet | POWR-GARD® LA100P | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 60A | 1 kVAC | 750 VDC | Fast Blow | Electrical, Industrial | Indicating | - | UR | - | 100kA | 1.000" Dia x 5.000" L (25.40mm x 127.00mm) | - | - |
|
|
2E4PT2.4FUSE CARTRIDGE 2A 2.75KVAC |
8,816 |
|
Datasheet | POWR-GARD® | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 2A | 2.75 kVAC | - | - | Transformer Protection | Indicating | E | - | - | 37.5kA | 0.813" Dia x 4.600" L (20.64mm x 116.84mm) | - | - |
|
|
LA100P2004FUSE CARTRIDGE 200A 1KVAC/750VDC |
7,973 |
|
Datasheet | POWR-GARD® LA100P | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 200A | 1 kVAC | 750 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 1.500" Dia x 5.709" L (38.10mm x 145.00mm) | - | - |
