Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LA70Q2004FUSE CRTRDGE 200A 700VAC/650VDC |
5,218 |
|
Datasheet | LA70Q | Cylindrical, Blade Terminal (Bolt) | Box | Obsolete | Bolt Mount | Cartridge | 200A | 700 VAC | 650 VDC | - | Electrical, Industrial | - | - | UR | - | 100kA | 1.500" Dia x 2.843" L (38.10mm x 72.20mm) | - | - |
|
|
LA70Q1504FUSE CRTRDGE 150A 700VAC/650VDC |
5,553 |
|
Datasheet | LA70Q | Cylindrical, Blade Terminal (Bolt) | Box | Obsolete | Bolt Mount | Cartridge | 150A | 700 VAC | 650 VDC | - | Electrical, Industrial | - | - | UR | - | 100kA | 1.500" Dia x 2.843" L (38.10mm x 72.20mm) | - | - |
|
|
LA70Q1254FUSE CRTRDGE 125A 700VAC/650VDC |
2,113 |
|
Datasheet | LA70Q | Cylindrical, Blade Terminal (Bolt) | Box | Obsolete | Bolt Mount | Cartridge | 125A | 700 VAC | 650 VDC | - | Electrical, Industrial | - | - | UR | - | 100kA | 1.500" Dia x 2.843" L (38.10mm x 72.20mm) | - | - |
|
JLLN225.XFUSE CRTRDGE 225A 300VAC/125VDC |
7,122 |
|
Datasheet | POWR-GARD® JLLN | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 225A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.311" Dia x 0.827" L (33.30mm x 21.00mm) | - | - |
|
|
JLLN250.XFUSE CRTRDGE 250A 300VAC/125VDC |
3,442 |
|
Datasheet | POWR-GARD® JLLN | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 250A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.311" Dia x 0.827" L (33.30mm x 21.00mm) | - | - |
|
|
L75QS175.V750VDC HIGHSPEED SEMICONDUCTOR F |
8,243 |
|
Datasheet | POWR-SPEED® L75QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 175A | - | 750 VDC | Fast Blow | Electrical, Industrial | - | - | CE, cURus, UL | -55°C ~ 125°C | 50kA | 1.218" Dia x 2.875" L (30.94mm x 73.03mm) | - | - |
|

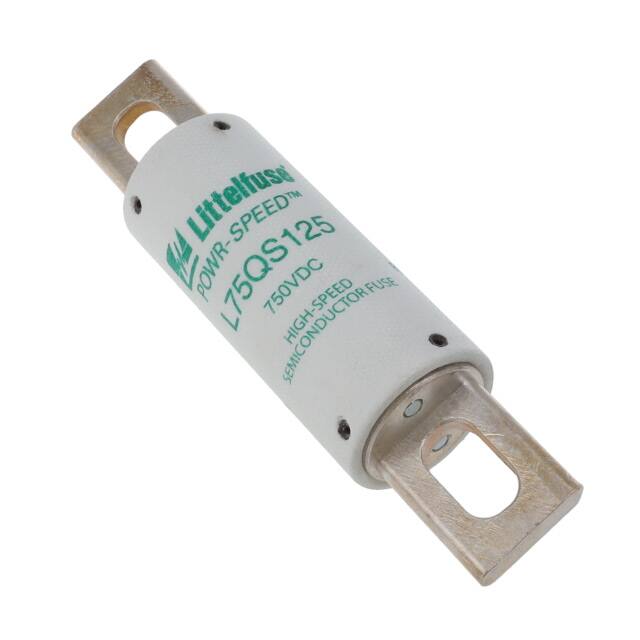

L75QS125.V750VDC HIGHSPEED SEMICONDUCTOR F |
5,559 |
|
Datasheet | POWR-SPEED® L75QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 125A | - | 750 VDC | Fast Blow | Electrical, Industrial | - | - | CE, cURus, UL | -55°C ~ 125°C | 50kA | 1.218" Dia x 2.875" L (30.94mm x 73.03mm) | - | - |
|
|
0RLN175.XFUSE CRTRDGE 175A 250VAC CYLINDR |
8,979 |
|
Datasheet | POWR-GARD® RLN | Cylindrical, Blade Terminals | Bulk | Obsolete | Requires Holder | Cartridge | 175A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | H | CE, CSA, UL | - | 10kA | 1.563" Dia x 4.378" L (39.70mm x 111.20mm) | - | - |
|
|
0RLN110.XFUSE CRTRDGE 110A 250VAC CYLINDR |
5,317 |
|
Datasheet | POWR-GARD® RLN | Cylindrical, Blade Terminals | Bulk | Obsolete | Requires Holder | Cartridge | 110A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | H | CE, CSA, UL | - | 10kA | 1.563" Dia x 4.378" L (39.70mm x 111.20mm) | - | - |
|
|
LNRK110.XFUSE CRTRDGE 110A 250VAC/125VDC |
2,288 |
|
Datasheet | POWR-GARD®, POWR-PRO® LLNRK | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 110A | 250 VAC | 125 VDC | Slow Blow | Electrical, Industrial | - | RK1 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 1.843" Dia x 7.126" L (46.80mm x 181.00mm) | - | - |
|
|
JLLN350.XXPFUSE CRTRDGE 350A 300VAC/125VDC |
8,408 |
|
Datasheet | POWR-GARD® JLLN | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 350A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL, UR | - | 200kA AC, 20kA DC | 1.311" Dia x 2.752" L (33.30mm x 69.90mm) | - | - |
|
|
0NLS150.XFUSE CARTRIDGE 150A 600VAC/VDC |
4,609 |
|
- |
POWR-GARD® NLS | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 150A | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | K5 | CE, CSA, UL | - | 50kA | 1.843" Dia x 6.878" L (46.80mm x 174.70mm) | - | - |
|
|
0NLS110.XFUSE CARTRIDGE 110A 600VAC/VDC |
8,045 |
|
- |
POWR-GARD® NLS | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 110A | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | K5 | CE, CSA, UL | - | 50kA | 1.843" Dia x 6.878" L (46.80mm x 174.70mm) | - | - |
|
|
0NLS175.XFUSE CARTRIDGE 175A 600VAC/VDC |
8,397 |
|
- |
POWR-GARD® NLS | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 175A | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | K5 | CE, CSA, UL | - | 50kA | 1.843" Dia x 6.878" L (46.80mm x 174.70mm) | - | - |
|
|
0NLS125.XFUSE CARTRIDGE 125A 600VAC/VDC |
7,850 |
|
- |
POWR-GARD® NLS | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 125A | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | K5 | CE, CSA, UL | - | 50kA | 1.843" Dia x 6.878" L (46.80mm x 174.70mm) | - | - |
|
L70S080.VFUSE CARTRIDGE 80A 700VAC/650VDC |
7,606 |
|
Datasheet | POWR-GARD® L70S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 80A | 700 VAC | 650 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.220" Dia x 2.874" L (31.00mm x 73.00mm) | - | - |
|
|
LA070URD30TTI0080FUSE SQUARE 80A 700VAC RECT |
4,940 |
|
Datasheet | POWR-GARD® LA | Rectangular | Box | Obsolete | Bolt Mount | Square | 80A | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.992" L x 1.575" W x 1.874" H (50.60mm x 40.00mm x 46.70mm) | - | - |
|
|
LA070URD30TTI0125FUSE SQUARE 125A 700VAC RECT |
7,958 |
|
Datasheet | POWR-GARD® LA | Rectangular | Box | Obsolete | Bolt Mount | Square | 125A | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.992" L x 1.575" W x 1.874" H (50.60mm x 40.00mm x 46.70mm) | - | - |
|
|
LA070URD30TTI0063FUSE SQUARE 63A 700VAC RECT |
6,969 |
|
Datasheet | POWR-GARD® LA | Rectangular | Box | Obsolete | Bolt Mount | Square | 63A | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.992" L x 1.575" W x 1.874" H (50.60mm x 40.00mm x 46.70mm) | - | - |
|
|
LA070URD30TTI0160FUSE SQUARE 160A 700VAC RECT |
8,973 |
|
Datasheet | POWR-GARD® LA | Rectangular | Box | Obsolete | Bolt Mount | Square | 160A | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.992" L x 1.575" W x 1.874" H (50.60mm x 40.00mm x 46.70mm) | - | - |
