Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0304.050HRFUSE BRD MNT 50MA 277VAC/DC 2SMD |
35 |
|
Datasheet | PICO® 304 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 50mA | 277 VAC | 277 VDC | - | Hazardous Locations | Intrinsically Safe | - | cURus, EX | -40°C ~ 60°C | 1.5kA | 0.538" L x 0.237" W x 0.244" H (13.67mm x 6.03mm x 6.19mm) | - | - |
|
0SPF010.TFUSE CARTRIDGE 10A 1KVDC 5AG |
96 |
|
Datasheet | POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 10A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0SPF002.TFUSE CARTRIDGE 2A 1KVDC 5AG |
7 |
|
Datasheet | POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 2A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
KLKR003.TFUSE CARTRIDGE 3A 600VAC/300VDC |
60 |
|
Datasheet | POWR-GARD® KLKR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 3A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
KLKR015.TFUSE CARTRIDGE 15A 600VAC/300VDC |
44 |
|
Datasheet | POWR-GARD® KLKR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 15A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
0CNN600E.VFUSE STRP 600A 125VAC/80VDC BOLT |
13 |
|
Datasheet | POWR-GARD® CNN_E | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 600A | 125 VAC | 80 VDC | Fast Blow | Lift Trucks | Indicating | - | cURus | - | 2.7kA | - | - | - |
|

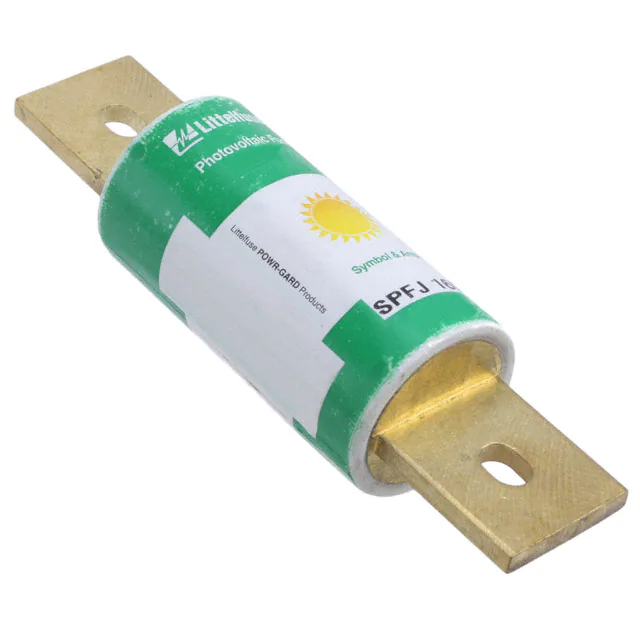

SPFJ160.XFUSE CARTRIDGE 160A 600VAC/1KVDC |
6 |
|
Datasheet | POWR-GARD® SPFJ | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 160A | 600 VAC | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | J | CE, cULus, UL, VDE | - | 200kA AC, 20kA DC | 1.500" Dia x 5.670" L (38.10mm x 144.02mm) | - | - |
|
PSR070FL0250ZFUSE SQUARE 250A 1.3KVAC/1KVDC |
14 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 250A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 1.693" W x 1.929" H (74.00mm x 43.00mm x 49.00mm) | - | - |
|
SPFJ400.XFUSE CARTRIDGE 400A 600VAC/1KVDC |
24 |
|
Datasheet | POWR-GARD® SPFJ | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 400A | 600 VAC | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | J | CE, cULus, UL, VDE | - | 200kA AC, 10kA DC | 2.000" Dia x 7.126" L (50.80mm x 181.00mm) | - | - |
|
156.5610.5801FUSE STRIP 80A 36VDC BOLT MOUNT |
118 |
|
Datasheet | - | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 80A | - | 36 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | - | 1.614" L x 0.433" W x 0.043" H (41.00mm x 11.00mm x 1.08mm) | - | - |
|
157.5701.5631FUSE STRIP 63A 48VDC BOLT MOUNT |
54 |
|
Datasheet | - | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 63A | - | 48 VDC | - | Lift Trucks | Indicating | - | cURus | -40°C ~ 125°C | 378A | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | - | - |
|
|
157.5701.6201FUSE STRIP 200A 48VDC BOLT MOUNT |
52 |
|
Datasheet | - | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 200A | - | 48 VDC | - | Lift Trucks | Indicating | - | cURus | -40°C ~ 125°C | 1.2kA | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | - | - |
|
|
157.5701.6121FUSE STRIP 125A 48VDC BOLT MOUNT |
41 |
|
Datasheet | - | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 125A | - | 48 VDC | - | Lift Trucks | Indicating | - | cURus | -40°C ~ 125°C | 750A | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | - | - |
|

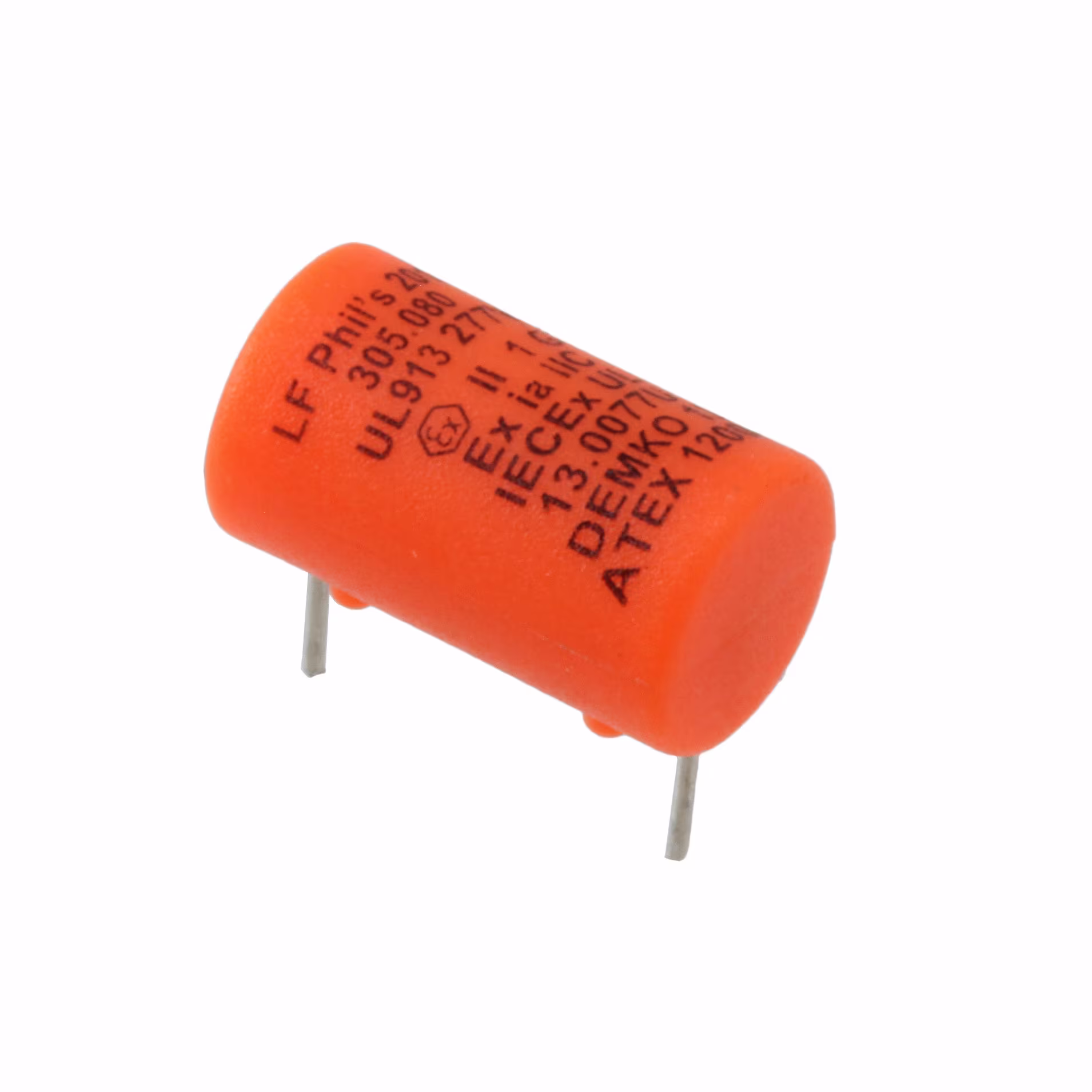

0305.080HFUSE BRD MNT 80MA 277VAC/VDC RAD |
63 |
|
Datasheet | PICO® 305 | Radial, Can, Horizontal | Bulk | Active | Through Hole | Board Mount | 80mA | 277 VAC | 277 VDC | - | Hazardous Locations | Intrinsically Safe | - | ATEX, cURus, IECEx | -40°C ~ 50°C | 1.5kA | 0.354" Dia x 0.614" L (9.00mm x 15.60mm) | - | - |
|
0BLS001.TFUSE CARTRIDGE 1A 600VAC 5AG |
47 |
|
Datasheet | BLS | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UL | - | 10kA | 0.406" Dia x 1.375" L (10.31mm x 34.93mm) | - | - |
|

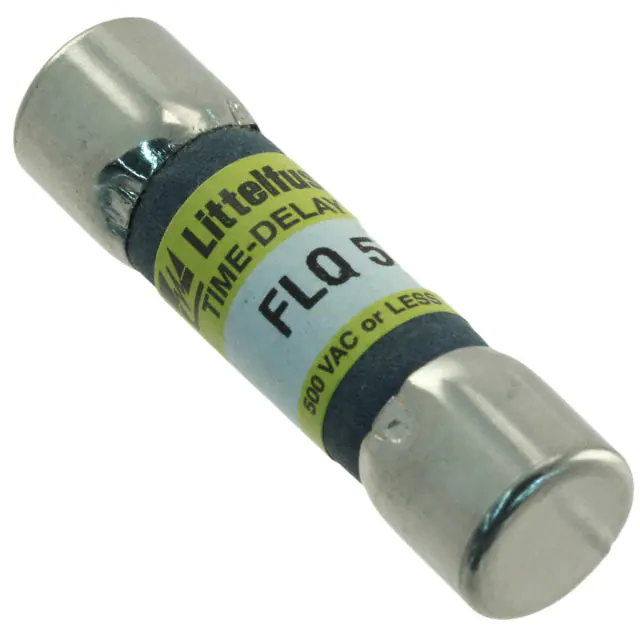

0FLQ005.TFUSE CARTRIDGE 5A 500VAC/300VDC |
9 |
|
Datasheet | POWR-GARD® FLQ | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 5A | 500 VAC | 300 VDC | Slow Blow | Transformer Protection | - | - | CSA, UL | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
LNNB0001ZFUSE DUMMY 5AG |
56 |
|
- |
LNNB | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | - | Dummy | - | - | - | - | - | - | - | - | - | 0.406" Dia x 1.500" L (10.30mm x 38.00mm) | - | - |
|
|
0SPF025.HFUSE CARTRIDGE 25A 1KVDC 5AG |
95 |
|
Datasheet | POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 25A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|

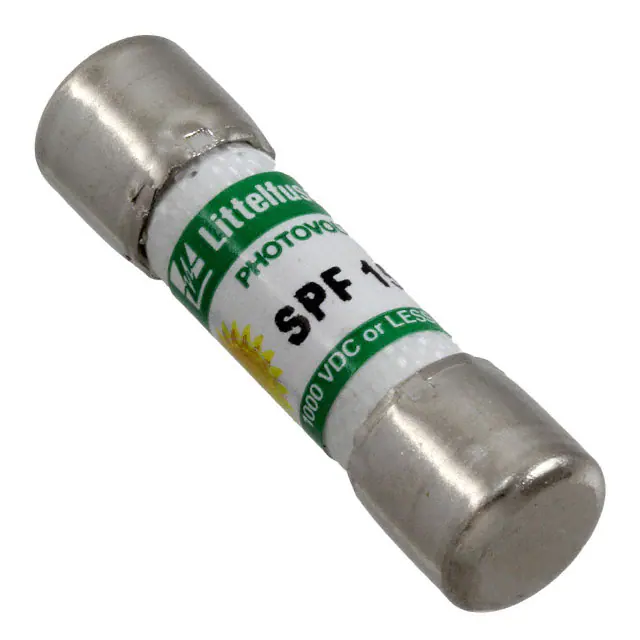

0SPF015.HFUSE CARTRIDGE 15A 1KVDC 5AG |
35 |
|
Datasheet | POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 15A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0KLK003.TFUSE CARTRIDGE 3A 600VAC/500VDC |
99 |
|
Datasheet | POWR-GARD® KLK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 3A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, QPL, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
