Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S501DC107W2R7ACAP 100F 0% +20% 2.7V T/H |
0 |
|
Datasheet | S501 | Bulk | Obsolete | 100 F | 0%, +20% | 2.7 V | 3.6mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | -40°C ~ 65°C |
|
S501LF357V2R7ACAP 350F -5% +10% 2.7V T/H |
0 |
|
Datasheet | S501 | Bulk | Obsolete | 350 F | -5%, +10% | 2.7 V | 3.1mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.402" (61.00mm) | -40°C ~ 65°C |
|

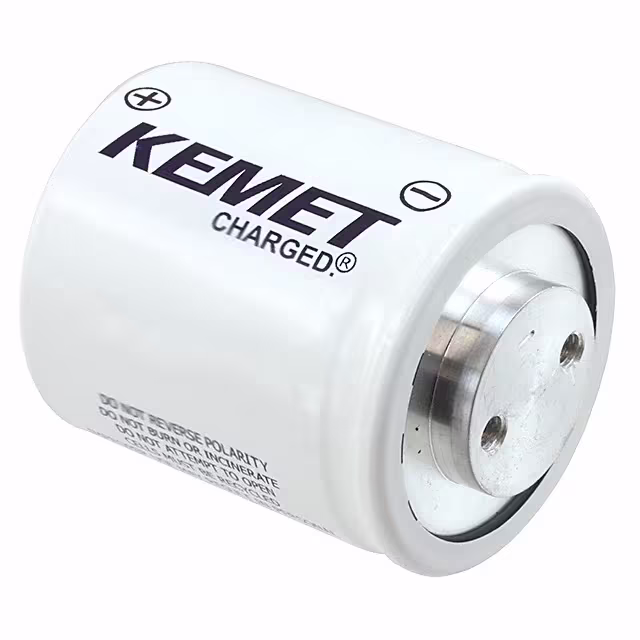

S301RP128R2R7WCAP 1200F 0% 2.7V CHASSIS MOUNT |
0 |
|
Datasheet | S301 | Bulk | Obsolete | 1200 F | -0% | 2.7 V | 0.25mOhm @ 1kHz | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | 0.787" (20.00mm) | 2.390" Dia x 3.169" L (60.70mm x 80.50mm) | - | -40°C ~ 65°C |
|

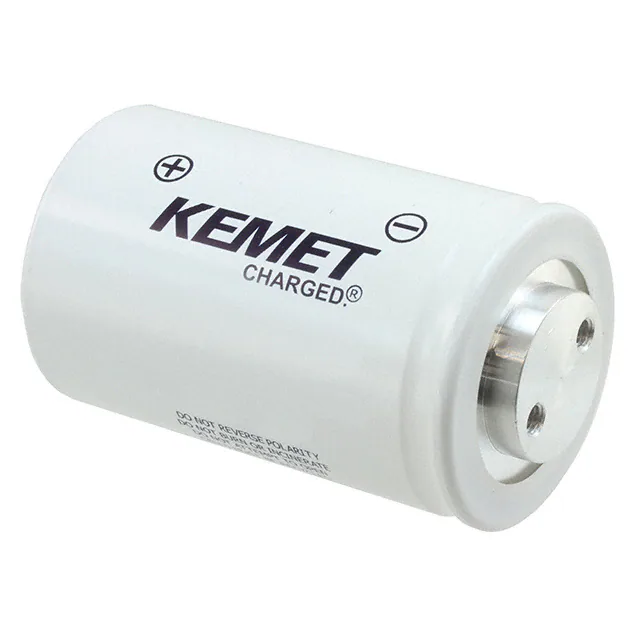

S301RS208R2R7WCAP 2000F 0% 2.7V CHASSIS MOUNT |
0 |
|
Datasheet | S301 | Bulk | Obsolete | 2000 F | -0% | 2.7 V | 0.23mOhm @ 1kHz | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | 0.787" (20.00mm) | 2.390" Dia x 4.272" L (60.70mm x 108.50mm) | - | -40°C ~ 65°C |
|

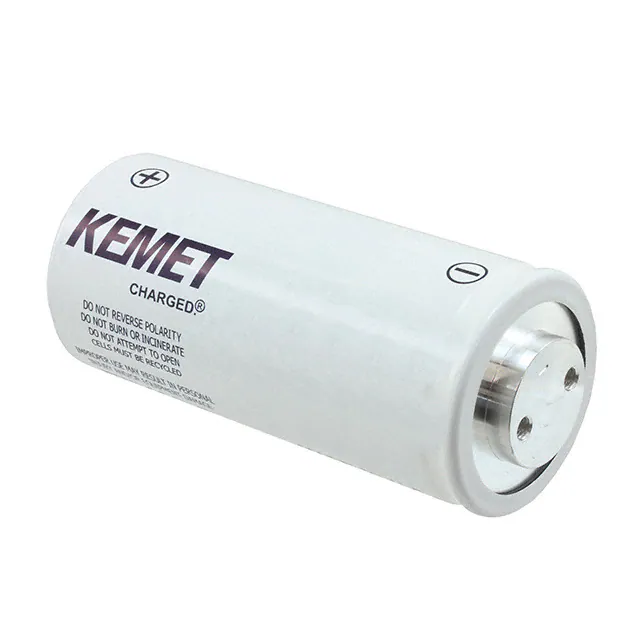

S301RV308R2R7WCAP 3000F 0% 2.7V CHASSIS MOUNT |
0 |
|
Datasheet | S301 | Bulk | Obsolete | 3000 F | -0% | 2.7 V | 0.2mOhm @ 1kHz | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | 0.787" (20.00mm) | 2.390" Dia x 5.669" L (60.70mm x 144.00mm) | - | -40°C ~ 65°C |
|
S01PM5805K016ACAP 58F 10% 16V CHASSIS MT |
0 |
|
Datasheet | S01 | Bulk | Obsolete | 58 F | ±10% | 16 V | 23mOhm | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Module | - | 8.873" L x 2.000" W (225.37mm x 50.80mm) | 3.000" (76.20mm) | -40°C ~ 65°C |
|
S301RE657R2R7WCAP 650F 0% 2.7V CHAS MT |
0 |
|
Datasheet | S301 | Bulk | Obsolete | 650 F | -0% | 2.7 V | 0.26mOhm @ 1kHz | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | - | 2.390" Dia x 2.264" L (60.70mm x 57.50mm) | - | -40°C ~ 65°C |
|
A957AL132M800SCAP MODULE |
0 |
|
Datasheet | A957 | Tray | Active | 1.3 mF | ±20% | 800 V | 114mOhm | 18000 Hrs @ 85°C | - | Chassis Mount | Module | - | 5.567" L x 4.331" W (141.40mm x 110.00mm) | 3.783" (96.10mm) | -40°C ~ 85°C |
|
|
A927KF113Q063WCAP MODULE |
0 |
|
Datasheet | A927 | Tray | Active | 11 mF | -10%, +30% | 63 V | 9mOhm | 8400 Hrs @ 125°C | - | Chassis Mount | Module | - | 5.315" L x 2.362" W (135.00mm x 60.00mm) | 1.220" (31.00mm) | -40°C ~ 125°C |
|
|
FM0V473ZFTP16CAP EDLC RAD |
0 |
|
Datasheet | FM | Tape & Box (TB) | Active | 47 mF | -20%, +80% | 3.5 V | 200Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial | 0.197" (5.00mm) | 0.413" L x 0.197" W (10.50mm x 5.00mm) | 0.472" (12.00mm) | -25°C ~ 70°C |
|
|
FM0V224ZFTP16CAP EDLC RAD |
0 |
|
Datasheet | FM | Tape & Box (TB) | Active | 220 mF | -20%, +80% | 3.5 V | 100Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial | 0.197" (5.00mm) | 0.413" L x 0.256" W (10.50mm x 6.50mm) | 0.472" (12.00mm) | -25°C ~ 70°C |
|
|
FMR0H104ZF-L1CAP EDLC RAD |
0 |
|
Datasheet | FMR | Tape & Reel (TR) | Active | 100 mF | -20%, +80% | 5.5 V | 50Ohm @ 1kHz | - | PC Pins | Through Hole | Radial | 0.197" (5.00mm) | 0.413" L x 0.256" W (10.50mm x 6.50mm) | 0.472" (12.00mm) | -40°C ~ 85°C |
|
|
FMR0V474ZFCAP EDLC RAD |
0 |
|
Datasheet | FMR | Bulk | Active | 470 mF | -20%, +80% | 3.5 V | 25Ohm @ 1kHz | - | PC Pins | Through Hole | Radial | 0.197" (5.00mm) | 0.551" L x 0.354" W (14.00mm x 9.00mm) | 0.610" (15.50mm) | -40°C ~ 85°C |
|
|
FMR0V104ZF-L1CAP EDLC RAD |
0 |
|
Datasheet | FMR | Bulk | Active | 100 mF | -20%, +80% | 3.5 V | 50Ohm @ 1kHz | - | PC Pins | Through Hole | Radial | 0.197" (5.00mm) | 0.413" L x 0.256" W (10.50mm x 6.50mm) | 0.472" (12.00mm) | -40°C ~ 85°C |
|
|
A928JE422Q063SCAP MODULE |
0 |
|
Datasheet | A928 | Tray | Active | 4.2 mF | -10%, +30% | 63 V | 18.1mOhm | 2000 Hrs @ 150°C | - | Chassis Mount | Module | - | 4.252" L x 2.047" W (108.00mm x 52.00mm) | 1.220" (31.00mm) | -40°C ~ 150°C |
|
|
FMR0V474ZFTP18CAP EDLC RAD |
0 |
|
Datasheet | FMR | Bulk | Active | 470 mF | -20%, +80% | 3.5 V | 25Ohm @ 1kHz | - | PC Pins | Through Hole | Radial | 0.197" (5.00mm) | 0.551" L x 0.354" W (14.00mm x 9.00mm) | 0.610" (15.50mm) | -40°C ~ 85°C |
|
|
FM0H104ZFTP16CAP EDLC RAD |
0 |
|
Datasheet | FM | Tape & Box (TB) | Active | 100 mF | -20%, +80% | 5.5 V | 100Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial | 0.197" (5.00mm) | 0.413" L x 0.256" W (10.50mm x 6.50mm) | 0.472" (12.00mm) | -25°C ~ 70°C |
|
|
A928KF722Q063WCAP MODULE |
0 |
|
Datasheet | A928 | Tray | Active | 7.2 mF | -10%, +30% | 63 V | 10.9mOhm | 2000 Hrs @ 150°C | - | Chassis Mount | Module | - | 5.315" L x 2.362" W (135.00mm x 60.00mm) | 1.220" (31.00mm) | -40°C ~ 150°C |
|
|
A928KE562Q063SCAP MODULE |
0 |
|
Datasheet | A928 | Tray | Active | 5.6 mF | -10%, +30% | 63 V | 13.7mOhm | 2000 Hrs @ 150°C | - | Chassis Mount | Module | - | 5.315" L x 2.047" W (135.00mm x 52.00mm) | 1.220" (31.00mm) | -40°C ~ 150°C |
|
|
FMR0V334ZFCAP EDLC RAD |
0 |
|
Datasheet | FMR | Bulk | Active | 330 mF | -20%, +80% | 3.5 V | 50Ohm @ 1kHz | - | PC Pins | Through Hole | Radial | 0.197" (5.00mm) | 0.413" L x 0.256" W (10.50mm x 6.50mm) | 0.472" (12.00mm) | -40°C ~ 85°C |
