Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD5611BKSZ-500RL7IC DAC 10BIT V-OUT SC70-6 |
7,745 |
|
Datasheet | nanoDAC® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Not Verified | 10 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5 (Max), ±0.5 (Max) | String DAC | -40°C ~ 125°C | SC-70-6 | Surface Mount | - | - |
|
TLV5620CNIC DAC 8BIT V-OUT 14DIP |
55 |
|
Datasheet | - | 14-DIP (0.300", 7.62mm) | Bulk | Active | Not Verified | 8 | 4 | 10µs (Typ) | Voltage - Buffered | No | SPI | External | 2.7V ~ 5.25V | 2.7V ~ 5.25V | ±1 (Max), ±0.9 (Max) | String DAC | 0°C ~ 70°C | 14-PDIP | Through Hole | - | - |
|
BH2219FVM-TRIC DAC 8BIT V-OUT 8MSOP |
1,274 |
|
Datasheet | - | 8-VSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Active | Not Verified | 8 | 2 | 100µs | Voltage - Buffered | No | SPI | - | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1.5 (Max), ±1 (Max) | R-2R | -30°C ~ 85°C | 8-MSOP | Surface Mount | - | - |
|
MCP47CMB22-E/MGIC DAC 12BIT V-OUT 16QFN |
140 |
|
Datasheet | - | 16-VFQFN Exposed Pad | Tube | Active | Not Verified | 12 | 2 | 16µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 1.8V ~ 5.5V | 1.8V ~ 5.5V | ±1, ±1 | Current Source | -40°C ~ 125°C | 16-QFN (3x3) | Surface Mount | - | - |
|
MCP47CMB22-E/MFIC DAC 12BIT V-OUT 10DFN |
129 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Active | Not Verified | 12 | 2 | 16µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 1.8V ~ 5.5V | 1.8V ~ 5.5V | ±1, ±1 | Current Source | -40°C ~ 125°C | 10-DFN (3x3) | Surface Mount | - | - |
|
MCP47CMD22-E/UNIC DAC 12BIT V-OUT 10MSOP |
175 |
|
Datasheet | MCP | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Active | Not Verified | 12 | 2 | 4µs | Voltage - Buffered | No | I2C | External, Internal, Supply | 1.8V ~ 5.5V | 1.8V ~ 5.5V | ±1 (Max), ±1 (Max) | String DAC | -40°C ~ 125°C | 10-MSOP | Surface Mount | - | - |
|
TLV5623IDIC DAC 8BIT V-OUT 8SOIC |
146 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Not Verified | 8 | 1 | 20µs | Voltage - Buffered | No | SPI | External | 2.7V ~ 3.3V, 5V | 2.7V ~ 3.3V, 5V | ±0.3, ±0.07 | String DAC | -40°C ~ 85°C | 8-SOIC | Surface Mount | - | - |
|
TLV5623IDGKIC DAC 8BIT V-OUT 8VSSOP |
292 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Active | Not Verified | 8 | 1 | 20µs | Voltage - Buffered | No | SPI | External | 2.7V ~ 3.3V, 5V | 2.7V ~ 3.3V, 5V | ±0.3, ±0.07 | String DAC | -40°C ~ 85°C | 8-VSSOP | Surface Mount | - | - |
|

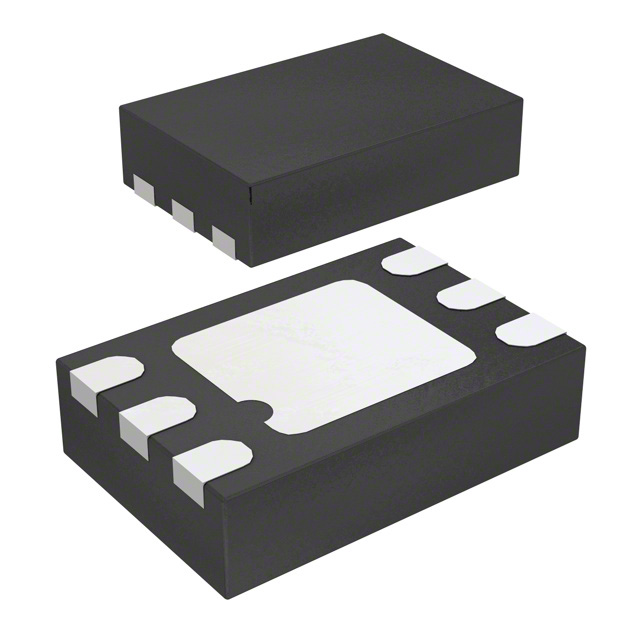

AD5621ACPZ-RL7IC DAC 12BIT V-OUT 6LFCSP-WD |
5,623 |
|
Datasheet | nanoDAC® | 6-VDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | 12 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±6 (Max), ±0.5 (Max) | String DAC | -40°C ~ 125°C | 6-LFCSP-WD (2x3) | Surface Mount | - | - |
|
|
AD5602BKSZ-2REEL7IC DAC 8BIT V-OUT SC70-6 |
7,767 |
|
Datasheet | nanoDAC® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Not Verified | 8 | 1 | 10µs | Voltage - Buffered | No | I2C | Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5 (Max), ±1 (Max) | String DAC | -40°C ~ 125°C | SC-70-6 | Surface Mount | - | - |
|
|
AD5602BKSZ-2500RL7IC DAC 8BIT V-OUT SC70-6 |
1,310 |
|
Datasheet | nanoDAC® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Not Verified | 8 | 1 | 10µs | Voltage - Buffered | No | I2C | Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5 (Max), ±1 (Max) | String DAC | -40°C ~ 125°C | SC-70-6 | Surface Mount | - | - |
|
LTC2630CSC6-HZ8#TRMPBFIC DAC 8BIT V-OUT SC70-6 |
1,011 |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Not Verified | 8 | 1 | 3.7µs (Typ) | Voltage - Buffered | No | SPI | Internal, Supply | 5V | 5V | ±0.05, ±0.5 (Max) | - | 0°C ~ 70°C | SC-70-6 | Surface Mount | - | - |
|
|
LTC2630CSC6-LZ8#TRMPBFIC DAC 8BIT V-OUT SC70-6 |
874 |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Not Verified | 8 | 1 | 3.2µs (Typ) | Voltage - Buffered | No | SPI | Internal, Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.05, ±0.5 (Max) | - | 0°C ~ 70°C | SC-70-6 | Surface Mount | - | - |
|
DAC7551IDRNTIC DAC 12BIT V-OUT 12USON |
624 |
|
Datasheet | - | 12-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 12 | 1 | 5µs | Voltage - Buffered | No | SPI, DSP | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.35, ±0.08 | String DAC | -40°C ~ 105°C | 12-USON (3x2) | Surface Mount | - | - |
|
MCP48FVB08T-20E/STIC DAC 8BIT V-OUT 20TSSOP |
2,420 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Not Verified | 8 | 4 | 7.8µs (Typ) | Voltage - Unbuffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.4LSB, ±0.05LSB | - | -40°C ~ 125°C | 20-TSSOP | Surface Mount | Automotive | AEC-Q100 |
|
|
MCP47FVB08T-20E/STIC DAC 8BIT V-OUT 20TSSOP |
2,319 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Not Verified | 8 | 8 | 6µs | Voltage - Buffered, Voltage - Unbuffered | No | I2C | External, Supply | - | - | ±0.25 (Max), - | - | -40°C ~ 125°C | 20-TSSOP | Surface Mount | - | - |
|
|
MCP47FEB08T-20E/STIC DAC 8BIT V-OUT 20TSSOP |
2,500 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Not Verified | 8 | 8 | 6µs | Voltage - Buffered, Voltage - Unbuffered | No | I2C | External, Supply | - | - | ±0.25 (Max), - | - | -40°C ~ 125°C | 20-TSSOP | Surface Mount | - | - |
|
|
MCP48FEB08T-20E/STIC DAC 8BIT V-OUT 20TSSOP |
2,039 |
|
Datasheet | MCP | 20-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Not Verified | 8 | 8 | 7.8µs (Typ) | Voltage - Unbuffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.1, ±0.0125LSB | - | -40°C ~ 125°C | 20-TSSOP | Surface Mount | - | - |
|
MCP48FEB08T-E/MQIC DAC 8BIT V-OUT 20VQFN |
1,002 |
|
Datasheet | MCP | 20-VQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 8 | 8 | 7.8µs (Typ) | Voltage - Unbuffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.1, ±0.0125LSB | - | -40°C ~ 125°C | 20-VQFN (5x5) | Surface Mount | - | - |
|
LTC2640CTS8-LZ8#TRMPBFIC DAC 8BIT V-OUT TSOT23-8 |
91 |
|
Datasheet | - | SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR) | Active | Not Verified | 8 | 1 | 3.2µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.05, ±0.5 (Max) | - | 0°C ~ 70°C | TSOT-23-8 | Surface Mount | - | - |
