Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC2633HTS8-LZ8IC DAC 8BIT V-OUT TSOT23-8 |
0 |
|
Datasheet | - | SOT-23-8 Thin, TSOT-23-8 | Tube | Obsolete | Not Verified | 8 | 2 | 3.4µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.05, ±0.5 (Max) | - | -40°C ~ 125°C | TSOT-23-8 | Surface Mount | - | - |
|

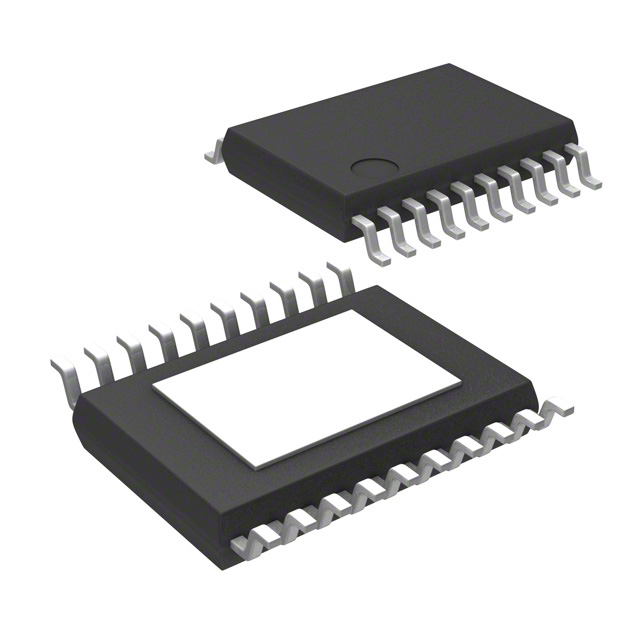

LTC2657BCFE-H16IC DAC 16BIT V-OUT 20TSSOP |
0 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Obsolete | Not Verified | 16 | 8 | 9.1µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 5V | 5V | ±2, ±0.3 | - | 0°C ~ 70°C | 20-TSSOP-EP | Surface Mount | - | - |
|
|
LTC2657BIFE-H16IC DAC 16BIT V-OUT 20TSSOP |
0 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Obsolete | Not Verified | 16 | 8 | 9.1µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 5V | 5V | ±2, ±0.3 | - | -40°C ~ 85°C | 20-TSSOP-EP | Surface Mount | - | - |
|
|
LTC2657CFE-H12IC DAC 12BIT V-OUT 20TSSOP |
0 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Obsolete | Not Verified | 12 | 8 | 3.9µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 5V | 5V | ±0.5, ±0.1 | - | 0°C ~ 70°C | 20-TSSOP-EP | Surface Mount | - | - |
|
|
LTC2657CFE-L12IC DAC 12BIT V-OUT 20TSSOP |
0 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Obsolete | Not Verified | 12 | 8 | 3.9µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.1 | - | 0°C ~ 70°C | 20-TSSOP-EP | Surface Mount | - | - |
|
|
LTC2657IFE-H12IC DAC 12BIT V-OUT 20TSSOP |
0 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Obsolete | Not Verified | 12 | 8 | 3.9µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 5V | 5V | ±0.5, ±0.1 | - | -40°C ~ 85°C | 20-TSSOP-EP | Surface Mount | - | - |
|

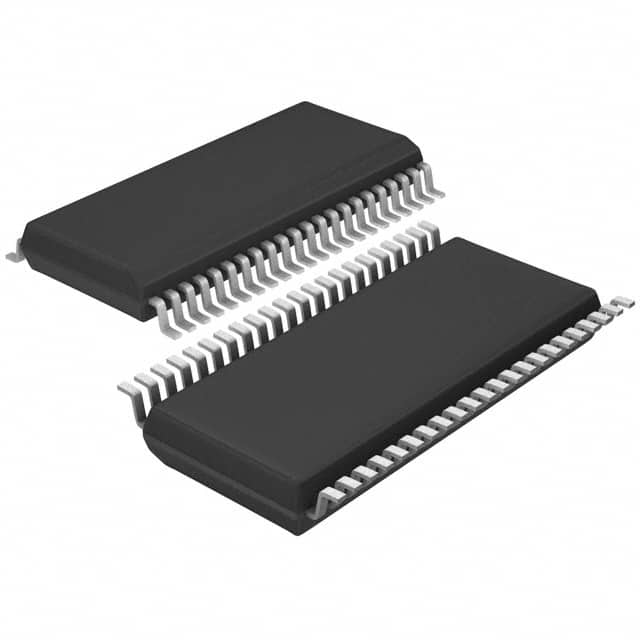

LTC2704CGW-12IC DAC 12BIT V-OUT 44SSOP |
0 |
|
Datasheet | SoftSpan™ | 44-BSOP (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 12 | 4 | 8µs (Typ) | Voltage - Buffered | No | SPI | External | ±4.5V ~ 16.5V | 2.7V ~ 5.5V | ±1 (Max), ±1 (Max) | - | 0°C ~ 70°C | 44-SSOP | Surface Mount | - | - |
|
|
LTC2704CGW-16IC DAC 16BIT V-OUT 44SSOP |
0 |
|
Datasheet | SoftSpan™ | 44-BSOP (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 16 | 4 | 10µs (Typ) | Voltage - Buffered | No | SPI | External | ±4.5V ~ 16.5V | 2.7V ~ 5.5V | ±2 (Max), ±1 (Max) | - | 0°C ~ 70°C | 44-SSOP | Surface Mount | - | - |
|
|
LTC2704IGW-12IC DAC 12BIT V-OUT 44SSOP |
0 |
|
Datasheet | SoftSpan™ | 44-BSOP (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 12 | 4 | 8µs (Typ) | Voltage - Buffered | No | SPI | External | ±4.5V ~ 16.5V | 2.7V ~ 5.5V | ±1 (Max), ±1 (Max) | - | -40°C ~ 85°C | 44-SSOP | Surface Mount | - | - |
|
|
LTC2704IGW-16IC DAC 16BIT V-OUT 44SSOP |
0 |
|
Datasheet | SoftSpan™ | 44-BSOP (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 16 | 4 | 10µs (Typ) | Voltage - Buffered | No | SPI | External | ±4.5V ~ 16.5V | 2.7V ~ 5.5V | ±2 (Max), ±1 (Max) | - | -40°C ~ 85°C | 44-SSOP | Surface Mount | - | - |
|
LTC2752ACLXIC DAC 16BIT A-OUT 48LQFP |
0 |
|
Datasheet | SoftSpan™ | 48-LQFP | Tube | Obsolete | Not Verified | 16 | 2 | 2µs (Typ) | Current - Unbuffered | Yes | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.4, ±0.2 | Multiplying DAC | 0°C ~ 70°C | 48-LQFP (7x7) | Surface Mount | - | - |
|
|
LTC2752BCLXIC DAC 16BIT A-OUT 48LQFP |
0 |
|
Datasheet | SoftSpan™ | 48-LQFP | Tube | Obsolete | Not Verified | 16 | 2 | 2µs (Typ) | Current - Unbuffered | Yes | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2 (Max), ±1 (Max) | Multiplying DAC | 0°C ~ 70°C | 48-LQFP (7x7) | Surface Mount | - | - |
|

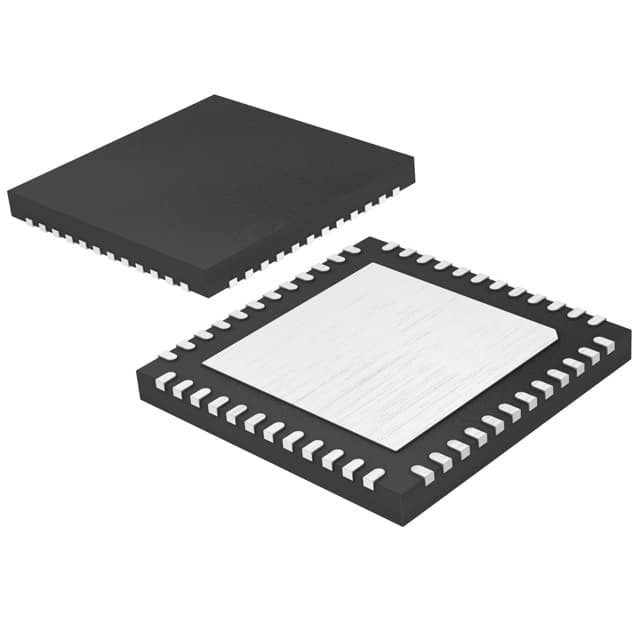

LTC2753AIUK-16IC DAC 16BIT A-OUT 48QFN |
0 |
|
Datasheet | SoftSpan™ | 48-WFQFN Exposed Pad | Tube | Obsolete | Not Verified | 16 | 2 | 2µs (Typ) | Current - Unbuffered | Yes | Parallel | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.4, ±0.2 | Multiplying DAC | -40°C ~ 85°C | 48-QFN (7x7) | Surface Mount | - | - |
|
|
LTC2753BCUK-16IC DAC 16BIT A-OUT 48QFN |
0 |
|
Datasheet | SoftSpan™ | 48-WFQFN Exposed Pad | Tube | Obsolete | Not Verified | 16 | 2 | 2µs (Typ) | Current - Unbuffered | Yes | Parallel | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2 (Max), ±1 (Max) | Multiplying DAC | 0°C ~ 70°C | 48-QFN (7x7) | Surface Mount | - | - |
|
|
LTC2753BIUK-16IC DAC 16BIT A-OUT 48QFN |
0 |
|
Datasheet | SoftSpan™ | 48-WFQFN Exposed Pad | Tube | Obsolete | Not Verified | 16 | 2 | 2µs (Typ) | Current - Unbuffered | Yes | Parallel | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2 (Max), ±1 (Max) | Multiplying DAC | -40°C ~ 85°C | 48-QFN (7x7) | Surface Mount | - | - |
|
LTC2754ACUKG-16IC DAC 16BIT A-OUT 52QFN |
0 |
|
- |
SoftSpan™ | 52-WFQFN Exposed Pad | Tube | Obsolete | Not Verified | 16 | 4 | 2µs (Typ) | Current - Unbuffered | Yes | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.4, ±0.2 | Multiplying DAC | 0°C ~ 70°C | 52-QFN (7x8) | Surface Mount | - | - |
|
|
LTC2754AIUKG-16IC DAC 16BIT A-OUT 52QFN |
0 |
|
- |
SoftSpan™ | 52-WFQFN Exposed Pad | Tube | Obsolete | Not Verified | 16 | 4 | 2µs (Typ) | Current - Unbuffered | Yes | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.4, ±0.2 | Multiplying DAC | -40°C ~ 85°C | 52-QFN (7x8) | Surface Mount | - | - |
|
|
LTC2754BCUKG-16IC DAC 16BIT A-OUT 52QFN |
0 |
|
- |
SoftSpan™ | 52-WFQFN Exposed Pad | Tube | Obsolete | Not Verified | 16 | 4 | 2µs (Typ) | Current - Unbuffered | Yes | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2 (Max), ±1 (Max) | Multiplying DAC | 0°C ~ 70°C | 52-QFN (7x8) | Surface Mount | - | - |
|
|
LTC2754BIUKG-16IC DAC 16BIT A-OUT 52QFN |
0 |
|
- |
SoftSpan™ | 52-WFQFN Exposed Pad | Tube | Obsolete | Not Verified | 16 | 4 | 2µs (Typ) | Current - Unbuffered | Yes | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2 (Max), ±1 (Max) | Multiplying DAC | -40°C ~ 85°C | 52-QFN (7x8) | Surface Mount | - | - |
|
|
LTC2754CUKG-12IC DAC 12BIT A-OUT 52QFN |
0 |
|
- |
SoftSpan™ | 52-WFQFN Exposed Pad | Tube | Obsolete | Not Verified | 12 | 4 | 2µs (Typ) | Current - Unbuffered | Yes | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1 (Max), ±1 (Max) | Multiplying DAC | 0°C ~ 70°C | 52-QFN (7x8) | Surface Mount | - | - |
