Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD5790BCPZ-RL7IC DAC 20BIT V-OUT 24LFCSP |
0 |
|
Datasheet | - | 24-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | 20 | 1 | 3.5µs (Typ) | Voltage - Unbuffered | No | SPI, DSP | External | 7.5V ~ 16.5V, -2.5V ~ 16.5V | 2.7V ~ 5.5V | ±1.2, -1/+3 | R-2R | -40°C ~ 125°C | 24-LFCSP-VQ (4x5) | Surface Mount | - | - |
|
DAC38J84IAAVRIC DAC 144FCBGA |
0 |
|
Datasheet | - | 144-FBGA, FCBGA | Tape & Reel (TR) | Active | Not Verified | 16 | 4 | 10ns (Typ) | Current - Unbuffered | Yes | JESD204B | External, Internal | 3.15V ~ 3.45V | 0.85V ~ 0.95V | ±6, ±4 | Current Source | -40°C ~ 85°C | 144-FCBGA (10x10) | Surface Mount | - | - |
|
|
DAC37J84IAAVRIC DAC 16BIT A-OUT 144FCBGA |
0 |
|
Datasheet | - | 144-FBGA, FCBGA | Tape & Reel (TR) | Active | Not Verified | 16 | 4 | 10ns (Typ) | Current - Unbuffered | Yes | JESD204B | External, Internal | 3.15V ~ 3.45V | 0.85V ~ 0.95V | ±6, ±4 | Current Source | -40°C ~ 85°C | 144-FCBGA (10x10) | Surface Mount | - | - |
|
|
DAC38RF93IAAVRIC DAC 144FCBGA |
0 |
|
Datasheet | - | 144-FBGA, FCBGA | Tape & Reel (TR) | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | 144-FCBGA (10x10) | Surface Mount | - | - |
|

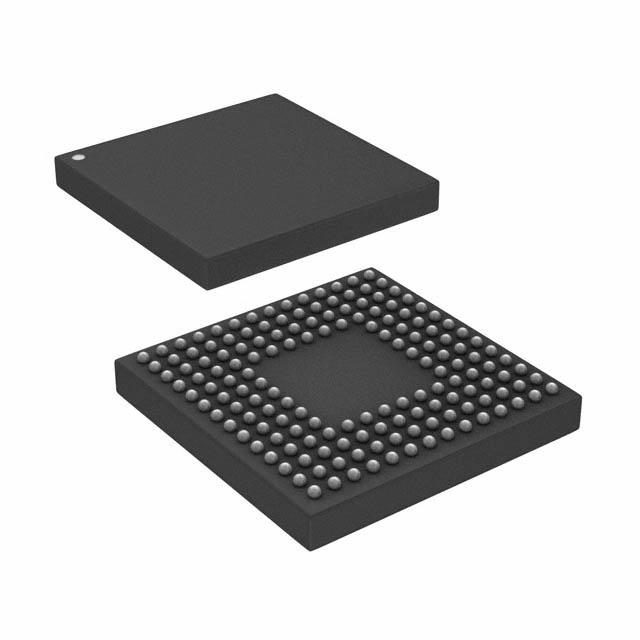

AD9739BBCRLIC DAC 14BIT A-OUT 160CSPBGA |
0 |
|
Datasheet | - | 160-LFBGA, CSPBGA | Tape & Reel (TR) | Active | Not Verified | 14 | 1 | 13ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.7V ~ 1.9V, 3.1V ~ 3.5V | 1.7V ~ 1.9V, 3.1V ~ 3.5V | ±1.3, ±0.8 | Quad-Switch | -40°C ~ 85°C | 160-CSPBGA (12x12) | Surface Mount | - | - |
|
|
DAC38RF85IAAVRDAC38RF85IAAVR |
0 |
|
Datasheet | - | 144-FBGA, FCBGA | Tape & Reel (TR) | Active | Not Verified | 14 | 2 | 1ns (Typ) | Voltage - Buffered | Yes | JESD204B | External, Internal | 1.71V ~ 1.89V | 0.95V ~ 1.05V | ±4, ±3 | Current Source | -40°C ~ 85°C | 144-FCBGA (10x10) | Surface Mount | - | - |
|
|
AD9129BBCIC DAC 14BIT A-OUT 160CSPBGA |
0 |
|
Datasheet | - | 160-LFBGA, CSPBGA | Tray | Active | Not Verified | 14 | 1 | 13ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.4, 1.1 | Quad-Switch | -40°C ~ 85°C | 160-CSPBGA (12x12) | Surface Mount | - | - |
|
DAC5675MPHPREPIC DAC 14BIT A-OUT 48HTQFP |
0 |
|
Datasheet | - | 48-PowerTQFP | Tape & Reel (TR) | Active | Not Verified | 14 | 1 | 12ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.15V ~ 3.6V | 3.15V ~ 3.6V | ±1.5, ±0.6 | Current Source | -55°C ~ 125°C | 48-HTQFP (7x7) | Surface Mount | - | - |
|

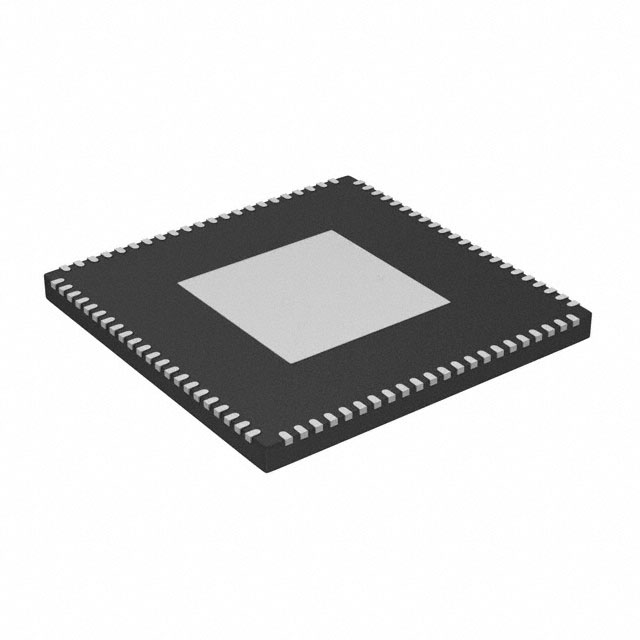

AD9144BCPZRLIC DAC 16BIT A-OUT 88LFCSP |
0 |
|
Datasheet | TxDAC+® | 88-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | 16 | 4 | 20ns (Typ) | Current - Unbuffered | Yes | JESD204B | Internal | 3.13V ~ 3.47V | 1.14V ~ 1.26V | ±2, ±1 | Oversampling Interpolating DAC | -40°C ~ 85°C | 88-LFCSP-VQ (12x12) | Surface Mount | - | - |
|
|
AD9154BCPZRLIC DAC 16BIT A-OUT 88LFCSP |
0 |
|
Datasheet | TxDAC+® | 88-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | 16 | 4 | - | Current - Unbuffered | Yes | JESD204B | Internal | 3.13V ~ 3.47V | 1.14V ~ 1.26V | ±8.2, ±4.3 | Quad-Switch | -40°C ~ 85°C | 88-LFCSP-VQ (12x12) | Surface Mount | - | - |
|

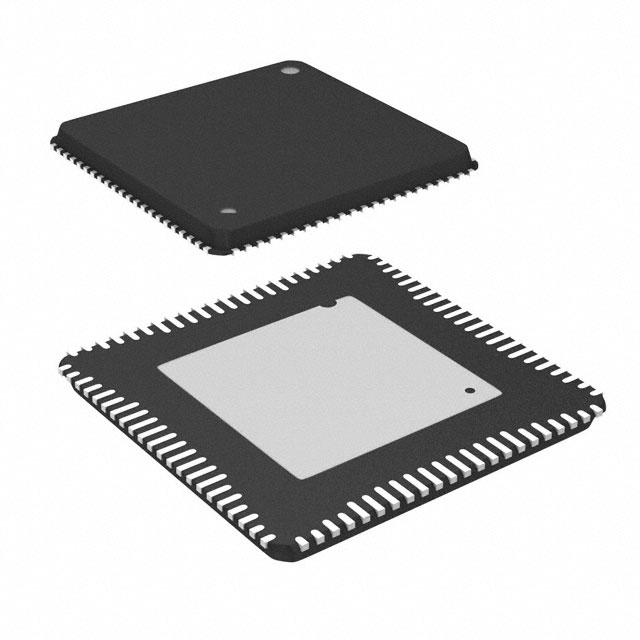

AD9144BCPAZRLIC DAC 16BIT A-OUT 88LFCSP |
0 |
|
Datasheet | TxDAC+® | 88-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | 16 | 4 | 20ns (Typ) | Current - Unbuffered | Yes | JESD204B | Internal | 3.13V ~ 3.47V | 1.14V ~ 1.26V | ±2, ±1 | Oversampling Interpolating DAC | -40°C ~ 85°C | 88-LFCSP-VQ (12x11.75) | Surface Mount | - | - |
|
|
AD9154BCPAZRLIC DAC 16BIT A-OUT 88LFCSP |
0 |
|
Datasheet | TxDAC+® | 88-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | 16 | 4 | - | Current - Unbuffered | Yes | JESD204B | Internal | 3.13V ~ 3.47V | 1.14V ~ 1.26V | ±8.2, ±4.3 | Quad-Switch | -40°C ~ 85°C | 88-LFCSP-VQ (12x11.75) | Surface Mount | - | - |
|
5962-87701022AIC DAC 8BIT A-OUT 20CLCC |
0 |
|
Datasheet | - | 20-CLCC | Tube | Active | Not Verified | 8 | 2 | 400ns | Current - Unbuffered | No | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±0.5 (Max), ±1 (Max) | R-2R | -55°C ~ 125°C | 20-CLCC (9x9) | Surface Mount | - | - |
|

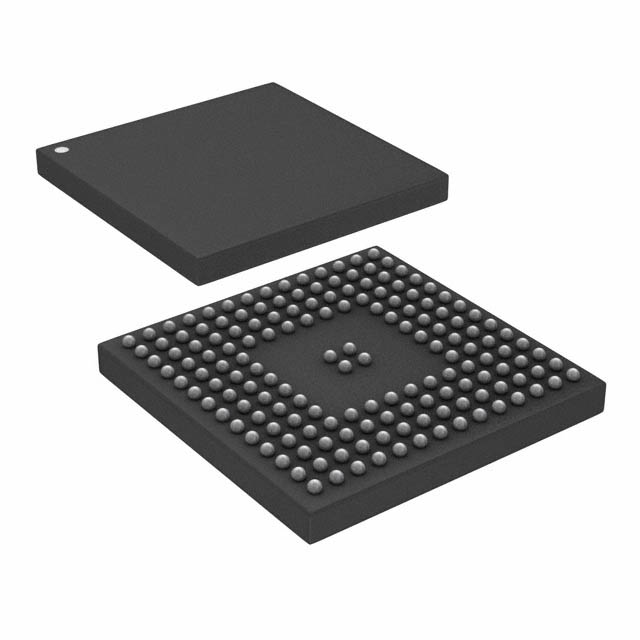

AD9789BBCIC DAC 14BIT A-OUT 164CSPBGA |
0 |
|
Datasheet | - | 164-LFBGA, CSPBGA | Tray | Active | Not Verified | 14 | 1 | 13ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel, Parallel | External, Internal | 3.14V ~ 3.47V | 1.43V ~ 1.58V, 1.71V ~ 1.89V, 3.14V ~ 3.47V | - | Oversampling Interpolating DAC | -40°C ~ 85°C | 164-CSPBGA (12x12) | Surface Mount | - | - |
|
|
AD9789BBCRLIC DAC 14BIT A-OUT 164CSPBGA |
0 |
|
Datasheet | - | 164-LFBGA, CSPBGA | Tape & Reel (TR) | Active | Not Verified | 14 | 1 | 13ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel, Parallel | External, Internal | 3.14V ~ 3.47V | 1.43V ~ 1.58V, 1.71V ~ 1.89V, 3.14V ~ 3.47V | - | Oversampling Interpolating DAC | -40°C ~ 85°C | 164-CSPBGA (12x12) | Surface Mount | - | - |
|
|
DAC38RF90IAAVRDAC38RF90IAAVR |
0 |
|
Datasheet | - | 144-FBGA, FCBGA | Tape & Reel (TR) | Active | Not Verified | 14 | 2 | 1ns (Typ) | Voltage - Buffered | No | JESD204B | External, Internal | 1.71V ~ 1.89V | 0.95V ~ 1.05V | ±4, ±2 | Current Source | -40°C ~ 85°C | 144-FCBGA (10x10) | Surface Mount | - | - |
|
AD9161BBCZRLIC DAC 11BIT A-OUT 169CSPBGA |
0 |
|
Datasheet | - | 169-VFBGA, CSPBGA | Tape & Reel (TR) | Active | Not Verified | 11 | 1 | - | Current - Unbuffered | No | JESD204B | External, Internal | 1.14V ~ 1.326V, 2.375V ~ 2.625V | 1.14V ~ 1.326V | ±2.7, ±1.7 | Quad-Switch | -40°C ~ 85°C | 169-CSPBGA (11x11) | Surface Mount | - | - |
|
|
AD9163BBCZRLIC DAC 16BIT A-OUT 169CSPBGA |
0 |
|
Datasheet | - | 169-VFBGA, CSPBGA | Tape & Reel (TR) | Active | Not Verified | 16 | 1 | - | Current - Unbuffered | No | JESD204B | External, Internal | 1.14V ~ 1.326V, 2.375V ~ 2.625V | 1.14V ~ 1.326V | ±2.7, ±1.7 | Quad-Switch | -40°C ~ 85°C | 169-CSPBGA (11x11) | Surface Mount | - | - |
|
|
DAC38RF90IAAVIC DAC 2 SE 144FCBGA |
0 |
|
Datasheet | - | 144-FBGA, FCBGA | Tray | Active | Not Verified | 14 | 2 | 1ns (Typ) | Voltage - Buffered | No | JESD204B | External, Internal | 1.71V ~ 1.89V | 0.95V ~ 1.05V | ±4, ±2 | Current Source | -40°C ~ 85°C | 144-FCBGA (10x10) | Surface Mount | - | - |
|
|
DAC38RF97IAAVRDAC38RF97IAAVR |
0 |
|
Datasheet | - | 144-FBGA, FCBGA | Tape & Reel (TR) | Active | Not Verified | 14 | 2 | 1ns (Typ) | Voltage - Buffered | Yes | JESD204B | External, Internal | 1.71V ~ 1.89V | 0.95V ~ 1.05V | - | Current Source | -40°C ~ 85°C | 144-FCBGA (10x10) | Surface Mount | - | - |
