Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC1650CN#PBFIC DAC 16BIT V-OUT 16DIP |
0 |
|
Datasheet | - | 16-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | 16 | 1 | 4µs (Typ) | Voltage - Buffered | No | SPI | External | ±5V | 5V | ±4, ±0.15 | - | 0°C ~ 70°C | 16-PDIP | Through Hole | - | - |
|
AD5545CRUZ-REEL7IC DAC 16BIT A-OUT 16TSSOP |
0 |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Not Verified | 16 | 2 | 500ns (Typ) | Current - Unbuffered | No | SPI | External | 5V | 5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 16-TSSOP | Surface Mount | - | - |
|
DAC3164IRGCTIC DAC 12BIT A-OUT 64VQFN |
1 |
|
Datasheet | - | 64-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 12 | 2 | 11ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.71V ~ 1.89V, 3.15V ~ 3.45V | 1.71V ~ 1.89V | ±0.5, ±0.2 | Current Source | -40°C ~ 85°C | 64-VQFN (9x9) | Surface Mount | - | - |
|
DAC8728SRTQTIC DAC 16BIT V-OUT 56QFN |
1 |
|
Datasheet | - | 56-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 16 | 8 | 15µs (Typ) | Voltage - Buffered | No | Parallel | External | 9V ~ 36V, ±4.5V ~ 18V | 2.7V ~ 5.5V | ±4 (Max), ±1 (Max) | String DAC | -40°C ~ 105°C | 56-QFN (8x8) | Surface Mount | - | - |
|

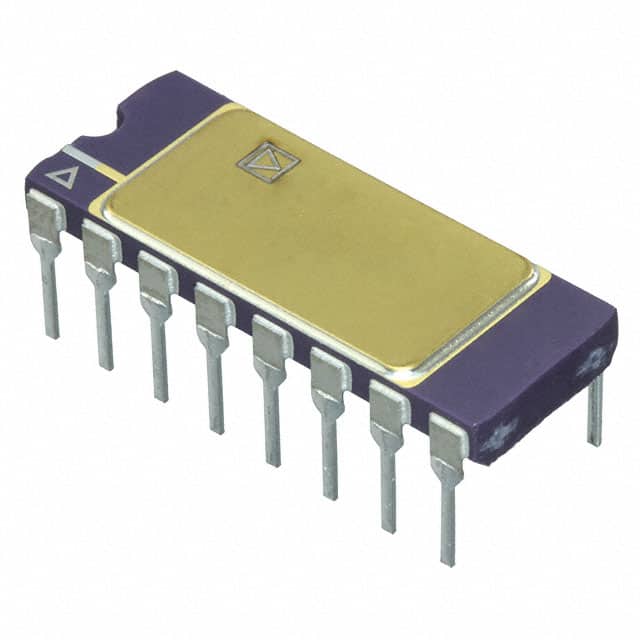

5962-8778902EAIC DAC 8BIT V-OUT 16CDAIP |
1 |
|
Datasheet | - | - | Tube | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DAC12DL3200ACFIC DAC 12BIT V-OUT 256FCBGA |
1 |
|
Datasheet | - | 256-BBGA, FCBGA | Box | Active | Not Verified | 12 | 2 | - | Voltage - Unbuffered | No | LVDS - Parallel | - | 0.95V ~ 1.05V, ±1.71V ~ 1.89V | 0.95V ~ 1.05V, ±1.71V ~ 1.89V | ±0.9LSB, ±0.6LSB | - | -40°C ~ 85°C | 256-FCBGA (17x17) | Surface Mount | - | - |
|
|
BD79702FV-LBE2D/A CONVERTERS 8BIT 4CH TYPE : T |
0 |
|
Datasheet | - | 14-LSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | - | 8 | 1 | 4.5µs | Voltage - Unbuffered | No | 3-Wire Serial | - | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5 (Max), ±0.5 (Max) | R-2R | -40°C ~ 125°C | 14-SSOPB | Surface Mount | - | - |
|
|
BD79703FV-LBE2D/A CONVERTERS 8BIT 6CH TYPE : T |
0 |
|
Datasheet | - | 14-LSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | - | 8 | 1 | 4.5µs | Voltage - Unbuffered | No | 3-Wire Serial | - | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5 (Max), ±0.5 (Max) | R-2R | -40°C ~ 125°C | 14-SSOPB | Surface Mount | - | - |
|
LTC2634HMSE-LMX10#PBFIC DAC 10BIT V-OUT 10MSOP |
0 |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Not Verified | 10 | 4 | 3.8µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.2, ±0.5 (Max) | - | -40°C ~ 125°C | 10-MSOP-EP | Surface Mount | - | - |
|
LTC2637IMS-HMX10#PBFIC DAC 10BIT V-OUT 16MSOP |
0 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) | Tube | Active | Not Verified | 10 | 8 | 4.3µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 5V | 5V | ±0.2, ±0.5 (Max) | - | -40°C ~ 85°C | 16-MSOP | Surface Mount | - | - |
|
|
LTC2636HMS-LMX10#PBFIC DAC 10BIT V-OUT 16MSOP |
0 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) | Tube | Active | Not Verified | 10 | 8 | 4µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.2, ±0.5 (Max) | - | -40°C ~ 125°C | 16-MSOP | Surface Mount | - | - |
|
LTC1458LCSW#PBFIC DAC 12BIT V-OUT 28SOIC |
0 |
|
Datasheet | - | 28-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 12 | 4 | 14µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2.25, ±0.5 (Max) | R-2R | 0°C ~ 70°C | 28-SOIC | Surface Mount | - | - |
|
|
LTC2686CUJ-12#PBF16 CHANNEL 12-BIT 15V SOFTSPAN D |
0 |
|
Datasheet | - | 40-WFQFN Exposed Pad | Tube | Active | - | 12 | 8 | 21µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 4.75V ~ 5.25V | 1.71V ~ 5.25V | ±0.75 (Max), ±0.25LSB (Max) | - | 0°C ~ 70°C | 40-QFN (6x6) | Surface Mount | - | - |
|
|
LTC1458LISW#PBFIC DAC 12BIT V-OUT 28SOIC |
0 |
|
Datasheet | - | 28-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 12 | 4 | 14µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2.25, ±0.5 (Max) | R-2R | -40°C ~ 85°C | 28-SOIC | Surface Mount | - | - |
|
|
LTC2688IUJ-12#PBF16 CHANNEL 12-BIT 15V SOFTSPAN D |
0 |
|
Datasheet | - | 40-WFQFN Exposed Pad | Tube | Active | - | 16 | 16 | 28µs | Voltage - Buffered | No | SPI | External, Internal | 4.75V ~ 5.25V | 1.71V ~ 5.55V | ±3 (Max), ±1 (Max) | Multiplying DAC | -40°C ~ 85°C | 40-QFN (6x6) | Surface Mount | - | - |
|
|
DAC39RF10ACK16-BIT 2-CHANNEL 20.48-GSPS 12 |
1 |
|
Datasheet | - | 256-BBGA, FCBGA | Bulk | Active | - | 16 | 2 | - | Current - Unbuffered | Yes | JESD204B | Internal | 0.95V ~ 1.05V, 1.71V ~ 1.89V | 0.95V ~ 1.05V | ±9, ±2.2 | Current Source | -40°C ~ 85°C | 256-FCBGA (17x17) | Surface Mount | - | - |
|
DAC081C081CISDX/NOPBIC DAC 8BIT V-OUT 6WSON |
0 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 8 | 1 | 4.5µs | Voltage - Buffered | No | I2C | Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.14, +0.04/-0.02 | String DAC | -40°C ~ 125°C | 6-WSON (2.2x2.5) | Surface Mount | - | - |
|
DAC101S101CIMMX/NOPBIC DAC 10BIT V-OUT 8VSSOP |
0 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 10 | 1 | 7.5µs | Voltage - Buffered | No | SPI, DSP | Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.6, +0.15/-0.05 | String DAC | -40°C ~ 105°C | 8-VSSOP | Surface Mount | - | - |
|
MCP47FVB01A0T-E/STIC DAC 8BIT V-OUT 8TSSOP |
0 |
|
Datasheet | - | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Not Verified | 8 | 1 | 6µs (Typ) | Voltage - Buffered | No | I2C | External, Internal, Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.1, ±0.0125 | R-2R | -40°C ~ 125°C | 8-TSSOP | Surface Mount | - | - |
|
|
MCP47FVB01A1T-E/STIC DAC 8BIT V-OUT 8TSSOP |
0 |
|
Datasheet | - | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Not Verified | 8 | 1 | 6µs (Typ) | Voltage - Buffered | No | I2C | External, Internal, Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.1, ±0.0125 | R-2R | -40°C ~ 125°C | 8-TSSOP | Surface Mount | - | - |
