Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD5065BRUZIC DAC 16BIT V-OUT 14TSSOP |
2,491 |
|
Datasheet | nanoDAC® | 14-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 16 | 2 | 13µs | Voltage - Buffered | No | SPI, DSP | External | 5V | 5V | ±0.4, ±0.2 | R-2R | -40°C ~ 125°C | 14-TSSOP | Surface Mount | - | - |
|
AD5676ARUZ-REEL7IC DAC 16BIT V-OUT 20TSSOP |
912 |
|
Datasheet | nanoDAC+® | 20-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Not Verified | 16 | 8 | 8µs | Voltage - Buffered | No | SPI, DSP | External | 2.7V ~ 5.5V | 1.8V ~ 5.5V | ±1.8, ±0.7 | String DAC | -40°C ~ 125°C | 20-TSSOP | Surface Mount | - | - |
|

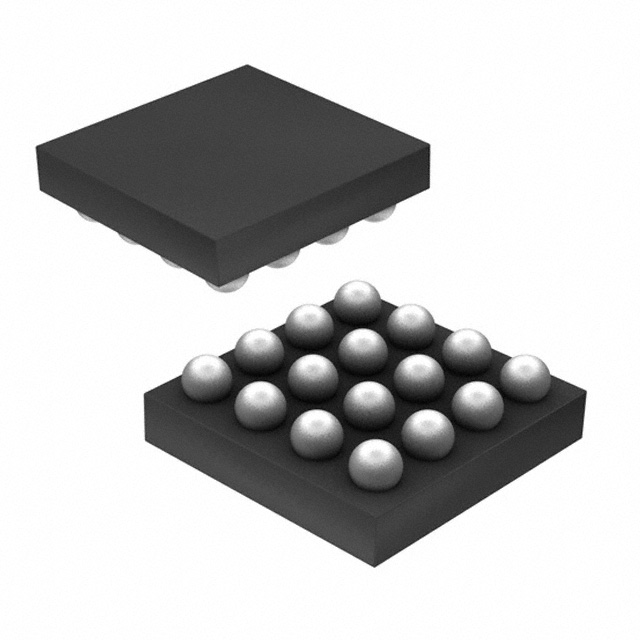

AD5628BCBZ-1-RL7IC DAC 12BIT V-OUT 16WLCSP |
2,973 |
|
Datasheet | denseDAC | 16-UFBGA, WLCSP | Tape & Reel (TR) | Active | Not Verified | 12 | 8 | 7µs | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.25 (Max) | String DAC | -40°C ~ 105°C | 16-WLCSP (2.61x2.61) | Surface Mount | - | - |
|
|
AD5666ARUZ-2IC DAC 16BIT V-OUT 14TSSOP |
894 |
|
Datasheet | - | 14-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 16 | 4 | 10µs | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±32 (Max), ±1 (Max) | String DAC | -40°C ~ 105°C | 14-TSSOP | Surface Mount | - | - |
|
AD5628ARUZ-2IC DAC 12BIT V-OUT 16TSSOP |
276 |
|
Datasheet | denseDAC | 16-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 12 | 8 | 7µs | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.25 (Max) | String DAC | -40°C ~ 105°C | 16-TSSOP | Surface Mount | - | - |
|
AD5324BRMZ-REEL7IC DAC 12BIT V-OUT 10MSOP |
1,884 |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Not Verified | 12 | 4 | 10µs | Voltage - Buffered | No | SPI, DSP | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±2, ±0.2 | String DAC | -40°C ~ 105°C | 10-MSOP | Surface Mount | - | - |
|
AD5686RACPZ-RL7IC DAC 16BIT V-OUT 16LFCSP |
2,160 |
|
Datasheet | nanoDAC+® | 16-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | 16 | 4 | 8µs | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 1.8V ~ 5.5V | ±2, ±1 (Max) | String DAC | -40°C ~ 105°C | 16-LFCSP (3x3) | Surface Mount | - | - |
|
AD7224KRZ-18REELIC DAC 8BIT V-OUT 18SOIC |
770 |
|
Datasheet | - | 18-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | 8 | 1 | 20µs | Voltage - Buffered | No | Parallel | External | 11.4V ~ 16.5V, ±5V | 14.25V ~ 15.75V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 18-SOIC | Surface Mount | - | - |
|
DAC8811IBDGKTIC DAC 16BIT A-OUT 8VSSOP |
1,871 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Not Verified | 16 | 1 | 500ns (Typ) | Current - Unbuffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2, ±1 | Multiplying DAC | -40°C ~ 85°C | 8-VSSOP | Surface Mount | - | - |
|
|
DAC8811ICDGKTIC DAC 16BIT A-OUT 8VSSOP |
1,089 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Not Verified | 16 | 1 | 500ns (Typ) | Current - Unbuffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1, ±1 | Multiplying DAC | -40°C ~ 85°C | 8-VSSOP | Surface Mount | - | - |
|
|
AD5629RARUZ-1IC DAC 12BIT V-OUT 16TSSOP |
198 |
|
Datasheet | denseDAC | 16-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 12 | 8 | 7µs | Voltage - Buffered | No | I2C | External, Internal | 2.7V ~ 3.6V | 2.7V ~ 3.6V | ±0.5, ±0.25 (Max) | String DAC | -40°C ~ 105°C | 16-TSSOP | Surface Mount | - | - |
|
AD5665RBCPZ-REEL7IC DAC 16BIT V-OUT 10LFCSP |
1,353 |
|
Datasheet | nanoDAC® | 10-VFDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | 16 | 4 | 7µs | Voltage - Buffered | No | I2C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±8, ±1 (Max) | String DAC | -40°C ~ 105°C | 10-LFCSP-WD (3x3) | Surface Mount | - | - |
|
LTC2620CGN#TRPBFIC DAC 12BIT V-OUT 16SSOP |
4,151 |
|
Datasheet | - | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | 12 | 8 | 7µs (Typ) | Voltage - Buffered | No | SPI | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.75, ±0.5 (Max) | - | 0°C ~ 70°C | 16-SSOP | Surface Mount | - | - |
|
|
LTC2620CGN#PBFIC DAC 12BIT V-OUT 16SSOP |
1,021 |
|
Datasheet | - | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Not Verified | 12 | 8 | 7µs (Typ) | Voltage - Buffered | No | SPI | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.75, ±0.5 (Max) | - | 0°C ~ 70°C | 16-SSOP | Surface Mount | - | - |
|
LTC2636IDE-LZ12#PBFIC DAC 12BIT V-OUT 14DFN |
340 |
|
Datasheet | - | 14-WFDFN Exposed Pad | Tube | Active | Not Verified | 12 | 8 | 4.4µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1, ±1 (Max) | - | -40°C ~ 85°C | 14-DFN (4x3) | Surface Mount | - | - |
|
|
LTC2636IDE-HZ12#PBFIC DAC 12BIT V-OUT 14DFN |
296 |
|
Datasheet | - | 14-WFDFN Exposed Pad | Tube | Active | Not Verified | 12 | 8 | 4.8µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 5V | 5V | ±1, ±1 (Max) | - | -40°C ~ 85°C | 14-DFN (4x3) | Surface Mount | - | - |
|
DAC904EIC DAC 14BIT A-OUT 28TSSOP |
156 |
|
Datasheet | SpeedPlus™ | 28-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 14 | 1 | 30ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±3, ±2.5 | Current Source | -40°C ~ 85°C | 28-TSSOP | Surface Mount | - | - |
|
LTC1655CN8#PBFIC DAC 16BIT V-OUT 8DIP |
300 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | 16 | 1 | 20µs (Typ) | Voltage - Buffered | No | SPI | Internal | 5V | 5V | ±8, ±0.3 | - | 0°C ~ 70°C | 8-PDIP | Through Hole | - | - |
|
|
AD5665BRUZIC DAC 16BIT V-OUT 14TSSOP |
1,708 |
|
Datasheet | nanoDAC® | 14-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 16 | 4 | 7µs | Voltage - Buffered | No | I2C | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±8, ±1 (Max) | String DAC | -40°C ~ 105°C | 14-TSSOP | Surface Mount | - | - |
|
DAC70508MRTETIC DAC 14BIT V-OUT 16WQFN |
507 |
|
Datasheet | - | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 14 | 8 | 5µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 1.7V ~ 5.5V | ±0.5, ±0.5 | R-2R | -40°C ~ 125°C (TA) | 16-WQFN (3x3) | Surface Mount | - | - |
