Analog to Digital Converters (ADC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Bits | Sampling Rate (Per Second) | Number of Inputs | Input Type | Data Interface | Configuration | Ratio - S/H:ADC | Number of A/D Converters | Architecture | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | Features | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC2123IUK#PBFIC ADC 14BIT PIPELINED 48QFN |
29 |
|
Datasheet | - | 48-WFQFN Exposed Pad | Tube | Active | 14 | 250M | 2 | Differential | JESD204B | S/H-ADC | 1:1 | 2 | Pipelined | External, Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | Simultaneous Sampling | -40°C ~ 85°C | 48-QFN (7x7) | Surface Mount | - | - |
|
LTC2195IUKG#PBFIC ADC 16BIT PIPELINED 52QFN |
71 |
|
Datasheet | - | 52-WFQFN Exposed Pad | Tube | Active | 16 | 125M | 2 | Differential | LVDS - Serial | S/H-ADC | 1:1 | 2 | Pipelined | External, Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | Simultaneous Sampling | -40°C ~ 85°C | 52-QFN (7x8) | Surface Mount | - | - |
|
AD9650BCPZ-80IC ADC 16BIT PIPELINED 64LFCSP |
8 |
|
Datasheet | - | 64-VFQFN Exposed Pad, CSP | Tray | Active | 16 | 80M | 2 | Differential | LVDS - Parallel, Parallel | S/H-ADC | 1:1 | 2 | Pipelined | External, Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | Simultaneous Sampling | -40°C ~ 85°C | 64-LFCSP-VQ (9x9) | Surface Mount | - | - |
|
LTC2156IUP-14#PBFIC ADC 14BIT PIPELINED 64QFN |
39 |
|
Datasheet | - | 64-WFQFN Exposed Pad | Tube | Active | 14 | 210M | 2 | Differential | LVDS - Parallel | S/H-ADC | 1:1 | 2 | Pipelined | External, Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | Simultaneous Sampling | -40°C ~ 85°C | 64-QFN (9x9) | Surface Mount | - | - |
|
|
LTC2157CUP-14#PBFIC ADC 14BIT PIPELINED 64QFN |
47 |
|
Datasheet | - | 64-WFQFN Exposed Pad | Tube | Active | 14 | 250M | 2 | Differential | LVDS - Parallel | S/H-ADC | 1:1 | 2 | Pipelined | External, Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | Simultaneous Sampling | 0°C ~ 70°C | 64-QFN (9x9) | Surface Mount | - | - |
|
|
AD9268BCPZ-125IC ADC 16BIT PIPELINED 64LFCSP |
27 |
|
Datasheet | - | 64-VFQFN Exposed Pad, CSP | Tray | Active | 16 | 125M | 2 | Differential | LVDS - Parallel, Parallel | S/H-ADC | 1:1 | 2 | Pipelined | External, Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | Simultaneous Sampling | -40°C ~ 85°C | 64-LFCSP-VQ (9x9) | Surface Mount | - | - |
|
AD9253TCPZ-125EPIC ADC 14BIT PIPELINED 48LFCSP |
0 |
|
Datasheet | - | 48-WFQFN Exposed Pad, CSP | Tray | Active | 14 | 125M | 4 | Differential | LVDS - Serial | S/H-ADC | 1:1 | 4 | Pipelined | Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | Simultaneous Sampling | -55°C ~ 125°C (TA) | 48-LFCSP (7x7) | Surface Mount | - | - |
|
LTM9011IY-14#PBFIC ADC 14BIT PIPELINED 140BGA |
50 |
|
Datasheet | - | 140-BFBGA | Tray | Active | 14 | 125M | 8 | Differential | LVDS - Serial | S/H-ADC | 1:1 | 8 | Pipelined | External, Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | Simultaneous Sampling | -40°C ~ 85°C | 140-BGA (11.25x9) | Surface Mount | - | - |
|

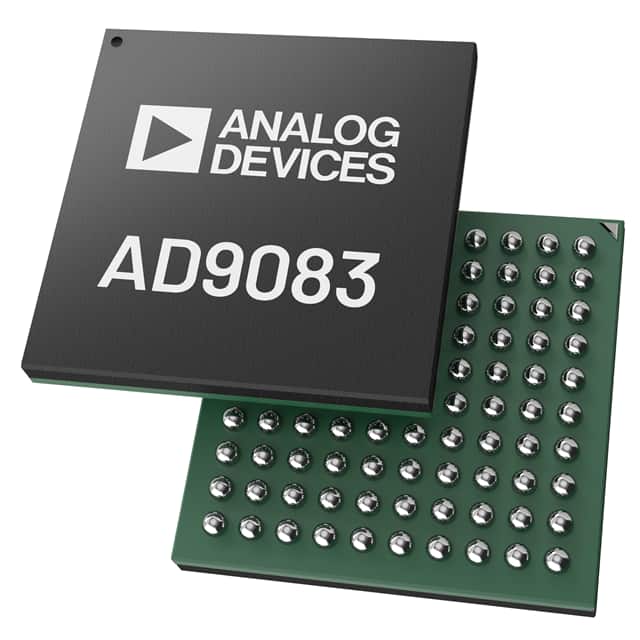

AD9083BBCZIC ADC 16BIT SIG-DELTA 100CSPBGA |
5 |
|
Datasheet | - | 100-LFBGA, CSPBGA | Tray | Active | 16 | 2G | 16 | Differential | JESD204B, Serial, SPI | ADC | 0:16 | 16 | Sigma-Delta | - | 0.95V ~ 1.05V, 1.7V ~ 1.9V | 0.95V ~ 1.05V, 1.7V ~ 1.9V | Temperature Sensor | -40°C ~ 115°C | 100-CSPBGA (9x9) | Surface Mount | - | - |
|
AD9625BBPZ-2.5IC ADC 12BIT 196BGA |
0 |
|
Datasheet | - | 196-LFBGA Exposed Pad | Tray | Active | 12 | 2.5G | 1 | Differential | JESD204B | S/H-ADC | 1:1 | 1 | Pipelined | Internal | 1.26V ~ 1.32V, 2.4V ~ 2.6V | 1.26V ~ 1.32V, 2.4V ~ 2.6V | - | -40°C ~ 85°C | 196-BGA-ED (12x12) | Surface Mount | - | - |
|
AD9695BCPZ-1300IC ADC 14BIT PIPELINED 64LFCSP |
15 |
|
Datasheet | - | 64-WFQFN Exposed Pad, CSP | Tray | Active | 14 | 1.3G | 2 | Differential | JESD204B | S/H-ADC | 1:1 | 2 | Pipelined | Internal | 0.93V ~ 2.56V | 0.93V ~ 2.56V | Simultaneous Sampling | -40°C ~ 85°C | 64-LFCSP (9x9) | Surface Mount | - | - |
|
AD9689BBPZ-2000IC ADC 14BIT PIPELINED 196BGA |
3 |
|
Datasheet | - | 196-LFBGA Exposed Pad | Tray | Active | 14 | 2G | 2 | Differential | JESD204B | S/H-ADC | 1:1 | 2 | Pipelined | External, Internal | 0.95V ~ 1V, 1.85V ~ 1.95V, 2.44V ~ 2.56V | 0.95V ~ 1V, 1.85V ~ 1.95V | - | -40°C ~ 85°C | 196-BGA-ED (12x12) | Surface Mount | - | - |
|
ADS7040IDCURIC ADC 8BIT SAR 8VSSOP |
5,142 |
|
Datasheet | - | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | 8 | 1M | 1 | Single Ended | SPI | S/H-ADC | 1:1 | 1 | SAR | Supply | 1.65V ~ 3.6V | 1.65V ~ 3.6V | - | -40°C ~ 125°C | 8-VSSOP | Surface Mount | - | - |
|
ADS7040IRUGRIC ADC 8BIT SAR 8X2QFN |
802 |
|
Datasheet | - | 8-XFQFN | Tape & Reel (TR) | Active | 8 | 1M | 1 | Single Ended | SPI | S/H-ADC | 1:1 | 1 | SAR | Supply | 1.65V ~ 3.6V | 1.65V ~ 3.6V | - | -40°C ~ 125°C | 8-X2QFN (1.5x1.5) | Surface Mount | - | - |
|
MCP3021A6T-E/OTIC ADC 10BIT SAR SOT23-5 |
2,275 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | 10 | 22.3k | 1 | Single Ended | I2C | S/H-ADC | 1:1 | 1 | SAR | Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | - | -40°C ~ 125°C | SOT-23-5 | Surface Mount | - | - |
|
|
MCP3021A4T-E/OTIC ADC 10BIT SAR SOT23-5 |
2,169 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | 10 | 22.3k | 1 | Single Ended | I2C | S/H-ADC | 1:1 | 1 | SAR | Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | - | -40°C ~ 125°C | SOT-23-5 | Surface Mount | - | - |
|
|
ADS7040IDCUTIC ADC 8BIT SAR 8VSSOP |
950 |
|
Datasheet | - | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | 8 | 1M | 1 | Single Ended | SPI | S/H-ADC | 1:1 | 1 | SAR | Supply | 1.65V ~ 3.6V | 1.65V ~ 3.6V | - | -40°C ~ 125°C | 8-VSSOP | Surface Mount | - | - |
|
ADC081S051CIMF/NOPBIC ADC 8BIT SAR SOT23-6 |
461 |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Active | 8 | 500k | 1 | Single Ended | SPI, DSP | S/H-ADC | 1:1 | 1 | SAR | Supply | 2.7V ~ 5.25V | 2.7V ~ 5.25V | - | -40°C ~ 85°C | SOT-23-6 | Surface Mount | - | - |
|
TLA2021IRUGTIC ADC 12BIT SIGMA-DELTA 10X2QFN |
3,661 |
|
Datasheet | - | 10-XFQFN | Tape & Reel (TR) | Active | 12 | 3.3k | 1 | Differential, Single Ended | I2C | ADC | 0:1 | 1 | Sigma-Delta | Internal | 2V ~ 5.5V | 2V ~ 5.5V | Selectable Address | -40°C ~ 85°C | 10-X2QFN (2x1.5) | Surface Mount | - | - |
|
ADC082S021CIMM/NOPBIC ADC 8BIT SAR 8VSSOP |
6,274 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | 8 | 200k | 2 | Single Ended | SPI, DSP | MUX-S/H-ADC | 1:1 | 1 | SAR | Supply | 2.7V ~ 5.25V | 2.7V ~ 5.25V | - | -40°C ~ 85°C | 8-VSSOP | Surface Mount | - | - |
