Analog to Digital Converters (ADC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Bits | Sampling Rate (Per Second) | Number of Inputs | Input Type | Data Interface | Configuration | Ratio - S/H:ADC | Number of A/D Converters | Architecture | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | Features | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

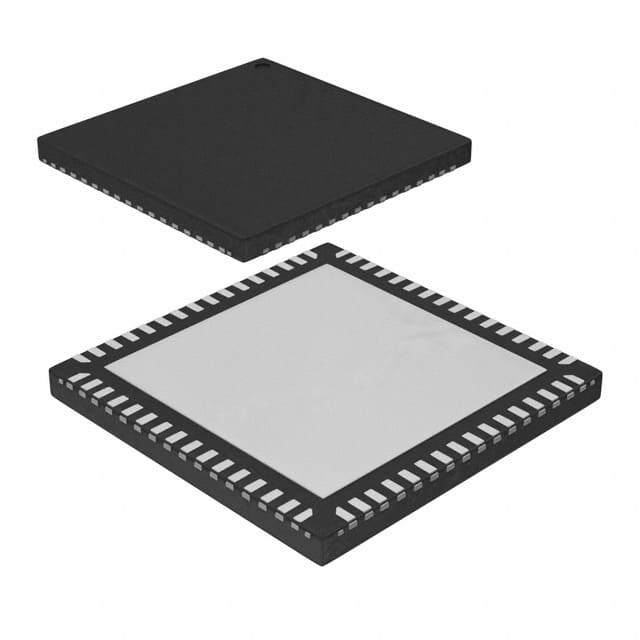

HMCAD5831LP9BEIC ADC 3BIT FLASH 64SMT |
0 |
|
Datasheet | - | 64-VFQFN Exposed Pad | Bulk | Obsolete | 3 | 26G | 1 | Single Ended | - | ADC | - | 1 | Flash | External | -5V | -3.3V | - | -40°C ~ 85°C | 64-SMT (9x9) | Surface Mount | - | - |
|

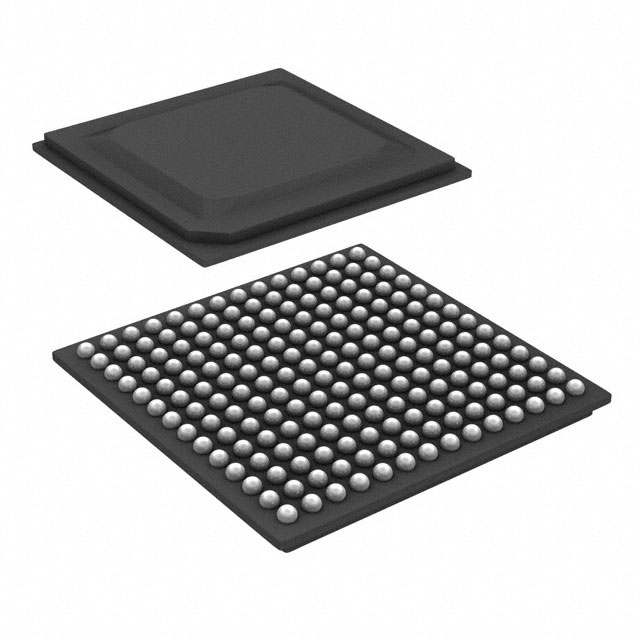

AD9684BBPZRL7-500IC ADC 14BIT PIPELINED 196BGA |
0 |
|
Datasheet | - | 196-LFBGA Exposed Pad | Tape & Reel (TR) | Active | 14 | 500M | 2 | Differential | LVDS - Parallel | S/H-ADC | 1:1 | 1 | Pipelined | External, Internal | 1.25V, 2.5V | 1.22V ~ 1.28V | - | -40°C ~ 85°C | 196-BGA-ED (12x12) | Surface Mount | - | - |
|
|
HMCAD5831LP9BETRIC ADC 3BIT FLASH 64SMT |
0 |
|
Datasheet | - | 64-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | 3 | 26G | 1 | Single Ended | SPI | ADC | - | 1 | Flash | External | 5V | 3V ~ 3.6V | - | -40°C ~ 85°C | 64-SMT (9x9) | Surface Mount | - | - |
|
MCP37210T-200I/TLIC ADC 12BIT PIPELINED 124VTLA |
0 |
|
Datasheet | - | 124-VFTLA Dual Rows, Exposed Pad | Tape & Reel (TR) | Active | 12 | 200M | 1 | Differential | LVDS - Parallel, Parallel | S/H-ADC | 1:1 | 1 | Pipelined | Internal | 1.2V, 1.8V | 1.2V, 1.8V | - | -40°C ~ 85°C | 124-VTLA (9x9) | Surface Mount | - | - |
|
|
MCP37D20T-200I/TLIC ADC 14BIT PIPELINED 124VTLA |
0 |
|
Datasheet | - | 124-VFTLA Dual Rows, Exposed Pad | Tape & Reel (TR) | Active | 14 | 200M | 1 | Differential | LVDS - Parallel, Parallel | S/H-ADC | 1:1 | 1 | Pipelined | Internal | 1.2V, 1.8V | 1.2V, 1.8V | - | -40°C ~ 85°C | 124-VTLA (9x9) | Surface Mount | - | - |
|
MM74C949NIC ADC 8BIT MPU 8CH MUX 28DIP |
0 |
|
- |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 28-PDIP | Through Hole | - | - |
|
V62/07642-01XEIC ADC 24BIT SIGMA-DELTA 28SSOP |
0 |
|
Datasheet | - | 28-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | 24 | 216k | 2 | Differential | I2S, PCM | ADC | - | 2 | Sigma-Delta | Internal | 5V | 3V ~ 3.6V | Simultaneous Sampling | -40°C ~ 85°C | 28-SSOP | Surface Mount | - | - |
|
MCP37220-200I/TEIC ADC 14BIT PIPELINED 121TFBGA |
0 |
|
Datasheet | - | 121-TFBGA | Tray | Active | 14 | 200M | 1 | Differential | LVDS - Parallel, Parallel | S/H-ADC | 1:1 | 1 | Pipelined | Internal | 1.14V ~ 1.26V, 1.71V ~ 1.89V | 1.14V ~ 1.26V, 1.71V ~ 1.89V | - | -40°C ~ 85°C | 121-TFBGA (8x8) | Surface Mount | - | - |
|
|
MCP37231T-200I/TEIC ADC 16BIT PIPELINED 121TFBGA |
0 |
|
Datasheet | - | 121-TFBGA | Tape & Reel (TR) | Active | 16 | 200M | 1, 2, 4, 8 | Differential | LVDS - Parallel, Serial | S/H-MUX-ADC | 1:1 | 1 | Pipelined | Internal | 1.14V ~ 1.26V, 1.71V ~ 1.89V | 1.14V ~ 1.26V, 1.71V ~ 1.89V | - | -40°C ~ 85°C | 121-TFBGA (8x8) | Surface Mount | - | - |
|
|
MCP37D11T-200I/TEIC ADC 12BIT PIPELINED 121TFBGA |
0 |
|
Datasheet | - | 121-TFBGA | Tape & Reel (TR) | Active | 12 | 200M | 8 | Differential | LVDS - Parallel, Serial | S/H-MUX-ADC | 1:1 | 1 | Pipelined | Internal | 1.14V ~ 1.26V, 1.71V ~ 1.89V | 1.14V ~ 1.26V, 1.71V ~ 1.89V | - | -40°C ~ 85°C | 121-TFBGA (8x8) | Surface Mount | - | - |
|
|
MCP37D31T-200I/TEIC ADC 16BIT PIPELINED 121TFBGA |
0 |
|
Datasheet | - | 121-TFBGA | Tape & Reel (TR) | Active | 16 | 200M | 8 | Differential | LVDS - Parallel, Serial | S/H-MUX-ADC | 1:1 | 1 | Pipelined | Internal | 1.14V ~ 1.26V, 1.71V ~ 1.89V | 1.14V ~ 1.26V, 1.71V ~ 1.89V | - | -40°C ~ 85°C | 121-TFBGA (8x8) | Surface Mount | - | - |
|
|
MCP37D31-200I/TEIC ADC 16BIT PIPELINED 121TFBGA |
0 |
|
Datasheet | - | 121-TFBGA | Tray | Active | 16 | 200M | 1, 2, 4, 8 | Differential | LVDS - Parallel, Parallel | MUX-ADC | - | 1 | Pipelined | Internal | 1.14V ~ 1.26V, 1.71V ~ 1.89V | 1.14V ~ 1.26V, 1.71V ~ 1.89V | - | -40°C ~ 85°C | 121-TFBGA (8x8) | Surface Mount | - | - |
|
AD7572AJR10Z-REELIC ADC 12BIT SAR 24SOIC |
0 |
|
Datasheet | - | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 12 | - | 1 | Single Ended | Parallel | ADC | 0:1 | 1 | SAR | Internal | 5V, -11.4V ~ 16.5V | +5V, -11.4V ~ 16.5V | - | 0°C ~ 70°C | 24-SOIC | Surface Mount | - | - |
|
AD7870LP-REELIC ADC 12BIT SAR 28PLCC |
0 |
|
Datasheet | - | 28-LCC (J-Lead) | Tape & Reel (TR) | Obsolete | 12 | 100k | 1 | Single Ended | SPI, Parallel | S/H-ADC | 1:1 | 1 | SAR | Internal | ±5V | ±5V | - | 0°C ~ 70°C | 28-PLCC (11.51x11.51) | Surface Mount | - | - |
|
|
AD9057BRSRL60SP211IC ADC 8BIT 20SSOP |
0 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AD7575TCHIPSIC ADC 8BIT SAR DIE |
0 |
|
- |
- | Die | Bulk | Obsolete | 8 | - | 1 | Single Ended | Parallel | S/H-ADC | 1:1 | 1 | SAR | External | 5V | 5V | - | -55°C ~ 125°C | Die | Surface Mount | - | - |
|
|
AD7715ACHIPS-3IC ADC 16BIT SIGMA-DELTA CHIP |
0 |
|
Datasheet | - | Die | Bulk | Obsolete | 16 | - | 1 | Differential | SPI, DSP | PGA-ADC | - | 1 | Sigma-Delta | External | 3V ~ 3.6V | 3V ~ 3.6V | PGA | -40°C ~ 85°C | Chip | Surface Mount | - | - |
|
|
AD7715ACHIPS-5IC ADC 16BIT SIGMA-DELTA CHIP |
0 |
|
Datasheet | - | Die | Bulk | Obsolete | 16 | - | 1 | Differential | SPI, DSP | PGA-ADC | - | 1 | Sigma-Delta | External | 5V | 5V | PGA | -40°C ~ 85°C | Chip | Surface Mount | - | - |
|
|
AD7716-DFIC ADC 22BIT SIGMA-DELTA |
0 |
|
- |
- | - | Bulk | Obsolete | 22 | 2.2k | 4 | Single Ended | SPI | ADC | - | 4 | Sigma-Delta | External | 5V | 5V | Simultaneous Sampling | -40°C ~ 85°C | - | - | - | - |
|
AD7995YRMZ-0IC ADC 10BIT SAR 8MSOP |
0 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Obsolete | 10 | 140k | 3, 4 | Single Ended | I2C | MUX-S/H-ADC | 1:1 | 1 | SAR | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | - | -40°C ~ 125°C | 8-MSOP | Surface Mount | - | - |
