Analog to Digital Converters (ADC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Bits | Sampling Rate (Per Second) | Number of Inputs | Input Type | Data Interface | Configuration | Ratio - S/H:ADC | Number of A/D Converters | Architecture | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | Features | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADS7806UG4IC ADC 12BIT SAR 28SOIC |
0 |
|
Datasheet | - | 28-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | 12 | 40k | 1 | Single Ended | SPI, Parallel | S/H-ADC | 1:1 | 1 | SAR | External, Internal | 5V | 5V | - | -40°C ~ 85°C | 28-SOIC | Surface Mount | - | - |
|
ADS7813PG4IC ADC 16BIT SAR 16DIP |
0 |
|
Datasheet | - | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | 16 | 40k | 1 | Single Ended | SPI | S/H-ADC | 1:1 | 1 | SAR | External, Internal | 5V | 5V | - | -40°C ~ 85°C | 16-PDIP | Through Hole | - | - |
|
ADS7816PBG4IC ADC 12BIT SAR 8DIP |
0 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 12 | 200k | 1 | Differential | SPI | S/H-ADC | 1:1 | 1 | SAR | External | 5V | 5V | - | -40°C ~ 85°C | 8-PDIP | Through Hole | - | - |
|
|
ADS7816PCG4IC ADC 12BIT SAR 8DIP |
0 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 12 | 200k | 1 | Differential | SPI | S/H-ADC | 1:1 | 1 | SAR | External | 5V | 5V | - | -40°C ~ 85°C | 8-PDIP | Through Hole | - | - |
|
|
ADS7822PBG4IC ADC 12BIT SAR 8DIP |
0 |
|
Datasheet | microPOWER™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 12 | 200k | 1 | Pseudo-Differential | SPI | S/H-ADC | 1:1 | 1 | SAR | External | 2.7V ~ 3.6V, 5V | 2.7V ~ 3.6V, 5V | - | -40°C ~ 85°C | 8-PDIP | Through Hole | - | - |
|
ADS7825PBG4IC ADC 16BIT SAR 28DIP |
0 |
|
Datasheet | - | 28-DIP (0.300", 7.62mm) | Tube | Obsolete | 16 | 40k | 4 | Single Ended | SPI, Parallel | S/H-ADC | 1:1 | 1 | SAR | External, Internal | 5V | 5V | - | -40°C ~ 85°C | 28-PDIP | Through Hole | - | - |
|
|
ADS7841PBG4IC ADC 12BIT SAR 16DIP |
0 |
|
Datasheet | - | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | 12 | 200k | 4 | Single Ended | SPI | MUX-S/H-ADC | 1:1 | 1 | SAR | External | 2.7V ~ 3.6V, 5V | 2.7V ~ 3.6V, 5V | - | -40°C ~ 125°C | 16-PDIP | Through Hole | - | - |
|
ADS8422IPFBRG4IC ADC 16BIT SAR 48TQFP |
0 |
|
Datasheet | microPOWER™ | 48-TQFP | Tape & Reel (TR) | Obsolete | 16 | 4M | 1 | Differential | Parallel | S/H-ADC | 1:1 | 1 | SAR | External, Internal | 5V | 2.7V ~ 5.25V | - | -40°C ~ 85°C | 48-TQFP (7x7) | Surface Mount | - | - |
|
THS1031IPWG4IC ADC 10BIT PIPELINED 28TSSOP |
0 |
|
Datasheet | - | 28-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | 10 | 30M | 1 | Differential, Single Ended | Parallel | S/H-PGA-ADC | 1:1 | 1 | Pipelined | External, Internal | 3V ~ 5.5V | 3V ~ 5.5V | - | -40°C ~ 85°C | 28-TSSOP | Surface Mount | - | - |
|
TLC1543CFNRIC ADC 10BIT SAR 20PLCC |
0 |
|
Datasheet | - | 20-LCC (J-Lead) | Tape & Reel (TR) | Obsolete | 10 | 38k | 11 | Single Ended | SPI | MUX-S/H-ADC | 1:1 | 1 | SAR | External | 5V | 5V | Selectable Address | 0°C ~ 70°C | 20-PLCC (9x9) | Surface Mount | - | - |
|
ADC0808S125HW/C1:5IC ADC 8BIT 48HTQFP |
0 |
|
Datasheet | - | 48-TQFP Exposed Pad | Tray | Active | 8 | 125M | 1 | Differential | Parallel | S/H-ADC | 1:1 | 1 | - | External, Internal | 3V ~ 3.6V | 1.65V ~ 1.95V | - | -40°C ~ 85°C | 48-HTQFP (7x7) | Surface Mount | - | - |
|
|
ADC0808S250HW/C1:5IC ADC 8BIT 48HTQFP |
0 |
|
Datasheet | - | 48-TQFP Exposed Pad | Tray | Active | 8 | 250M | 1 | Differential | Parallel | S/H-ADC | 1:1 | 1 | - | External | 3V ~ 3.6V | 1.65V ~ 1.95V | - | -40°C ~ 85°C | 48-HTQFP (7x7) | Surface Mount | - | - |
|
|
ADC1207S080HW/C1:5IC ADC 12BIT 48HTQFP |
0 |
|
Datasheet | - | 48-TQFP Exposed Pad | Tray | Obsolete | 12 | 80M | 1 | Differential | Parallel | S/H-ADC | 1:1 | 1 | - | Internal | 5V | 5V | - | -40°C ~ 85°C | 48-HTQFP (7x7) | Surface Mount | - | - |
|
AD7262BSTZ-RL7IC ADC 12BIT SAR 48LQFP |
0 |
|
Datasheet | - | 48-LQFP | Tape & Reel (TR) | Obsolete | 12 | 1M | 2 | Differential | SPI, DSP | PGA-S/H-ADC | 1:1 | 2 | SAR | External, Internal | 5V | 2.7V ~ 5.25V | PGA, Simultaneous Sampling | -40°C ~ 105°C | 48-LQFP (7x7) | Surface Mount | - | - |
|
AD7656YSTZ-1-RLIC ADC 16BIT SAR 64LQFP |
0 |
|
Datasheet | iCMOS® | 64-LQFP | Tape & Reel (TR) | Obsolete | 16 | 250k | 6 | Single Ended | SPI, Parallel, DSP | S/H-ADC | 1:1 | 6 | SAR | External, Internal | 5V | 5V | Simultaneous Sampling, True Bipolar | -40°C ~ 125°C | 64-LQFP (10x10) | Surface Mount | - | - |
|

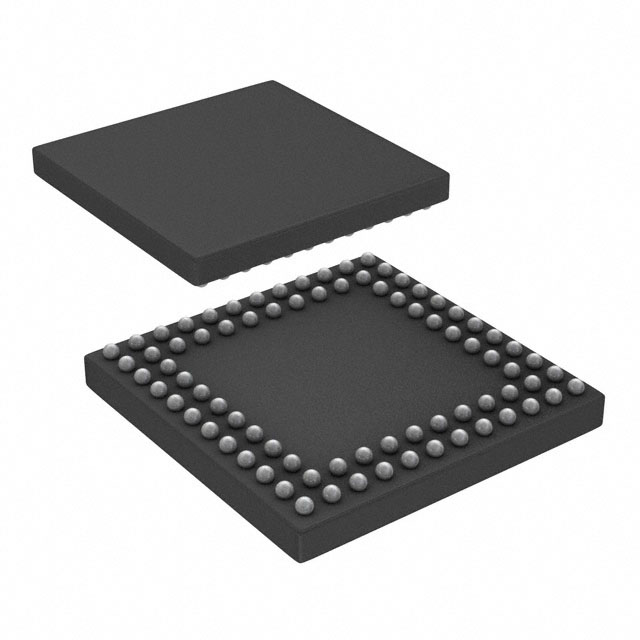

AD5590BBCIC ADC 12BIT SAR 80CSP |
0 |
|
Datasheet | - | 80-LFBGA, CSPBGA | Tray | Obsolete | 12 | 1M | 16 | Single Ended | Parallel | MUX-S/H-ADC | 1:1 | 1 | SAR | External, Internal | 2.7V ~ 5.25V | 2.7V ~ 5.25V | - | -40°C ~ 85°C | 80-CSPBGA (10x10) | Surface Mount | - | - |
|
|
AD7264BSTZ-5-RL7IC ADC 14BIT SAR 48LQFP |
0 |
|
Datasheet | - | 48-LQFP | Tape & Reel (TR) | Obsolete | 14 | 500k | 2 | Differential | SPI, DSP | PGA-S/H-ADC | 1:1 | 2 | SAR | External, Internal | 5V | 2.7V ~ 5.25V | PGA, Simultaneous Sampling | -40°C ~ 105°C | 48-LQFP (7x7) | Surface Mount | - | - |
|
HI7191IPZIC ADC 24BIT SIGMA-DELTA 20DIP |
0 |
|
Datasheet | - | 20-DIP (0.300", 7.62mm) | Tube | Obsolete | 24 | 625 | 1 | Differential | SPI | PGA-ADC | - | 1 | Sigma-Delta | External | ±5V | 5V | PGA | -40°C ~ 85°C | 20-PDIP | Through Hole | - | - |
|
ADC12EU050CIPLQ/NOPBIC ADC 12BIT SIGMA-DELTA 68VQFN |
0 |
|
Datasheet | - | 68-VFQFN Exposed Pad | Tray | Obsolete | 12 | 45M | 1 | Differential | LVDS - Serial | ADC | - | 1 | Sigma-Delta | External, Internal | 1.16V ~ 1.26V | 1.16V ~ 1.89V | - | -40°C ~ 85°C | 68-VQFN (10x10) | Surface Mount | - | - |
|
KAD2710C-10Q68IC ADC 10BIT PIPELINED 68QFN |
0 |
|
Datasheet | - | 68-VFQFN Exposed Pad | Tray | Obsolete | 10 | 105M | 1 | Differential | LVDS - Parallel, Parallel | S/H-ADC | 1:1 | 1 | Pipelined | External, Internal | 1.7V ~ 1.9V, 3.15V ~ 3.45V | 1.7V ~ 1.9V | - | -40°C ~ 85°C | 68-QFN (10x10) | Surface Mount | - | - |
