Analog to Digital Converters (ADC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Bits | Sampling Rate (Per Second) | Number of Inputs | Input Type | Data Interface | Configuration | Ratio - S/H:ADC | Number of A/D Converters | Architecture | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | Features | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADS1282IPWRIC ADC 31BIT SIGMA-DELTA 28TSSOP |
743 |
|
Datasheet | - | 28-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 31 | 4k | 2 | Differential | SPI | ADC | - | 1 | Sigma-Delta | External | 5V | 1.65V ~ 3.6V | PGA | -40°C ~ 85°C | 28-TSSOP | Surface Mount | - | - |
|
|
AD4858BBCZ-RL-1320-BIT, 8-CHANNEL SIM SAMPLING D |
1,476 |
|
Datasheet | - | 64-LFBGA | Tape & Reel (TR) | Active | 20 | 1M | 8, 16 | Differential, Single Ended | LVDS, SPI | S/H-ADC | 8:8 | 8 | SAR | External, Internal | 4.75V ~ 5.25V | 4.75V ~ 5.25V | Simultaneous Sampling | -40°C ~ 125°C | 64-BGA (7x7) | Surface Mount | - | - |
|
AD7621ASTZIC ADC 16BIT SAR 48LQFP |
254 |
|
Datasheet | PulSAR® | 48-LQFP | Tray | Active | 16 | 3M | 1 | Differential | SPI, Parallel, DSP | S/H-ADC | 1:1 | 1 | SAR | External, Internal | 2.37V ~ 2.63V | 2.37V ~ 2.63V | - | -40°C ~ 85°C | 48-LQFP (7x7) | Surface Mount | - | - |
|
LTC2261IUJ-12#PBFIC ADC 12BIT PIPELINED 40QFN |
126 |
|
Datasheet | - | 40-WFQFN Exposed Pad | Tube | Active | 12 | 125M | 1 | Differential | LVDS - Parallel, Parallel | S/H-ADC | 1:1 | 1 | Pipelined | External, Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | - | -40°C ~ 85°C | 40-QFN (6x6) | Surface Mount | - | - |
|
LTC2142IUP-14#PBFIC ADC 14BIT PIPELINED 64QFN |
2 |
|
Datasheet | - | 64-WFQFN Exposed Pad | Tube | Active | 14 | 65M | 2 | Differential | LVDS - Parallel, Parallel | S/H-ADC | 1:1 | 2 | Pipelined | External, Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | Simultaneous Sampling | -40°C ~ 85°C | 64-QFN (9x9) | Surface Mount | - | - |
|
LTC2170IUKG-14#PBFIC ADC 14BIT PIPELINED 52QFN |
614 |
|
Datasheet | - | 52-WFQFN Exposed Pad | Tube | Active | 14 | 25M | 4 | Differential | LVDS - Serial | S/H-ADC | 1:1 | 4 | Pipelined | External, Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | Simultaneous Sampling | -40°C ~ 85°C | 52-QFN (7x8) | Surface Mount | - | - |
|

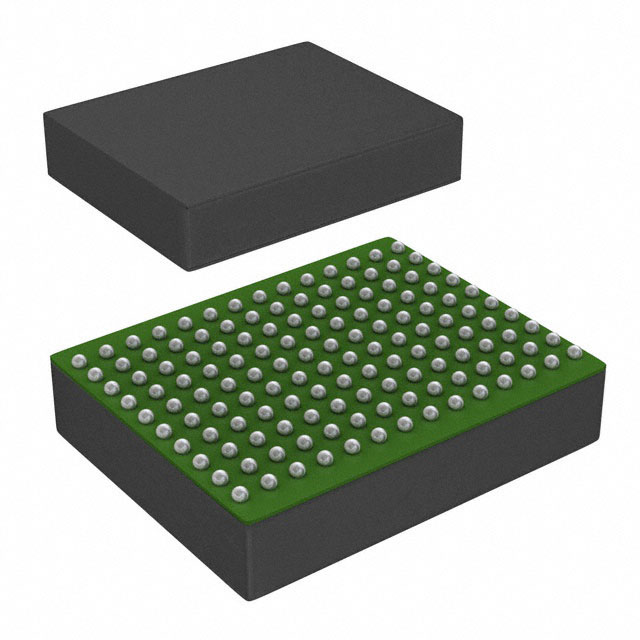

LTM9006CY-14#PBFIC ADC 14BIT PIPELINED 140BGA |
221 |
|
Datasheet | - | 140-BFBGA | Tray | Active | 14 | 25M | 8 | Differential | LVDS - Serial | S/H-ADC | 1:1 | 8 | Pipelined | External, Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | Simultaneous Sampling | 0°C ~ 70°C | 140-BGA (11.25x9) | Surface Mount | - | - |
|
LTC2269IUK#PBFIC ADC 16BIT PIPELINED 48QFN |
121 |
|
Datasheet | - | 48-WFQFN Exposed Pad | Tube | Active | 16 | 20M | 1 | Differential | LVDS - Parallel, Parallel | S/H-ADC | 1:1 | 1 | Pipelined | External, Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | - | -40°C ~ 85°C | 48-QFN (7x7) | Surface Mount | - | - |
|
|
LTC2203IUK#PBFIC ADC 16BIT PIPELINED 48QFN |
252 |
|
Datasheet | - | 48-WFQFN Exposed Pad | Tube | Active | 16 | 25M | 1 | Differential | Parallel | S/H-ADC | 1:1 | 1 | Pipelined | External, Internal | 3.135V ~ 3.465V | 3.135V ~ 3.465V | PGA | -40°C ~ 85°C | 48-QFN (7x7) | Surface Mount | - | - |
|
AD7674ACPZIC ADC 18BIT SAR 48LFCSP |
187 |
|
Datasheet | PulSAR® | 48-VFQFN Exposed Pad, CSP | Tray | Active | 18 | 800k | 1 | Differential | SPI, Parallel, DSP | S/H-ADC | 1:1 | 1 | SAR | External, Internal | 5V | 5V | - | -40°C ~ 85°C | 48-LFCSP-VQ (7x7) | Surface Mount | - | - |
|
|
AD7674ASTZIC ADC 18BIT SAR 48LQFP |
17 |
|
Datasheet | PulSAR® | 48-LQFP | Tray | Active | 18 | 800k | 1 | Differential | SPI, Parallel, DSP | S/H-ADC | 1:1 | 1 | SAR | External, Internal | 5V | 5V | - | -40°C ~ 85°C | 48-LQFP (7x7) | Surface Mount | - | - |
|
ADS4229IRGCTIC ADC 12BIT PIPELINED 64VQFN |
957 |
|
Datasheet | - | 64-VFQFN Exposed Pad | Tape & Reel (TR) | Active | 12 | 250M | 2 | Differential | LVDS - Parallel, Parallel | S/H-ADC | 1:1 | 2 | Pipelined | Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | Simultaneous Sampling | -40°C ~ 85°C | 64-VQFN (9x9) | Surface Mount | - | - |
|
LTC2500IDKD-32#PBFIC ADC 32BIT SAR 24DFN |
97 |
|
Datasheet | - | 24-WFDFN Exposed Pad | Tube | Active | 32 | 1M | 1 | Differential | Parallel, SPI | ADC | 0:1 | 1 | SAR | External | 2.375V ~ 2.625V | 1.71V ~ 5.25V | - | -40°C ~ 85°C | 24-DFN (7x4) | Surface Mount | - | - |
|
ADS8422IBPFBTIC ADC 16BIT SAR 48TQFP |
878 |
|
Datasheet | microPOWER™ | 48-TQFP | Tape & Reel (TR) | Active | 16 | 4M | 1 | Differential | Parallel | S/H-ADC | 1:1 | 1 | SAR | External, Internal | 5V | 2.7V ~ 5.25V | - | -40°C ~ 85°C | 48-TQFP (7x7) | Surface Mount | - | - |
|
|
ADS1282IPWIC ADC 31BIT SIGMA-DELTA 28TSSOP |
340 |
|
Datasheet | - | 28-TSSOP (0.173", 4.40mm Width) | Tube | Active | 31 | 4k | 2 | Differential | SPI | ADC | - | 1 | Sigma-Delta | External | 5V | 1.65V ~ 3.6V | PGA | -40°C ~ 85°C | 28-TSSOP | Surface Mount | - | - |
|
ADS1278MPAPTEPIC ADC 24BIT SIGMA-DELTA 64HTQFP |
274 |
|
Datasheet | - | 64-PowerTQFP | Tape & Reel (TR) | Active | 24 | 144k | 8 | Differential | SPI | ADC | - | 1 | Sigma-Delta | External | 5V | 1.65V ~ 1.95V | - | -55°C ~ 125°C | 64-HTQFP (10x10) | Surface Mount | - | - |
|
|
ADS5287IRGCTIC ADC 10BIT PIPELINED 64VQFN |
192 |
|
Datasheet | - | 64-VFQFN Exposed Pad | Tape & Reel (TR) | Active | 10 | 65M | 8 | Differential | LVDS - Serial, SPI | S/H-ADC | 1:1 | 8 | Pipelined | External, Internal | 3V ~ 3.6V | 1.7V ~ 1.9V | Simultaneous Sampling | -40°C ~ 85°C | 64-VQFN (9x9) | Surface Mount | - | - |
|
AD9266BCPZ-40IC ADC 16BIT PIPELINED 32LFCSP |
60 |
|
Datasheet | - | 32-WFQFN Exposed Pad, CSP | Tray | Active | 16 | 40M | 1 | Differential, Single Ended | Parallel | S/H-ADC | 1:1 | 1 | Pipelined | External, Internal | 1.7V ~ 1.9V | 1.7V ~ 3.6V | - | -40°C ~ 85°C | 32-LFCSP (5x5) | Surface Mount | - | - |
|
|
AD4080BBCZ20-BIT, 40 MSPS SAR ADC |
238 |
|
Datasheet | - | 49-LFBGA, CSPBGA | Tray | Active | 20 | 40M | 1 | Differential | LVDS, SPI | ADC | 0:1 | 1 | SAR | External | 1.045V ~ 1.155V, 3.135V ~ 3.465V | 1.045V ~ 1.155V, 3.135V ~ 3.465V | - | -40°C ~ 85°C | 49-CSPBGA (5x5) | Surface Mount | - | - |
|
|
ADS4245IRGCTIC ADC 14BIT PIPELINED 64VQFN |
529 |
|
Datasheet | - | 64-VFQFN Exposed Pad | Tape & Reel (TR) | Active | 14 | 125M | 2 | Differential | LVDS - Parallel, Parallel | S/H-ADC | 1:1 | 2 | Pipelined | Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | Simultaneous Sampling | -40°C ~ 85°C | 64-VQFN (9x9) | Surface Mount | - | - |
