Analog to Digital Converters (ADC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Bits | Sampling Rate (Per Second) | Number of Inputs | Input Type | Data Interface | Configuration | Ratio - S/H:ADC | Number of A/D Converters | Architecture | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | Features | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5962-8759104LXIC ADC 12BIT SAR 24CDIP |
0 |
|
Datasheet | - | 24-CDIP (0.300", 7.62mm) | Bulk | Active | 12 | - | 1 | Single Ended | Parallel | ADC | 0:1 | 1 | SAR | Internal | 5V, -15V | 5V, -15V | - | -55°C ~ 125°C | 24-CDIP | Through Hole | - | - |
|
AD678SD/883BIC ADC 12BIT 200KSPS 28CDIP |
0 |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AD9002SD/883B8-BIT FLASH ADC, 8-BIT ACCESS |
1,528 |
|
Datasheet | AD9002 | 28-CDIP (0.600", 15.24mm) | Bulk | Active | 8 | 150M | 1 | - | Parallel | ADC | 0:1 | 1 | - | External | - | - | - | -55°C ~ 125°C | 28-CDIP | Through Hole | - | - |
|
AD9012TQ/883BHIGH-SPEED 8-BIT TTL ADC |
98 |
|
Datasheet | AD9012 | 28-CDIP (0.600", 15.24mm) | Bulk | Active | 8 | 100M | 1 | Single Ended | - | S/H-ADC | 1:1 | 1 | - | External | ±4.75V ~ 5.25V | 4.75V ~ 5.25V | - | -55°C ~ 125°C | 28-CDIP | Through Hole | - | - |
|
AD573SDIC ADC 10BIT SAR 20CDIP |
0 |
|
Datasheet | - | 20-CDIP (0.300", 7.62mm) | Bulk | Active | 10 | - | 1 | Single Ended | Parallel | S/H-ADC | 1:1 | 1 | SAR | Internal | +4.5V ~ 7V, -12V ~ 16.5V | +4.5V ~ 7V, -12V ~ 16.5V | - | -55°C ~ 125°C | 20-CDIP | Through Hole | - | - |
|
5962-9470301MXAIC ADC 8BIT 50MSPS 48CDIP |
0 |
|
- |
- | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

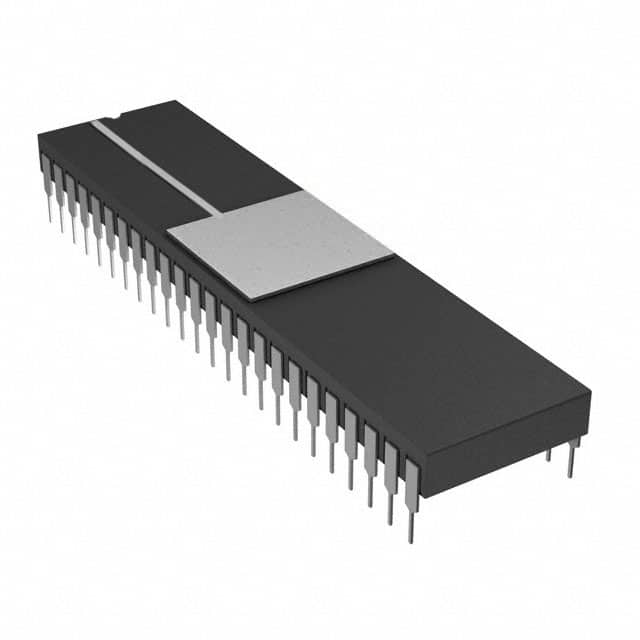

AD9058ATD/883BIC ADC 8BIT 48CERSIP |
0 |
|
Datasheet | - | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ADS5409IZAYIC ADC 12BIT PIPELINED 196NFBGA |
0 |
|
Datasheet | - | 196-LFBGA | Bulk | Active | 12 | 900M | 2 | Differential | LVDS - Parallel | S/H-ADC | 1:1 | 2 | Pipelined | External, Internal | 1.7V ~ 1.9V, 3.15V ~ 3.45V | 1.7V ~ 1.9V | Simultaneous Sampling | -40°C ~ 85°C | 196-NFBGA (12x12) | Surface Mount | - | - |
|
|
ADS54T02IZAYIC ADC 12BIT PIPELINED 196NFBGA |
0 |
|
Datasheet | - | 196-LFBGA | Bulk | Active | 12 | 750M | 2 | Differential | LVDS - Parallel | S/H-ADC | 1:1 | 2 | Pipelined | Internal | 1.7V ~ 1.9V, 3.15V ~ 3.45V | 1.7V ~ 1.9V | Simultaneous Sampling | -40°C ~ 85°C | 196-NFBGA (12x12) | Surface Mount | - | - |
|
|
ADS5402IZAYIC ADC 12BIT PIPELINED 196NFBGA |
0 |
|
Datasheet | - | 196-LFBGA | Bulk | Active | 12 | 800M | 2 | Differential | Parallel | S/H-ADC | 1:1 | 2 | Pipelined | External, Internal | 1.7V ~ 1.9V, 3.15V ~ 3.45V | 1.7V ~ 1.9V | Simultaneous Sampling | -40°C ~ 85°C | 196-NFBGA (12x12) | Surface Mount | - | - |
|
|
5962-8759105LXIC ADC 12BIT SAR 24CDIP |
0 |
|
Datasheet | - | 24-CDIP (0.300", 7.62mm) | Bulk | Active | 12 | - | 1 | Single Ended | Parallel | ADC | 0:1 | 1 | SAR | Internal | 5V, -15V | 5V, -15V | - | -55°C ~ 125°C | 24-CDIP | Through Hole | - | - |
|
5962-85127023AIC ADC 12BIT SAR 28LCC |
0 |
|
Datasheet | - | 28-LCC | Bulk | Active | 12 | - | 1 | Single Ended | Parallel | ADC | 0:1 | 1 | SAR | External, Internal | ±11.4V ~ 16.5V | 5V | - | -55°C ~ 125°C | 28-LCC (11.43x11.43) | Surface Mount | Military | MIL-STD-883 |
|
5962-9468602MYA12-BIT ADC (AD871SE) |
52 |
|
Datasheet | AD871 | 44-CLCC | Bulk | Active | 12 | 5M | 12 | Differential, Single Ended | Parallel | S/H-ADC | 3:4 | 4 | Pipelined | External, Internal | ±4.75V ~ 5.25V | 4.75V ~ 5.25V | - | -55°C ~ 125°C | 44-CLCC (16.55x16.55) | Surface Mount | - | - |
|
ADADC71JDIC ADC 16BIT SAR 32BBDIP |
0 |
|
Datasheet | - | 32-CDIP (0.910", 23.12mm) | Tube | Obsolete | 16 | 20k | 1 | Single Ended | Parallel | ADC | - | 1 | SAR | Internal | ±15V | ±5V | - | 0°C ~ 70°C | 32-BBDIP-H | Through Hole | - | - |
|
|
AD679TD/883BIC ADC 14BIT 128KSPS 28CDIP |
0 |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
5962-9468601MXA12-BIT ADC (AD871SD/883B) |
63 |
|
Datasheet | AD871 | 28-CDIP (0.605", 15.37mm) | Bulk | Active | 12 | 5M | 12 | Differential, Single Ended | Parallel | S/H-ADC | 3:4 | 4 | Pipelined | External, Internal | ±4.75V ~ 5.25V | 4.75V ~ 5.25V | - | -55°C ~ 125°C | 28-CDIP | Through Hole | - | - |
|
|
AD1380JDIC ADC 16BIT SAR 32BBDIP |
0 |
|
Datasheet | - | 32-CDIP (0.910", 23.12mm) | Tube | Obsolete | 16 | 50k | 16 | Single Ended | Parallel | S/H-ADC | 1:1 | 1 | SAR | Internal | ±14.5V ~ 15.5V | 5V | - | 0°C ~ 70°C | 32-BBDIP-H | Through Hole | - | - |
|
|
AD9002TD/883B8-BIT FLASH ADC, 8-BIT ACCESS |
133 |
|
Datasheet | AD9002 | 28-CDIP (0.600", 15.24mm) | Bulk | Active | 8 | 150M | 1 | - | Parallel | ADC | 0:1 | 1 | - | External | - | - | - | -55°C ~ 125°C | 28-CDIP | Through Hole | - | - |
|
|
ADADC71KDIC ADC 16BIT SAR 32BBDIP |
0 |
|
Datasheet | - | 32-CDIP (0.910", 23.12mm) | Tube | Obsolete | 16 | 20k | 1 | Single Ended | Parallel | ADC | - | 1 | SAR | Internal | ±15V | ±5V | - | 0°C ~ 70°C | 32-BBDIP-H | Through Hole | - | - |
|
|
5962-8965402XA8 BIT A/D (AD9012) |
300 |
|
Datasheet | AD9012 | 28-CDIP (0.600", 15.24mm) | Bulk | Obsolete | 8 | 100M | 1 | Single Ended | - | S/H-ADC | 1:1 | 1 | - | External | ±4.75V ~ 5.25V | 4.75V ~ 5.25V | - | -55°C ~ 125°C | 28-CDIP | Through Hole | - | - |
