Analog to Digital Converters (ADC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Bits | Sampling Rate (Per Second) | Number of Inputs | Input Type | Data Interface | Configuration | Ratio - S/H:ADC | Number of A/D Converters | Architecture | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | Features | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD774BTD/883BIC ADC 12BIT SAR 28CDIP |
0 |
|
Datasheet | - | 28-CDIP (0.600", 15.24mm) | Tube | Active | 12 | - | 2 | Single Ended | Parallel | ADC | - | 1 | SAR | Internal | ±11.4V ~ 16.5V | 5V | - | -55°C ~ 125°C | 28-CDIP | Through Hole | - | - |
|
5962-9169003MXAIC ADC 12BIT SAR 28CDIP |
1 |
|
Datasheet | - | 28-CDIP (0.600", 15.24mm) | Bulk | Active | 12 | - | 2 | Single Ended | Parallel | ADC | 0:1 | 1 | SAR | External, Internal | 11.4V ~ 16.5V | 5V | - | -55°C ~ 125°C | 28-CDIP | Through Hole | - | - |
|
ADC081500CIYB/NOPBIC ADC 8BIT FOLD INTERP 128HLQFP |
48 |
|
Datasheet | - | 128-LQFP Exposed Pad | Tray | Active | 8 | 1.5G | 1 | Differential | LVDS - Parallel | S/H-ADC | 1:1 | 1 | Folding Interpolating | Internal | 1.8V ~ 2V | 1.8V ~ 2V | - | -40°C ~ 85°C | 128-HLQFP (20x20) | Surface Mount | - | - |
|
AD9680BCPZ-820IC ADC 14BIT PIPELINED 64LFCSP |
2 |
|
Datasheet | - | 64-WFQFN Exposed Pad, CSP | Tray | Active | 14 | 820M | 2 | Differential | SPI | ADC | 1:1 | 2 | Pipelined | Internal | 1.8V ~ 3.3V | 1.8V ~ 3.3V | - | -40°C ~ 85°C | 64-LFCSP (9x9) | Surface Mount | - | - |
|
5962-8680202VAIC ADC 10BIT 18CDIP |
3 |
|
Datasheet | - | 18-CDIP (0.300", 7.62mm) | Tube | Active | 10 | - | 1 | Single Ended | Parallel | S/H-ADC | 1:1 | 1 | SAR | Internal | -12V ~ -16.5V, 4.5V ~ 7V | -12V ~ -16.5V, 4.5V ~ 7V | - | -55°C ~ 125°C | 18-SBDIP | Through Hole | - | - |
|
AD9684BBPZ-500IC ADC 14BIT PIPELINED 196BGA |
3 |
|
Datasheet | - | 196-LFBGA Exposed Pad | Tray | Active | 14 | 500M | 2 | Differential | LVDS - Parallel | S/H-ADC | 1:1 | 1 | Pipelined | External, Internal | 1.25V, 2.5V | 1.22V ~ 1.28V | - | -40°C ~ 85°C | 196-BGA-ED (12x12) | Surface Mount | - | - |
|
AD9625BBPZ-2.0IC ADC 12BIT PIPELINED 196BGA |
1 |
|
Datasheet | - | 196-LFBGA Exposed Pad | Tray | Active | 12 | 2G | 1 | Differential | JESD204B | S/H-ADC | 1:1 | 1 | Pipelined | Internal | 1.26V ~ 1.32V, 2.4V ~ 2.6V | 1.26V ~ 1.32V, 2.4V ~ 2.6V | - | -40°C ~ 85°C | 196-BGA-ED (12x12) | Surface Mount | - | - |
|
|
ADC083000CIYB/NOPBIC ADC 8BIT FOLD INTERP 128HLQFP |
75 |
|
Datasheet | - | 128-LQFP Exposed Pad | Tray | Active | 8 | 3G | 1 | Differential | LVDS - Parallel | S/H-ADC | 1:1 | 1 | Folding Interpolating | Internal | 1.8V ~ 2V | 1.8V ~ 2V | - | -40°C ~ 85°C | 128-HLQFP (20x20) | Surface Mount | - | - |
|

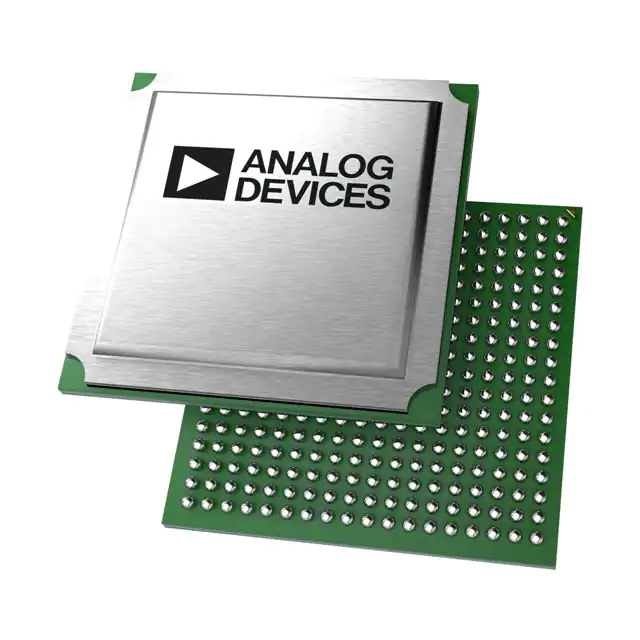

AD9207BBPZ-6GDUAL 12BIT 6GSPS ADCW/JESD204B&C |
1 |
|
Datasheet | AD9207 | 324-FBGA Exposed Pad | Tray | Active | 12 | 6G | 2 | Differential | JESD204B/C | MUX-ADC | 1:1 | 2 | - | - | - | - | Temperature Sensor | -40°C ~ 120°C (TJ) | 324-BGA-ED (15x15) | Surface Mount | - | - |
|

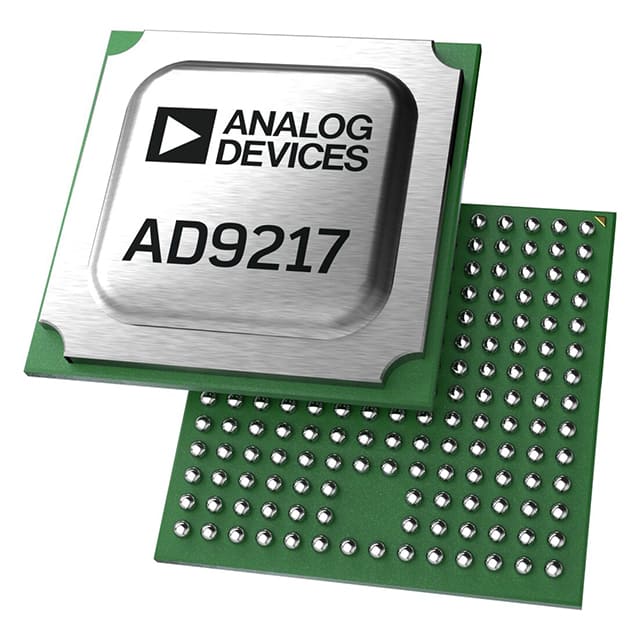

AD9217BBPZ-6G12 BIT ADC JESD204B+ HIGH SPEED |
2 |
|
Datasheet | - | 192-LFBGA Exposed Pad | Tray | Active | 12 | 6G | 1 | Differential | SPI | ADC | 0:1 | 1 | Pipelined | - | - | - | - | -20°C ~ 115°C | 192-BGA-ED (12x12) | Surface Mount | - | - |
|
|
AD9217BBPZ-10G12 BIT ADC JESD204B+ HIGH SPEED |
2 |
|
Datasheet | - | 192-LFBGA Exposed Pad | Tray | Active | 12 | 10.25G | 1 | Differential | SPI | ADC | 0:1 | 1 | Pipelined | - | - | - | - | -20°C ~ 115°C | 192-BGA-ED (12x12) | Surface Mount | - | - |
|
AD9461BSVZIC ADC 16BIT PIPELINED 100TQFP |
0 |
|
Datasheet | - | 100-TQFP Exposed Pad | Tray | Active | 16 | 130M | 1 | Differential | LVDS - Parallel, Parallel | S/H-ADC | 1:1 | 1 | Pipelined | External, Internal | 3.3V, 5V | 3V ~ 3.6V | - | -40°C ~ 85°C | 100-TQFP-EP (14x14) | Surface Mount | - | - |
|
AD7476AWYRMZIC ADC 12BIT SAR 8MSOP |
0 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | 12 | 1M | 1 | Single Ended | SPI, DSP | S/H-ADC | 1:1 | 1 | SAR | Supply | 2.35V ~ 5.25V | 2.35V ~ 5.25V | - | -40°C ~ 125°C | 8-MSOP | Surface Mount | Automotive | - |
|
LTC2158IUP-14#PBFIC ADC 14BIT PIPELINED 64QFN |
0 |
|
Datasheet | - | 64-WFQFN Exposed Pad | Tube | Active | 14 | 310M | 2 | Differential | LVDS - Parallel | S/H-ADC | 1:1 | 2 | Pipelined | External, Internal | 1.74V ~ 1.9V | 1.74V ~ 1.9V | Simultaneous Sampling | -40°C ~ 85°C | 64-QFN (9x9) | Surface Mount | - | - |
|
|
LTC2153IUJ-14#PBFIC ADC 14BIT PIPELINED 40QFN |
0 |
|
Datasheet | - | 40-WFQFN Exposed Pad | Tube | Active | 14 | 310M | 1 | Differential | LVDS - Parallel | S/H-ADC | 1:1 | 1 | Pipelined | External, Internal | 1.74V ~ 1.9V | 1.74V ~ 1.9V | - | -40°C ~ 85°C | 40-QFN (6x6) | Surface Mount | - | - |
|
ADC101C027CIMKX/NOPBIC ADC 10BIT SAR TSOT23-6 |
2,966 |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | 10 | 188.9k | 1 | Single Ended | I2C | S/H-ADC | 1:1 | 1 | SAR | Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | Selectable Address | -40°C ~ 105°C | SOT-23-THIN | Surface Mount | - | - |
|
MCP33141D-10-E/MSIC ADC 12BIT SAR 10MSOP |
761 |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Active | 12 | 1M | 1 | Differential | SPI | ADC | 0:1 | 1 | SAR | External | 1.7V ~ 1.9V | 1.7V ~ 5.5V | - | -40°C ~ 125°C | 10-MSOP | Surface Mount | Automotive | AEC-Q100 |
|
ADS7827IDRBTIC ADC 8BIT SAR 8SON |
500 |
|
Datasheet | microPOWER™ | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | 8 | 250k | 1 | Pseudo-Differential | SPI | S/H-ADC | 1:1 | 1 | SAR | External | 2.7V ~ 5.25V | 2.7V ~ 5.25V | - | -40°C ~ 85°C | 8-SON (3x3) | Surface Mount | - | - |
|
|
ADS1014LIDGSR12-BIT, 3.3-KSPS ONE-CHANNEL DEL |
2,447 |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | 12 | 3.3k | 1, 2 | Differential, Single Ended | I2C | PGA-ADC | 0:1 | 1 | Sigma-Delta | Internal | 2V ~ 3.6V | 2V ~ 3.6V | Oscillator, PGA, Selectable Address | -40°C ~ 125°C | 10-VSSOP | Surface Mount | - | - |
|
LTC2462CDD#PBFIC ADC 16BIT SIGMA-DELTA 12DFN |
0 |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tube | Active | 16 | 60 | 1 | Differential | SPI | ADC | - | 1 | Sigma-Delta | Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | - | 0°C ~ 70°C | 12-DFN (3x3) | Surface Mount | - | - |
