Clock Generators, PLLs, Frequency Synthesizers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Type | PLL | Input | Output | Number of Circuits | Ratio - Input:Output | Differential - Input:Output | Frequency - Max | Divider/Multiplier | Voltage - Supply | Operating Temperature | Mounting Type | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADF4117BRUZ-RLIC CLK/FREQ SYNTH 16TSSOP |
4,960 |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Not Verified | Clock/Frequency Synthesizer (RF) | Yes | CMOS, TTL | Clock | 1 | 2:1 | Yes/No | 1.2GHz | Yes/No | 2.7V ~ 5.5V | -40°C ~ 85°C | Surface Mount | - | - | 16-TSSOP |
|
NB3N51044DTR2GIC CLK GEN HCSL/LVDS 28W-TSSOP |
2,454 |
|
Datasheet | - | 28-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Not Verified | - | Yes with Bypass | Clock, Crystal | HCSL, LVDS | 1 | 2:4 | No/Yes | 125MHz | Yes/No | 3.135V ~ 3.465V | -40°C ~ 85°C | Surface Mount | - | - | 28-TSSOP |
|
NB3W800LMNTXGIC CLOCK ZDB FANOUT BUFFER 48QFN |
2,500 |
|
Datasheet | - | 48-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | - | Yes with Bypass | Clock | HCSL | 1 | 1:8 | Yes/Yes | 133.33MHz | No/No | 3.135V ~ 3.465V | 0°C ~ 70°C | Surface Mount | - | - | 48-QFN (6x6) |
|

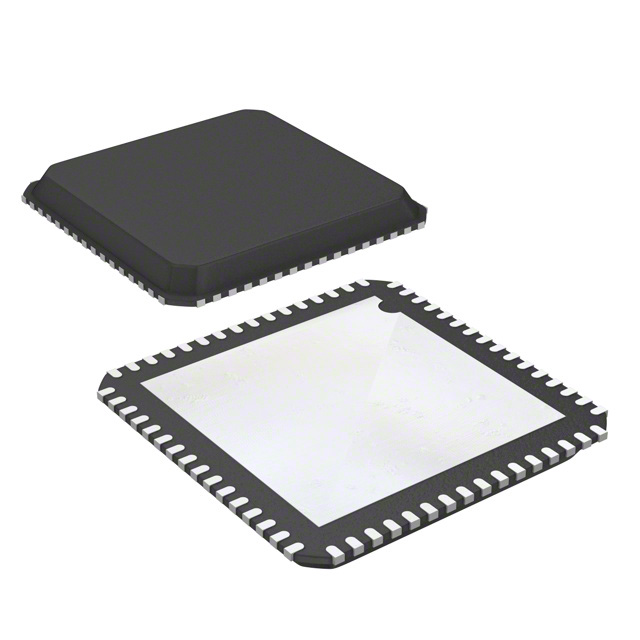

NB3W1200LMNTXGIC CLOCK ZDB FANOUT BUFFER 64QFN |
1,000 |
|
Datasheet | - | 64-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | - | Yes with Bypass | Clock | Clock | 1 | 1:12 | Yes/Yes | 133MHz | No/No | 3.135V ~ 3.465V | 0°C ~ 70°C | Surface Mount | - | - | 64-QFN (9x9) |
|
|
ADF4154BRUZIC FRACT N SYNTH 16TSSOP |
111 |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | Fractional N Synthesizer (RF) | Yes | CMOS, TTL | Clock | 1 | 2:1 | Yes/No | 4GHz | No/Yes | 2.7V ~ 3.3V | -40°C ~ 85°C | Surface Mount | - | - | 16-TSSOP |
|
ADF4153BCPZIC FRACT N SYNTH 20LFCSP |
109 |
|
Datasheet | - | 20-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | Fractional N Synthesizer (RF) | Yes | CMOS, TTL | Clock | 1 | 2:1 | Yes/No | 4GHz | No/Yes | 2.7V ~ 3.3V | -40°C ~ 85°C | Surface Mount | - | - | 20-LFCSP-VQ (4x3.75) |
|
ADF4151BCPZIC PLL FREQ SYNTHESIZER 32LFCSP |
141 |
|
Datasheet | - | 32-WFQFN Exposed Pad, CSP | Tray | Active | Not Verified | - | Yes | CMOS, TTL | Clock | 1 | 2:1 | Yes/No | 3.5GHz | Yes/Yes | 3V ~ 3.6V | -40°C ~ 85°C | Surface Mount | - | - | 32-LFCSP-WQ (5x5) |
|
ADF4212LBRUZIC CLK/FREQ SYNTH 20TSSOP |
134 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | Clock/Frequency Synthesizer (RF/IF) | Yes | CMOS, TTL | Clock | 1 | 3:1 | Yes/Yes | 2.4GHz | Yes/No | 2.7V ~ 3.3V | -40°C ~ 85°C | Surface Mount | - | - | 20-TSSOP |
|
SY89537LMYIC CLK/FREQ SYNTH 44MLF |
780 |
|
Datasheet | Precision Edge® | 44-VFQFN Exposed Pad, 44-MLF® | Bulk | Active | Not Verified | Clock/Frequency Synthesizer | Yes | CMOS, HSTL, LVDS, LVPECL, LVTTL, SSTL, Crystal | LVDS, LVPECL | 1 | 3:7 | Yes/Yes | 756MHz | Yes/No | 2.375V ~ 3.6V | -40°C ~ 85°C | Surface Mount | - | - | 44-MLF® (7x7) |
|
|
ADF4218LBRUZIC CLK/FREQ SYNTH 20TSSOP |
119 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | Clock/Frequency Synthesizer (RF/IF) | Yes | CMOS, TTL | Clock | 1 | 3:1 | Yes/No | 3GHz | Yes/No | 2.6V ~ 3.3V | -40°C ~ 85°C | Surface Mount | - | - | 20-TSSOP |
|
|
ADF4350BCPZ-RLIC FANOUT DIST 32LFCSP |
0 |
|
Datasheet | - | 32-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | Fanout Distribution, Fractional N, Integer N, Clock/Frequency Synthesizer (RF) | Yes | CMOS, TTL | Clock | 1 | 1:2 | No/No | 4.4GHz | Yes/Yes | 3V ~ 3.6V | -40°C ~ 85°C | Surface Mount | - | - | 32-LFCSP-WQ (5x5) |
|
5P49V5901B616NLGI8IC CLOCK GENERATOR 24VFQFPN |
4,848 |
|
Datasheet | VersaClock® 5 | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Clock Generator | Yes | HCSL, LVCMOS, LVDS, LVPECL, Crystal | HCSL, LVCMOS, LVDS, LVPECL | 1 | 2:4 | Yes/Yes | 200MHz, 350MHz | Yes/No | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V | -40°C ~ 85°C (TA) | Surface Mount | - | - | 24-VFQFPN (4x4) |
|
SI4123-D-GTIC FREQ SYNTH 24TSSOP |
265 |
|
Datasheet | - | 24-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | Frequency Synthesizer | Yes | Crystal | Clock | 1 | 1:2 | No/No | 1.8GHz | Yes/No | 2.7V ~ 3.6V | -40°C ~ 85°C | Surface Mount | - | - | 24-TSSOP |
|
CY2308SXI-1HIC FANOUT BUFFER 16SOIC |
180 |
|
Datasheet | - | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Fanout Buffer (Distribution), Zero Delay Buffer | Yes with Bypass | LVCMOS, LVTTL | LVCMOS | 1 | 1:8 | No/No | 133.3MHz | No/No | 3V ~ 3.6V | -40°C ~ 85°C | Surface Mount | - | - | 16-SOIC |
|
9ZML1252EKILFIC DB1200ZL OEM MUX DERIV 72QFN |
116 |
|
Datasheet | - | 72-VFQFN Exposed Pad | Tray | Active | Not Verified | - | Yes with Bypass | HCSL | HCSL | 1 | 2:12 | Yes/Yes | 400MHz | No/No | 3.135V ~ 3.465V | -40°C ~ 85°C | Surface Mount | - | - | 72-VFQFPN (10x10) |
|
ADF4157BCPZIC FRACT N SYNTH 20LFCSP |
64 |
|
Datasheet | - | 20-WFQFN Exposed Pad, CSP | Tray | Active | Not Verified | Fractional N Synthesizer (RF) | Yes | CMOS, TTL | Clock | 1 | 2:1 | Yes/No | 6GHz | Yes/Yes | 2.7V ~ 3.3V | -40°C ~ 85°C | Surface Mount | - | - | 20-LFCSP (4x4) |
|
LMX2531LQ1415E/NOPBIC FREQ SYNTH 36WQFN |
899 |
|
Datasheet | - | 36-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Frequency Synthesizer (RF) | Yes | Clock | CMOS | 1 | 2:2 | No/No | 1.47GHz | Yes/No | 2.8V ~ 3.2V | -40°C ~ 85°C | Surface Mount | - | - | 36-WQFN (6x6) |
|
ADF4360-2BCPZRL7IC FANOUT DIST 24LFCSP |
539 |
|
Datasheet | - | 24-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | Fanout Distribution, Integer N Synthesizer (RF) | Yes | CMOS, TTL | Clock | 1 | 1:2 | No/No | 2.17GHz | Yes/No | 3V ~ 3.6V | -40°C ~ 85°C | Surface Mount | - | - | 24-LFCSP (4x4) |
|
LMX2531LQ1910E/NOPBIC FREQ SYNTH 36WQFN |
320 |
|
Datasheet | - | 36-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Frequency Synthesizer (RF) | Yes | Clock | CMOS | 1 | 2:2 | No/No | 2.028GHz | Yes/No | 2.8V ~ 3.2V | -40°C ~ 85°C | Surface Mount | - | - | 36-WQFN (6x6) |
|
LMX2531LQ2080E/NOPBIC FREQ SYNTH 36WQFN |
157 |
|
Datasheet | - | 36-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Frequency Synthesizer (RF) | Yes | Clock | CMOS | 1 | 2:2 | No/No | 2.274GHz | Yes/No | 2.8V ~ 3.2V | -40°C ~ 85°C | Surface Mount | - | - | 36-WQFN (6x6) |
