Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Color | Wavelength - Peak | Configuration | Current | Millicandela Rating | Viewing Angle | Lens Type | Lens Style | Lens Size | Voltage Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HLMP-2855-GH000LED LGT BAR 8.89MM SQ GREEN |
812 |
|
Datasheet | HLMP-2855 | Tube | Active | Green | 572nm | Bar - Single, DIP | 20mA | 120mcd | - | - | Square with Flat Top | 8.89mm | 2.1V | Through Hole |
|
HLMP-2620LED CBI 8.89X3.81MM QUAD RD VERT |
1,563 |
|
Datasheet | HLMP-2620 | Tube | Active | Red (x 4) | 635nm | Bar - 4 Wide, DIP | 30mA | 23mcd | - | - | Rectangle with Flat Top | 8.89mm x 3.81mm | 2V | Through Hole |
|
|
HLMP-2885-HI000LED LGT BAR 19.05X8.89MM GRN |
486 |
|
Datasheet | HLMP-2885 | Tube | Active | Green | 572nm | Bar - Single, DIP | 20mA | 120mcd | - | - | Rectangle with Flat Top | 19.05mm x 8.89mm | 2.1V | Through Hole |
|
|
HLMP-2685-GH000LED LGT BAR 19.05X8.89MM RED |
1,760 |
|
Datasheet | HLMP-2685 | Tube | Active | Red | 631nm | Bar - Single, DIP | 20mA | 210mcd | - | - | Rectangle with Flat Top | 19.05mm x 8.89mm | 2.1V | Through Hole |
|
|
HLMP-2820-GH000LED CBI 8.89X3.81MM QUAD GN VERT |
402 |
|
Datasheet | HLMP-2820 | Tube | Active | Green | 572nm | Bar - 4 Wide, SIP | 20mA | 60mcd | - | - | Rectangle with Flat Top | 8.89mm x 3.81mm | 2.1V | Through Hole |
|
|
HDSP-4830-JK000LED CBI 5.08X1.52MM 10SEG R VERT |
1,184 |
|
Datasheet | HDSP-4830 | Tube | Active | Red | 631nm | Bar - 10 Wide, SIP | 20mA | 8.4mcd | - | - | Rectangle with Flat Top | 5.08mm x 1.52mm | 2.05V | Through Hole |
|
|
HLMP-2620-FG000LED CBI 8.89X3.81MM QUAD RD VERT |
1,849 |
|
Datasheet | HLMP-2620 | Tube | Active | Red | 631nm | Bar - 4 Wide, SIP | 20mA | 50mcd | - | - | Rectangle with Flat Top | 8.89mm x 3.81mm | 2.05V | Through Hole |
|
|
HDSP-4850-JK000LED CBI 5.08X1.52MM 10SEG G VERT |
1,320 |
|
Datasheet | HDSP-4850 | Tube | Active | Green | 572nm | Bar - 10 Wide, SIP | 10mA | 10.2mcd | - | - | Rectangle with Flat Top | 5.08mm x 1.52mm | 2.1V | Through Hole |
|
|
HDSP-4850-JKC00LED CBI 5.08X1.52MM 10SEG G VERT |
687 |
|
Datasheet | HDSP-4850 | Tube | Active | Green | 572nm | Bar - 10 Wide, SIP | 10mA | 10.2mcd | - | - | Rectangle with Flat Top | 5.08mm x 1.52mm | 2.1V | Through Hole |
|
|
HDSP-4830-JJ000LED CBI 5.08X1.52MM 10SEG R VERT |
960 |
|
Datasheet | HDSP-4830 | Tube | Active | Red | 631nm | Bar - 10 Wide, SIP | 20mA | 8.4mcd | - | - | Rectangle with Flat Top | 5.08mm x 1.52mm | 2.05V | Through Hole |
|
HLMP-3680-B00B2LED CBI 5MM GREEN RA HOUSING |
0 |
|
Datasheet | HLMP-3680 | Bulk | Active | Green | 565nm | Single | 10mA | 1.6mcd | 60° | Diffused, Tinted | - | - | 5V | Through Hole, Right Angle |
|

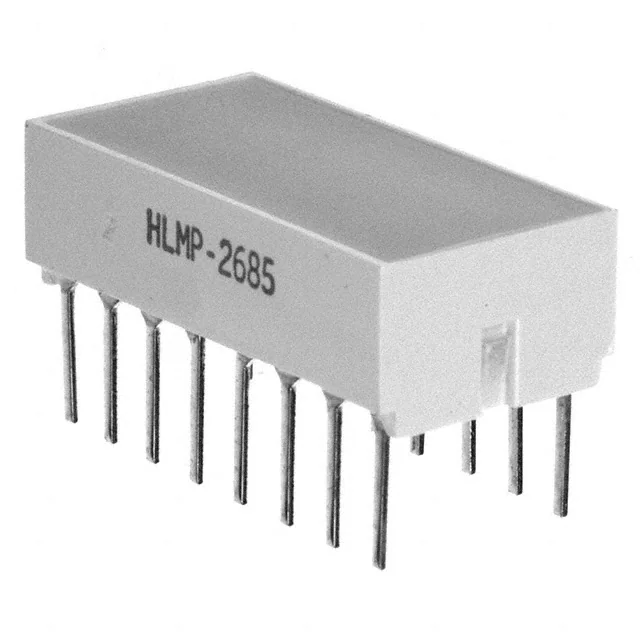

HLMP-2685-EF000LED LT BAR 8.89X19.05MM SGL HER |
499 |
|
Datasheet | HLMP-2685 | Bulk | Obsolete | Red | 635nm | Bar - Single, DIP | 30mA | 80mcd | - | - | Rectangle with Flat Top | 19.05mm x 8.89mm | 2.6V | Through Hole |
|
|
HLMP-2720LED LT BAR 8.89X3.81MM QUAD YLW |
15 |
|
Datasheet | HLMP-2720 | Tube | Active | Yellow (x 4) | 583nm | Bar - 4 Wide, DIP | 25mA | 20mcd | - | - | Rectangle with Flat Top | 8.89mm x 3.81mm | 2.1V | Through Hole |
|
CFTL-LED-BARLED CBI 2.9MM RED/GRN/BLU SMD |
1 |
|
Datasheet | - | Box | Active | Red, Green, Blue (RGB) | - | Single | - | - | - | - | Round with Domed Top | 2.90mm Dia | - | Surface Mount |
|
|
HLCP-H100LIGHT BAR 0.8X0.4" ALGAAS SINGLE |
0 |
|
Datasheet | - | Bulk | Active | Red | 645nm | Bar - Single, DIP | 20mA | 30mcd | - | - | - | - | 1.8V | Through Hole |
|
|
HLMP1700MP4ALED CBI 3MM RED DIFF RA |
0 |
|
Datasheet | - | Bulk | Obsolete | Red | 635nm | Single | 2mA | 2.1mcd | 50° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 1.8V | Through Hole, Right Angle |
|
|
HLMP1700MP4BLED CBI 3MM RED DIFF RA |
0 |
|
Datasheet | - | Bulk | Obsolete | Red | 635nm | Single | 2mA | 2.1mcd | 50° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 1.8V | Through Hole, Right Angle |
|
|
HLMP1719MP4ALED CBI 3MM YELLOW DIFF RA |
0 |
|
Datasheet | - | Bulk | Obsolete | Yellow | 585nm | Single | 2mA | 2.1mcd | 50° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 1.9V | Through Hole, Right Angle |
|
|
HLMP1719MP4BLED CBI 3MM YELLOW DIFF RA |
0 |
|
Datasheet | - | Bulk | Obsolete | Yellow | 585nm | Single | 2mA | 2.1mcd | 50° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 1.9V | Through Hole, Right Angle |
|
|
HLMP1790MP4ALED CBI 3MM GREEN DIFF RA |
0 |
|
Datasheet | - | Bulk | Obsolete | Green | 565nm | Single | 2mA | 2.3mcd | 50° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 1.9V | Through Hole, Right Angle |
