Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESR10EZPF9101RES 9.1K OHM 1% 2/5W 0805 |
3,723 |
|
Datasheet | ESR | 0805 (2012 Metric) | Tape & Reel (TR) | Not For New Designs | 9.1 kOhms | ±1% | 0.4W, 2/5W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|
|
ESR10EZPF5R90RES 5.9 OHM 1% 1/2W 0805 |
3,555 |
|
Datasheet | ESR | 0805 (2012 Metric) | Tape & Reel (TR) | Not For New Designs | 5.9 Ohms | ±1% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|

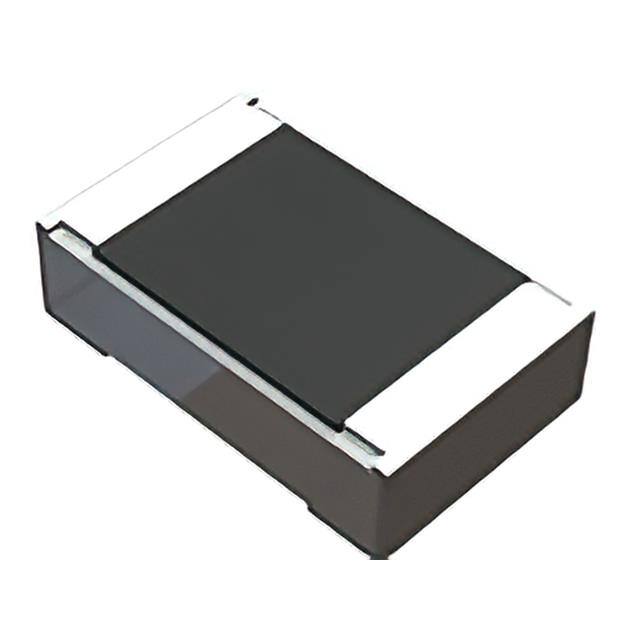

ESR10EZPF1R20RES 1.2 OHM 1% 1/2W 0805 |
3,321 |
|
Datasheet | ESR | 0805 (2012 Metric) | Tape & Reel (TR) | Not For New Designs | 1.2 Ohms | ±1% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|
LTR18EZPJ511RES 510 OHM 5% 1.5W 1206 WIDE |
2,996 |
|
Datasheet | LTR | Wide 1206 (3216 Metric), 0612 | Tape & Reel (TR) | Active | 510 Ohms | ±5% | 1.5W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0612 (1632 Metric) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.026" (0.65mm) | 2 | - |
|
|
ESR18EZPJ106RES 10M OHM 5% 1/2W 1206 |
1,872 |
|
Datasheet | ESR | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 10 MOhms | ±5% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
|
|
ESR18EZPJ475RES 4.7M OHM 5% 1/2W 1206 |
1,539 |
|
Datasheet | ESR | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 4.7 MOhms | ±5% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
|
|
LTR18EZPJ221RES 220 OHM 5% 1.5W 1206 WIDE |
1,450 |
|
Datasheet | LTR | Wide 1206 (3216 Metric), 0612 | Tape & Reel (TR) | Active | 220 Ohms | ±5% | 1.5W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0612 (1632 Metric) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.026" (0.65mm) | 2 | - |
|
|
ESR18EZPJ301RES 300 OHM 5% 3/4W 1206 |
1,306 |
|
Datasheet | ESR | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 300 Ohms | ±5% | 0.75W, 3/4W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
.jpg)
|
KTR10EZPF2004RES SMD 2M OHM 1% 1/8W 0805 |
135,598 |
|
Datasheet | KTR | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 2 MOhms | ±1% | 0.125W, 1/8W | Thick Film | Automotive AEC-Q200, High Voltage | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|
|
KTR10EZPF4702RES SMD 47K OHM 1% 1/8W 0805 |
85,944 |
|
Datasheet | KTR | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 47 kOhms | ±1% | 0.125W, 1/8W | Thick Film | Automotive AEC-Q200, High Voltage | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|
|
KTR10EZPF2003RES SMD 200K OHM 1% 1/8W 0805 |
59,109 |
|
Datasheet | KTR | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 200 kOhms | ±1% | 0.125W, 1/8W | Thick Film | Automotive AEC-Q200, High Voltage | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|
|
KTR10EZPF4701RES SMD 4.7K OHM 1% 1/8W 0805 |
53,892 |
|
Datasheet | KTR | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 4.7 kOhms | ±1% | 0.125W, 1/8W | Thick Film | Automotive AEC-Q200, High Voltage | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|
|
KTR10EZPF1R00RES SMD 1 OHM 1% 1/8W 0805 |
35,623 |
|
Datasheet | KTR | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 1 Ohms | ±1% | 0.125W, 1/8W | Thick Film | Automotive AEC-Q200, High Voltage | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|
|
KTR10EZPF1501RES SMD 1.5K OHM 1% 1/8W 0805 |
33,588 |
|
Datasheet | KTR | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 1.5 kOhms | ±1% | 0.125W, 1/8W | Thick Film | Automotive AEC-Q200, High Voltage | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|
|
KTR10EZPF2002RES SMD 20K OHM 1% 1/8W 0805 |
33,364 |
|
Datasheet | KTR | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 20 kOhms | ±1% | 0.125W, 1/8W | Thick Film | Automotive AEC-Q200, High Voltage | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|
|
KTR10EZPF3903RES SMD 390K OHM 1% 1/8W 0805 |
32,485 |
|
Datasheet | KTR | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 390 kOhms | ±1% | 0.125W, 1/8W | Thick Film | Automotive AEC-Q200, High Voltage | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|
|
KTR10EZPF5103RES SMD 510K OHM 1% 1/8W 0805 |
28,456 |
|
Datasheet | KTR | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 510 kOhms | ±1% | 0.125W, 1/8W | Thick Film | Automotive AEC-Q200, High Voltage | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|
|
KTR10EZPF2202RES SMD 22K OHM 1% 1/8W 0805 |
25,408 |
|
Datasheet | KTR | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 22 kOhms | ±1% | 0.125W, 1/8W | Thick Film | Automotive AEC-Q200, High Voltage | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|
|
KTR10EZPF4990RES SMD 499 OHM 1% 1/8W 0805 |
22,169 |
|
Datasheet | KTR | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 499 Ohms | ±1% | 0.125W, 1/8W | Thick Film | Automotive AEC-Q200, High Voltage | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|
|
KTR10EZPF4704RES SMD 4.7M OHM 1% 1/8W 0805 |
19,580 |
|
Datasheet | KTR | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 4.7 MOhms | ±1% | 0.125W, 1/8W | Thick Film | Automotive AEC-Q200, High Voltage | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
