Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PNM1206E5002BST5RES SMD 50K OHM 0.1% 0.4W 1206 |
13,323 |
|
Datasheet | PNM | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 50 kOhms | ±0.1% | 0.4W, 2/5W | Thin Film | Anti-Sulfur, Moisture Resistant, Non-Inductive, Non-Magnetic | ±25ppm/°C | -55°C ~ 155°C | - | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.033" (0.84mm) | 2 | - |
|
PCAN0603E49R9BST5RES SMD 49.9 OHM 0.1% 1/2W 0603 |
11,732 |
|
Datasheet | PCAN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 49.9 Ohms | ±0.1% | 0.5W, 1/2W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 155°C | - | 0603 | 0.064" L x 0.032" W (1.63mm x 0.81mm) | 0.018" (0.46mm) | 2 | - |
|
PCAN0603E1001BST5RES SMD 1K OHM 0.1% 1/2W 0603 |
3,404 |
|
Datasheet | PCAN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 1 kOhms | ±0.1% | 0.5W, 1/2W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 155°C | - | 0603 | 0.064" L x 0.032" W (1.63mm x 0.81mm) | 0.018" (0.46mm) | 2 | - |
|
|
PCAN0603K2R00FST5RES SMD 2 OHM 1% 1/2W 0603 |
3,285 |
|
Datasheet | PCAN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 2 Ohms | ±1% | 0.5W, 1/2W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±100ppm/°C | -55°C ~ 155°C | - | 0603 | 0.064" L x 0.032" W (1.63mm x 0.81mm) | 0.018" (0.46mm) | 2 | - |
|
|
PCAN0805K2R00FST5RES SMD 2 OHM 1% 1W 0805 |
8,275 |
|
Datasheet | PCAN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 2 Ohms | ±1% | 1W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±100ppm/°C | -55°C ~ 155°C | - | 0805 | 0.080" L x 0.050" W (2.03mm x 1.27mm) | 0.018" (0.46mm) | 2 | - |
|
|
PCAN0805E1002BST5RES SMD 10K OHM 0.1% 1W 0805 |
3,452 |
|
Datasheet | PCAN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 10 kOhms | ±0.1% | 1W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 155°C | - | 0805 | 0.080" L x 0.050" W (2.03mm x 1.27mm) | 0.018" (0.46mm) | 2 | - |
|
|
PCAN0805K4R70FST5RES SMD 4.7 OHM 1% 1W 0805 |
1,465 |
|
Datasheet | PCAN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 4.7 Ohms | ±1% | 1W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±100ppm/°C | -55°C ~ 155°C | - | 0805 | 0.080" L x 0.050" W (2.03mm x 1.27mm) | 0.018" (0.46mm) | 2 | - |
|
|
PSR400ITQFL3L00RES 0.003 OHM 1% 5W 3920 |
11,556 |
|
Datasheet | PSR | 3920 (1052 Metric) | Tape & Reel (TR) | Active | 3 mOhms | ±1% | 5W | Metal Element | Automotive AEC-Q200, Current Sense | 0/ +75ppm/°C | -65°C ~ 175°C | AEC-Q200 | 3921 | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.041" (1.05mm) | 2 | - |
|

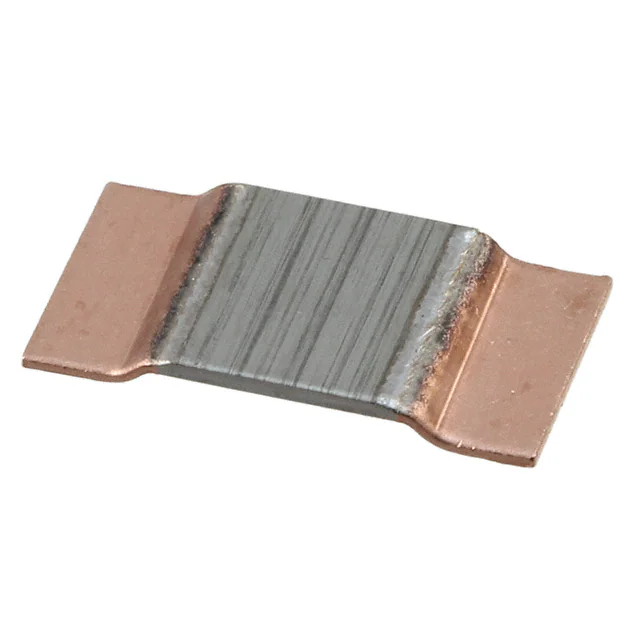

PSR400ITQFF0L50RES 0.0005 OHM 1% 10W 3920 |
5,977 |
|
Datasheet | PSR | 3920 (1052 Metric) | Tape & Reel (TR) | Active | 0.5 mOhms | ±1% | 10W | Metal Element | Automotive AEC-Q200, Current Sense | 0/ +100ppm/°C | -65°C ~ 175°C | AEC-Q200 | 3921 | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.057" (1.45mm) | 2 | - |
|
|
PSR400ITQFH1L00RES 0.001 OHM 1% 8W 3920 |
4,268 |
|
Datasheet | PSR | 3920 (1052 Metric) | Tape & Reel (TR) | Active | 1 mOhms | ±1% | 8W | Metal Element | Automotive AEC-Q200, Current Sense | 0/ +75ppm/°C | -65°C ~ 175°C | AEC-Q200 | 3921 | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.041" (1.05mm) | 2 | - |
|
|
PSR400ITQFJ2L00RES 0.002 OHM 1% 6W 3920 |
2,458 |
|
Datasheet | PSR | 3920 (1052 Metric) | Tape & Reel (TR) | Active | 2 mOhms | ±1% | 6W | Metal Element | Automotive AEC-Q200, Current Sense | 0/ +75ppm/°C | -65°C ~ 175°C | AEC-Q200 | 3921 | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.049" (1.25mm) | 2 | - |
|
PATT0805L2R80FGT1RES SMD 2.8 OHM 1% 1/5W 0805 |
1,898 |
|
Datasheet | PATT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 2.8 Ohms | ±1% | 0.2W, 1/5W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±200ppm/°C | -55°C ~ 250°C | AEC-Q200 | 0805 | 0.080" L x 0.050" W (2.03mm x 1.27mm) | 0.018" (0.46mm) | 2 | - |
|
|
PSR500HTQFB0L10RES 0.0001 OHM 1% 15W 5931 |
1,387 |
|
Datasheet | PSR | Nonstandard | Tape & Reel (TR) | Active | 0.1 mOhms | ±1% | 15W | Metal Element | Automotive AEC-Q200, Current Sense | 150/ +250ppm/°C | -65°C ~ 175°C | AEC-Q200 | 5931 | 0.591" L x 0.305" W (15.00mm x 7.75mm) | 0.083" (2.11mm) | 2 | - |
|
|
PHP01206E75R0BST5RES SMD 75 OHM 0.1% 1W 1206 |
9,801 |
|
Datasheet | PHP | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 75 Ohms | ±0.1% | 1W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 155°C | - | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.033" (0.84mm) | 2 | - |
.jpg)
|
PHP01206E1001BST5RES SMD 1K OHM 0.1% 1W 1206 |
1,208 |
|
Datasheet | PHP | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 1 kOhms | ±0.1% | 1W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 155°C | - | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.033" (0.84mm) | 2 | - |
|
|
PHP01206E2000BST5RES SMD 200 OHM 0.1% 1W 1206 |
5,567 |
|
Datasheet | PHP | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 200 Ohms | ±0.1% | 1W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 155°C | - | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.033" (0.84mm) | 2 | - |
.jpg)
|
M55342E06B1B00RT5RES SMD 1K OHM 0.1% 0.15W 0705 |
2,613 |
|
Datasheet | Military, MIL-PRF-55342, RM0705 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 1 kOhms | ±0.1% | 0.15W | Thin Film | Military, Non-Inductive | ±25ppm/°C | -55°C ~ 150°C | - | 0705 | 0.080" L x 0.050" W (2.03mm x 1.27mm) | 0.033" (0.84mm) | 2 | R (0.01%) |
|
|
M55342E06B4B99RT5RES SMD 4.99KOHM 0.1% 0.15W 0805 |
1,460 |
|
Datasheet | Military, MIL-PRF-55342, RM0705 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 4.99 kOhms | ±0.1% | 0.15W | Thin Film | Military, Non-Inductive | ±25ppm/°C | -55°C ~ 150°C | - | 0705 | 0.080" L x 0.050" W (2.03mm x 1.27mm) | 0.033" (0.84mm) | 2 | R (0.01%) |
|
|
M55342E06B10B0RT5RES SMD 10K OHM 0.1% 0.15W 0705 |
214 |
|
Datasheet | Military, MIL-PRF-55342, RM0705 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 10 kOhms | ±0.1% | 0.15W | Thin Film | Military, Non-Inductive | ±25ppm/°C | -55°C ~ 150°C | - | 0705 | 0.080" L x 0.050" W (2.03mm x 1.27mm) | 0.033" (0.84mm) | 2 | R (0.01%) |
|
GMR320HJBFA10L0RES 10M OHM 1% 10W 2817 |
7,557 |
|
Datasheet | GMR | 2817 (7142 Metric) | Tape & Reel (TR) | Active | 10 mOhms | ±1% | 10W | Metal Element | Current Sense | ±25ppm/°C | -65°C ~ 170°C | - | 2817 | 0.280" L x 0.165" W (7.10mm x 4.20mm) | 0.022" (0.55mm) | 2 | - |
