Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C1812C471JCGACTUCAP CER 470PF 500V NP0 1812 |
1,212 |
|
Datasheet | SMD Comm C0G HV | Tape & Reel (TR) | Active | 470 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
|
C1808C101KHGAC7800CAP CER 100PF 3KV C0G/NP0 1808 |
1,800 |
|
Datasheet | SMD Comm C0G HV | Tape & Reel (TR) | Active | 100 pF | ±10% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.069" (1.75mm) | - | - |
|
VJ0805D271FXPAJCAP CER 270PF 250V NP0 0805 |
28,498 |
|
Datasheet | VJ HIFREQ | Tape & Reel (TR) | Active | 270 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
C1812C223JAGACTUCAP CER 0.022UF 250V C0GNP0 1812 |
1,880 |
|
Datasheet | SMD Comm C0G | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
|
|
C1812C222KDGACTUCAP CER 2200PF 1KV C0G/NP0 1812 |
1,200 |
|
Datasheet | SMD Comm C0G HV | Tape & Reel (TR) | Active | 2200 pF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
C331C472KGR5TACAP CER 4700PF 2KV X7R RADIAL |
250 |
|
Datasheet | GoldMax 300 Comm X7R HV | Bulk | Active | 4700 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.250" W (7.62mm x 6.35mm) | 0.360" (9.14mm) | - | 0.250" (6.35mm) | Formed Leads |
|
M39014/02-1298VCAP CER 10000PF 200V BX RADIAL |
258 |
|
Datasheet | Military, MIL-PRF-39014, CKR06 | Bag | Active | 10000 pF | ±10% | 200V | BX | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | Radial | 0.290" L x 0.090" W (7.37mm x 2.29mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
|
VJ1111D4R7CXEQJHTCAP CER 4.7PF 500V C0G/NP0 1111 |
4,172 |
|
Datasheet | VJ HIFREQ HT | Tape & Reel (TR) | Active | 4.7 pF | ±0.25pF | 500V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.117" L x 0.110" W (2.98mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
-1,80mm-C-Series.jpg)
|
C1825C474KARAC7800CAP CER 0.47UF 250V X7R 1825 |
3,426 |
|
Datasheet | SMD Comm X7R Tip-Ring | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.057" (1.45mm) | - | - |
|
|
C1825C683KFRAC7800CAP CER 0.068UF 1.5KV X7R 1825 |
1,550 |
|
Datasheet | SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.068 µF | ±10% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.106" (2.70mm) | - | - |
|
|
C1812C332JCGACTUCAP CER 3300PF 500V NP0 1812 |
960 |
|
Datasheet | SMD Comm C0G HV | Tape & Reel (TR) | Active | 3300 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
VJ1206A332FXBATCAP CER 3300PF 100V C0G/NP0 1206 |
2,304 |
|
Datasheet | VJ | Tape & Reel (TR) | Active | 3300 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.067" (1.70mm) | - | - |
|
CCR75CG101JRCAP CER 100PF 100V 5% AXIAL |
215 |
|
Datasheet | Military, MIL-PRF-20, CCR75 | Bulk | Active | 100 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | Axial | 0.090" Dia x 0.160" L (2.29mm x 4.06mm) | - | - | - | Straight |
|
|
C1812C391JZGACTUCAP CER 390PF 2.5KV C0G/NP0 1812 |
2,041 |
|
Datasheet | SMD Comm C0G HV | Tape & Reel (TR) | Active | 390 pF | ±5% | 2500V (2.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
|
C1812C561KFGACTUCAP CER 560PF 1.5KV C0G/NP0 1812 |
933 |
|
Datasheet | SMD Comm C0G HV | Tape & Reel (TR) | Active | 560 pF | ±10% | 1500V (1.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.055" (1.40mm) | - | - |
|

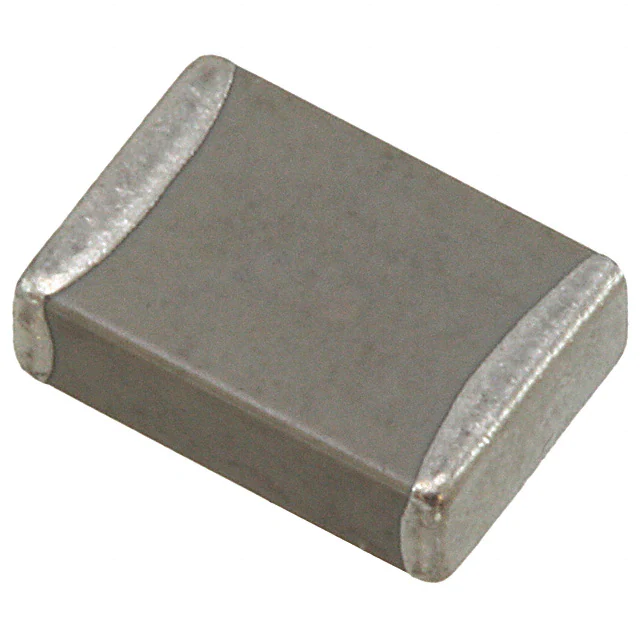

CDR34BX104AKUS7185CAP CER 0.1UF 50V BX 1812 |
260 |
|
Datasheet | Military, MIL-PRF-55681, CDR34 | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 50V | BX | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.059" (1.50mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812X103KDRACAUTOCAP CER 10000PF 1KV X7R 1812 |
1,442 |
|
Datasheet | SMD Auto X7R HV Flex | Tape & Reel (TR) | Active | 10000 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.061" (1.55mm) | - | - |
-4,70x2,00x2,15mm.jpg)
|
C1808C100JHGAC7800CAP CER 10PF 3KV C0G/NP0 1808 |
2,102 |
|
Datasheet | SMD Comm C0G HV | Tape & Reel (TR) | Active | 10 pF | ±5% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.069" (1.75mm) | - | - |
.jpg)
|
C1812X223KDRACAUTOCAP CER 0.022UF 1KV X7R 1812 |
1,213 |
|
Datasheet | SMD Auto X7R HV Flex | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
|
C1808C201JZGACTUCAP CER 200PF 2.5KV C0G/NP0 1808 |
678 |
|
Datasheet | SMD Comm C0G HV | Tape & Reel (TR) | Active | 200 pF | ±5% | 2500V (2.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.085" (2.15mm) | - | - |
