Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C0805T105K4RCLTUCAP CER 1UF 16V X7R 0805 |
7,463 |
|
Datasheet | SMD COTS X7R | Tape & Reel (TR) | Active | 1 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | COTS | High Reliability, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
|
VJ1210Y223KXGAT5ZCAP CER 0.022UF 1KV X7R 1210 |
16,200 |
|
Datasheet | VJ HVArc Guard™ | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.067" (1.70mm) | - | - |
|

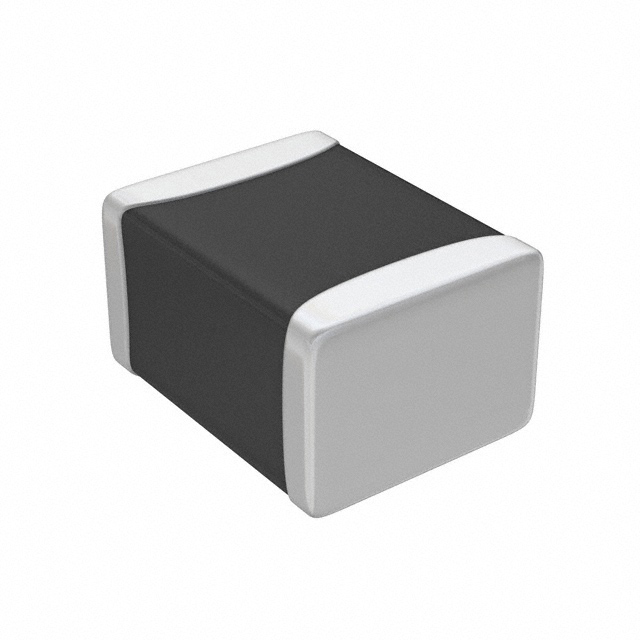

C1210X475K5RACAUTOCAP CER 4.7UF 50V X7R 1210 |
2,027 |
|
Datasheet | SMD Auto X7R Flex | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.110" (2.80mm) | - | - |
-1,50mm.jpg)
|
CDR33BX104AKWS7185CAP CER 0.1UF 50V BX 1210 |
12,858 |
|
Datasheet | Military, MIL-PRF-55681, CDR33 | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 50V | BX | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.059" (1.50mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812C101JHGAC7800CAP CER 100PF 3KV C0G/NP0 1812 |
8,037 |
|
Datasheet | SMD Comm C0G HV | Tape & Reel (TR) | Active | 100 pF | ±5% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
|
C1210X106K3RACTUCAP CER 10UF 25V X7R 1210 |
17,839 |
|
Datasheet | SMD Comm X7R Flex | Tape & Reel (TR) | Active | 10 µF | ±10% | 25V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.110" (2.80mm) | - | - |
|
VJ2220Y103KXUSTX2CAP CER 10000PF 250VAC X7R 2220 |
11,177 |
|
Datasheet | VJ Safety | Tape & Reel (TR) | Active | 10000 pF | ±10% | 250VAC | X7R | -55°C ~ 125°C | - | X2 | Safety | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - | 0.086" (2.18mm) | - | - |
|
|
C0805T225K4RALTUCAP CER 2.2UF 16V X7R 0805 |
2,602 |
|
Datasheet | SMD COTS X7R | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | COTS | High Reliability, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
|
|
VJ2220Y104KXEATCAP CER 0.1UF 500V X7R 2220 |
4,521 |
|
Datasheet | VJ | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 500V | X7R | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - | 0.086" (2.18mm) | - | - |
|
|
C2220C223KGRACTUCAP CER 0.022UF 2KV X7R 2220 |
3,898 |
|
Datasheet | SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
-2,70mm-C-Series.jpg)
|
C2220C223KGRACAUTOCAP CER 2220 22NF 2000V X7R 10% |
1,820 |
|
Datasheet | SMD Auto X7R HV | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.106" (2.70mm) | - | - |
|
|
VJ2220Y332KXUSTX1CAP CER 3300PF 250VAC X7R 2220 |
2,006 |
|
Datasheet | VJ Safety | Tape & Reel (TR) | Active | 3300 pF | ±10% | 250VAC | X7R | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - | 0.086" (2.18mm) | - | - |
|
|
C2220X224KBRACTUCAP CER 0.22UF 630V X7R 2220 FLE |
3,491 |
|
Datasheet | SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 630V | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | - | 0.071" (1.80mm) | - | - |
|
|
VJ2220Y102KXUSTX1CAP CER |
3,131 |
|
Datasheet | VJ Safety | Tape & Reel (TR) | Active | 1000 pF | ±10% | 250VAC | X7R | -55°C ~ 125°C | Low Dissipation Factor | X1, Y2 | Safety | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - | 0.086" (2.18mm) | - | - |
|
C2220X472KHRACAUTOCAP CER 4700PF 3KV X7R 2220 |
1,818 |
|
Datasheet | SMD Auto X7R HV Flex | Tape & Reel (TR) | Active | 4700 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | - | 0.061" (1.55mm) | - | - |
.JPG)
|
HV1812Y471KXMATHVCAP CER 470PF 5KV X7R 1812 |
26,421 |
|
Datasheet | HV | Tape & Reel (TR) | Active | 470 pF | ±10% | 5000V (5kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.106" (2.70mm) | - | - |
|
|
C1812C271JZGACTUCAP CER 270PF 2.5KV C0G/NP0 1812 |
987 |
|
Datasheet | SMD Comm C0G HV | Tape & Reel (TR) | Active | 270 pF | ±5% | 2500V (2.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
|
C2225C105KARACTUCAP CER 1UF 250V X7R 2225 |
11,521 |
|
Datasheet | SMD Comm X7R Tip-Ring | Tape & Reel (TR) | Active | 1 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.061" (1.55mm) | - | - |
|
C1210X223JDGACAUTOCAP CER 1210 22NF 1000VDC C0G |
1,548 |
|
Datasheet | SMD Auto C0G HV Flex | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.110" (2.80mm) | - | - |
|
|
C1812C181JHGACTUCAP CER 180PF 3KV C0G/NP0 1812 |
1,190 |
|
Datasheet | SMD Comm C0G HV | Tape & Reel (TR) | Active | 180 pF | ±5% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
