Bipolar RF Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Voltage - Collector Emitter Breakdown (Max) | Frequency - Transition | Noise Figure (dB Typ @ f) | Gain | Power - Max | DC Current Gain (hFE) (Min) @ Ic, Vce | Current - Collector (Ic) (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AT-41532-TR2GRF TRANS NPN 12V SC70-3 |
4,109 |
|
- |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | NPN | 12V | - | 1dB ~ 1.9dB @ 900MHz ~ 2.4GHz | 9dB ~ 15.5dB | 225mW | 30 @ 5mA, 5V | 50mA | 150°C (TJ) | - | - | Surface Mount | SC-70-3 |
|
AT-41486-TR1GRF TRANS NPN 12V 8GHZ 86 PLASTIC |
5,346 |
|
Datasheet | - | SOT-86 | Tape & Reel (TR) | Obsolete | NPN | 12V | 8GHz | 1.4dB ~ 3dB @ 1GHz ~ 4GHz | 9dB ~ 18dB | 500mW | 30 @ 10mA, 8V | 60mA | 150°C (TJ) | - | - | Surface Mount | 86 Plastic |
|

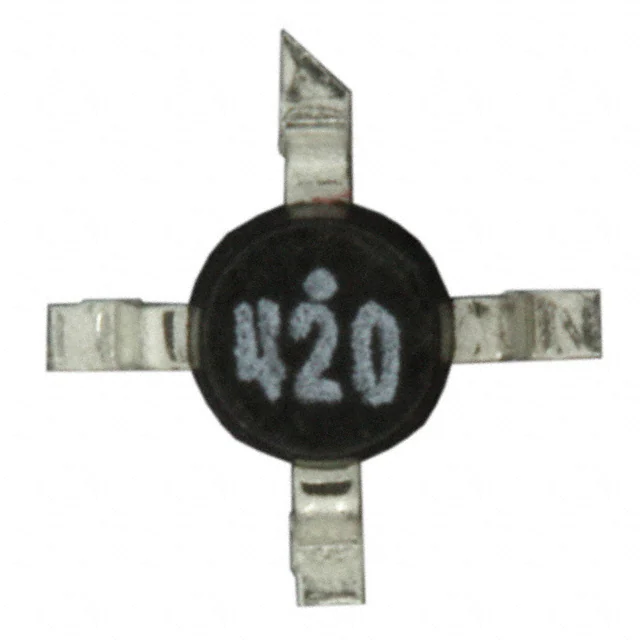

AT-42086-TR1GRF TRANS NPN 12V 8GHZ 86 PLASTIC |
4,406 |
|
Datasheet | - | SOT-86 | Tape & Reel (TR) | Obsolete | NPN | 12V | 8GHz | 1.9dB ~ 3.5dB @ 2GHz ~ 4GHz | 9dB ~ 13dB | 500mW | 30 @ 35mA, 8V | 80mA | 150°C (TJ) | - | - | Surface Mount | 86 Plastic |
|
|
AT-42036-TR1GRF TRANS NPN 12V 8GHZ 36 MICRO X |
3,990 |
|
Datasheet | - | 4-SMD (36 micro-X) | Tape & Reel (TR) | Obsolete | NPN | 12V | 8GHz | 2dB ~ 3dB @ 2GHz ~ 4GHz | 10dB ~ 13.5dB | 600mW | 30 @ 35mA, 8V | 80mA | 150°C (TJ) | - | - | Surface Mount | 36 micro-X |
|
|
AT-41586-TR1GRF TRANS NPN 12V 8GHZ 86 PLASTIC |
4,735 |
|
Datasheet | - | SOT-86 | Tape & Reel (TR) | Obsolete | NPN | 12V | 8GHz | 1.4dB ~ 3dB @ 1GHz ~ 4GHz | 8dB ~ 17dB | 500mW | 30 @ 10mA, 8V | 60mA | 150°C (TJ) | - | - | Surface Mount | 86 Plastic |
|
AT-31011-TR1GRF TRANS NPN 5.5V SOT143 |
9,705 |
|
- |
- | TO-253-4, TO-253AA | Tape & Reel (TR) | Obsolete | NPN | 5.5V | - | 0.9dB ~ 1.2dB @ 900MHz | 11dB ~ 13dB | 150mW | 70 @ 1mA, 2.7V | 16mA | 150°C (TJ) | - | - | Surface Mount | SOT-143 |
|
|
AT-30511-TR1GRF TRANS NPN 5.5V SOT143 |
8,319 |
|
Datasheet | - | TO-253-4, TO-253AA | Tape & Reel (TR) | Obsolete | NPN | 5.5V | - | 1.1dB ~ 1.4dB @ 900MHz | 14dB ~ 16dB | 100mW | 70 @ 1mA, 2.7V | 8mA | 150°C (TJ) | - | - | Surface Mount | SOT-143 |
|
AT-31033-TR1GRF TRANS NPN 5.5V SOT23 |
2,483 |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 5.5V | - | 0.9dB ~ 1.2dB @ 900MHz | 9dB ~ 11dB | 150mW | 70 @ 1mA, 2.7V | 16mA | 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
AT-30533-TR1GRF TRANS NPN 5.5V SOT23 |
9,456 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 5.5V | - | 1.1dB ~ 1.4dB @ 900MHz | 11dB ~ 13dB | 100mW | 70 @ 1mA, 2.7V | 8mA | 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
BF517E6327HTSA1TRANS NPN 15V 0.025A SOT23 |
5,832 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 15V | 2.5GHz | 3.5dB @ 800MHz | 13dB | 280mW | 40 @ 2mA, 1V | 25mA | 150°C (TJ) | - | - | Surface Mount | PG-SOT23 |
|
|
BF 775 E6327RF TRANS NPN 15V 5GHZ SOT23-3 |
6,792 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 15V | 5GHz | 1.4dB ~ 2dB @ 900MHz ~ 1.8GHz | 10.5dB ~ 16dB | 280mW | 70 @ 15mA, 8V | 45mA | 150°C (TJ) | - | - | Surface Mount | PG-SOT23 |
|
BF799WE6327BTSA1RF TRANS NPN 20V 800MHZ SOT323-3 |
6,463 |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | NPN | 20V | 800MHz | 3dB @ 100MHz | - | 280mW | 40 @ 20mA, 10V | 35mA | 150°C (TJ) | - | - | Surface Mount | PG-SOT323 |
|
BFP 540F E6327RF TRANS NPN 5V 30GHZ 4TSFP |
9,942 |
|
Datasheet | - | 4-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | NPN | 5V | 30GHz | 0.9dB ~ 1.4dB @ 1.8GHz | 20dB | 250mW | 50 @ 20mA, 3.5V | 80mA | 150°C (TJ) | - | - | Surface Mount | 4-TSFP |
|
|
BFP 620F E7764RF TRANS NPN 2.8V 65GHZ 4TSFP |
4,319 |
|
Datasheet | - | 4-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | NPN | 2.8V | 65GHz | 0.7dB ~ 1.3dB @ 1.8GHz ~ 6GHz | 21dB | 185mW | 110 @ 50mA, 1.5V | 80mA | 150°C (TJ) | - | - | Surface Mount | 4-TSFP |
|
BFQ 19S E6327RF TRANS NPN 15V 5.5GHZ SOT89 |
5,773 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Obsolete | NPN | 15V | 5.5GHz | 1.8dB ~ 3dB @ 900MHz ~ 1.8Ghz | 7dB ~ 11.5dB | 1W | 70 @ 70mA, 8V | 210mA | 150°C (TJ) | - | - | Surface Mount | PG-SOT89 |
|
BFR 740L3 E6327RF TRANS NPN 4.7V 42GHZ TSLP-3 |
5,906 |
|
Datasheet | - | SC-101, SOT-883 | Tape & Reel (TR) | Obsolete | NPN | 4.7V | 42GHz | 0.5dB ~ 0.8dB @ 1.8GHz ~ 6Ghz | 24dB | 160mW | 160 @ 25mA, 3V | 30mA | 150°C (TJ) | - | - | Surface Mount | PG-TSLP-3 |
|
|
BFR 949L3 E6327RF TRANS NPN 10V 9GHZ TSLP-3-1 |
2,210 |
|
Datasheet | - | SC-101, SOT-883 | Tape & Reel (TR) | Obsolete | NPN | 10V | 9GHz | 1dB ~ 2.5dB @ 1GHz | 21.5dB | 250mW | 100 @ 5mA, 6V | 50mA | 150°C (TJ) | - | - | Surface Mount | PG-TSLP-3-1 |
|
|
BFS 17P E6433RF TRANS NPN 15V 1.4GHZ SOT23-3 |
7,335 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | NPN | 15V | 1.4GHz | 3.5dB ~ 5dB @ 800MHz | - | 280mW | 40 @ 2mA, 1V | 25mA | 150°C (TJ) | - | - | Surface Mount | PG-SOT23 |
|
|
BFS17WE6327HTSA1RF TRANS NPN 15V 1.4GHZ SOT323-3 |
4,044 |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | NPN | 15V | 1.4GHz | 3.5dB ~ 5dB @ 800MHz | - | 280mW | 40 @ 2mA, 1V | 25mA | 150°C (TJ) | - | - | Surface Mount | PG-SOT323 |
|
|
BFR750L3RHE6327XTSA1RF TRANS NPN 4.7V 37GHZ TSLP-3 |
4,215 |
|
Datasheet | - | SC-101, SOT-883 | Tape & Reel (TR) | Obsolete | NPN | 4.7V | 37GHz | 0.6dB ~ 1.1dB @ 1.8GHz ~ 6GHz | 21dB | 360mW | 160 @ 60mA, 3V | 90mA | 150°C (TJ) | - | - | Surface Mount | PG-TSLP-3 |
