Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
500D474M450BB2ACAP ALUM 0.47UF 20% 450V AXIAL |
344 |
|
Datasheet | 500D | Bulk | Discontinued at Digi-Key | 0.47 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -20°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.248" Dia x 0.689" L (6.30mm x 17.50mm) | - | - | Through Hole | |
|
PEG124PL347VQL1CAP ALUM 470UF 20% 100V AXIAL TH |
0 |
|
Datasheet | PEG124 | Tray | Discontinued at Digi-Key | 470 µF | ±20% | 100 V | 210mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 904 mA @ 100 Hz | 1.9 A @ 5 kHz | - | - | 0.787" Dia (20.00mm) | 1.811" (46.00mm) | - | Through Hole | |
|
PEH506YCB3120M2CAP ALUM SNAP-IN 85C |
0 |
|
Datasheet | PEH506 | Tray | Active | 120 µF | ±20% | 450 V | 800mOhm @ 100Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | 4.2 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
PEV227HLL4430QE4CAP ALUM 4300UF 25V SMD |
166 |
|
Datasheet | PEV227 | Tray | Active | 4300 µF | -10%, +30% | 25 V | 37mOhm @ 100Hz | 8400 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 6.79 A @ 100 Hz | 20.176 A @ 100 kHz | - | - | 0.748" L x 0.748" W (19.00mm x 19.00mm) | 1.181" (30.00mm) | 1.102" L x 1.102" W (28.00mm x 28.00mm) | Surface Mount | |
|
|
ALC40A152CC100CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet | ALC40 | Tray | Active | 1.5 mF | ±20% | 100 V | 195mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 100 Hz | 2.44 A @ 10 kHz | 151 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
500D475M250DC2CAP ALUM 4.7UF 20% 250V AXIAL TH |
155 |
|
Datasheet | 500D | Bulk | Discontinued at Digi-Key | 4.7 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.374" Dia x 0.807" L (9.50mm x 20.50mm) | - | - | Through Hole | |
|

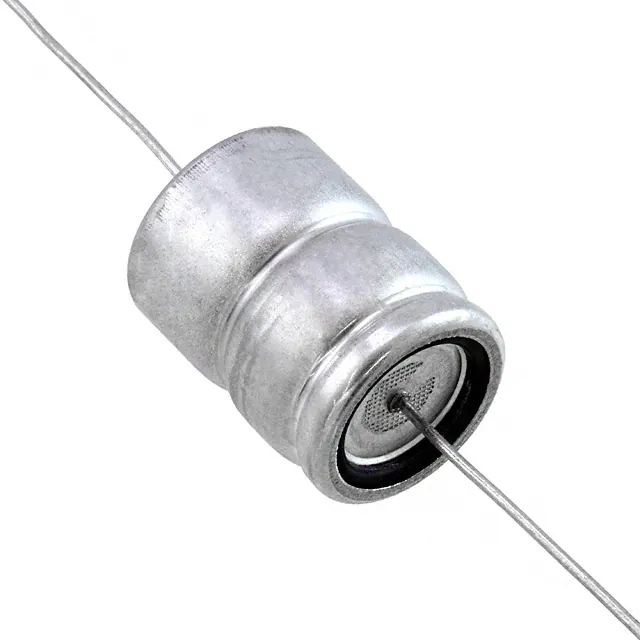

PEG226MH3470QE1CAP ALUM 470UF 63V AXIAL TH |
0 |
|
Datasheet | PEG226 | Bulk | Discontinued at Digi-Key | 470 µF | -10%, +30% | 63 V | 125mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 1.925 A @ 100 Hz | - | - | - | 0.787" Dia x 1.161" L (20.00mm x 29.50mm) | - | - | Through Hole | |
|
ALC80A271CD400CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet | ALC80 | Bulk | Active | 270 µF | ±20% | 400 V | 448.4mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 100 Hz | 5.14 A @ 10 kHz | 229 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
PEG130KH4200QL1CAP ALUM 2000UF 40V AXIAL TH |
160 |
|
Datasheet | PEG130 | Bulk | Discontinued at Digi-Key | 2000 µF | -10%, +30% | 40 V | 59mOhm @ 100Hz | 37000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.44 A @ 100 Hz | - | - | - | 0.787" Dia x 1.142" L (20.00mm x 29.00mm) | - | - | Through Hole | |
|
TVA1501-E3CAP ALUM 4UF 250V AXIAL TH |
301 |
|
Datasheet | TVA ATOM® | Bulk | Discontinued at Digi-Key | 4 µF | - | 250 V | - | - | -20°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.375" Dia x 0.812" L (9.52mm x 20.62mm) | - | - | Through Hole | |
|
TVA1504CAP ALUM 10UF 250V AXIAL TH |
146 |
|
Datasheet | TVA ATOM® | Bulk | Discontinued at Digi-Key | 10 µF | - | 250 V | - | - | -20°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.375" Dia x 1.250" L (9.53mm x 31.75mm) | - | - | Through Hole | |
|
|
TVA1503CAP ALUM 8UF 250V AXIAL TH |
346 |
|
Datasheet | TVA ATOM® | Bulk | Discontinued at Digi-Key | 8 µF | - | 250 V | - | - | - | Polar | - | Audio | - | - | - | - | - | - | - | Through Hole | |
|
|
TVA1701CAP ALUM 2UF 450V AXIAL TH |
326 |
|
Datasheet | TVA ATOM® | Bulk | Discontinued at Digi-Key | 2 µF | - | 450 V | - | - | -20°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.375" Dia x 1.250" L (9.53mm x 31.75mm) | - | - | Through Hole | |
|
|
PEG124PF310VQL1CAP ALUM AXL GEN PUR 105C |
724 |
|
Datasheet | PEG124 | Box | Discontinued at Digi-Key | 100 µF | -10%, +30% | 100 V | 700mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 354 mA @ 100 Hz | 980 mA @ 5 kHz | - | - | 0.630" Dia x 1.142" L (16.00mm x 29.00mm) | - | - | Through Hole | |
|
PEG225KF4120ME1CAP ALUM 1200UF 20% 40V AXIAL TH |
1 |
|
Datasheet | PEG225 | Bulk | Obsolete | 1200 µF | ±20% | 40 V | 80mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.03 A @ 100 Hz | 5.8 A @ 5 kHz | - | - | 0.630" Dia x 1.051" L (16.00mm x 26.70mm) | - | - | Through Hole | |
|
500D156M250EF2CAP ALUM 15UF 20% 250V AXIAL TH |
354 |
|
Datasheet | 500D | Bulk | Discontinued at Digi-Key | 15 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.433" Dia x 1.260" L (11.00mm x 32.00mm) | - | - | Through Hole | |
|
PEG130ML4180QL1CAP ALUM 1800UF 63V AXIAL TH |
938 |
|
Datasheet | PEG130 | Bulk | Discontinued at Digi-Key | 1800 µF | -10%, +30% | 63 V | 51mOhm @ 100Hz | 37000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 100 Hz | - | - | - | 0.787" Dia x 1.811" L (20.00mm x 46.00mm) | - | - | Through Hole | |
|
ELG688M063AT4AACAP ALUM 6800UF 20% 63V SNAP TH |
0 |
|
Datasheet | ELG | Bulk | Active | 6800 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.65 A @ 120 Hz | 4.234 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
500D106F300EH2ACAP ALUM 10UF 300V AXIAL TH |
329 |
|
Datasheet | 500D | Bulk | Discontinued at Digi-Key | 10 µF | - | 300 V | - | 2000 Hrs @ 85°C | -20°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.433" Dia x 1.496" L (11.00mm x 38.00mm) | - | - | Through Hole | |
|
|
TVA1442.5CAP ALUM 40UF 200V AXIAL TH |
191 |
|
Datasheet | TVA ATOM® | Bulk | Discontinued at Digi-Key | 40 µF | - | 200 V | - | - | - | Polar | - | Audio | - | - | - | - | - | - | - | Through Hole |
